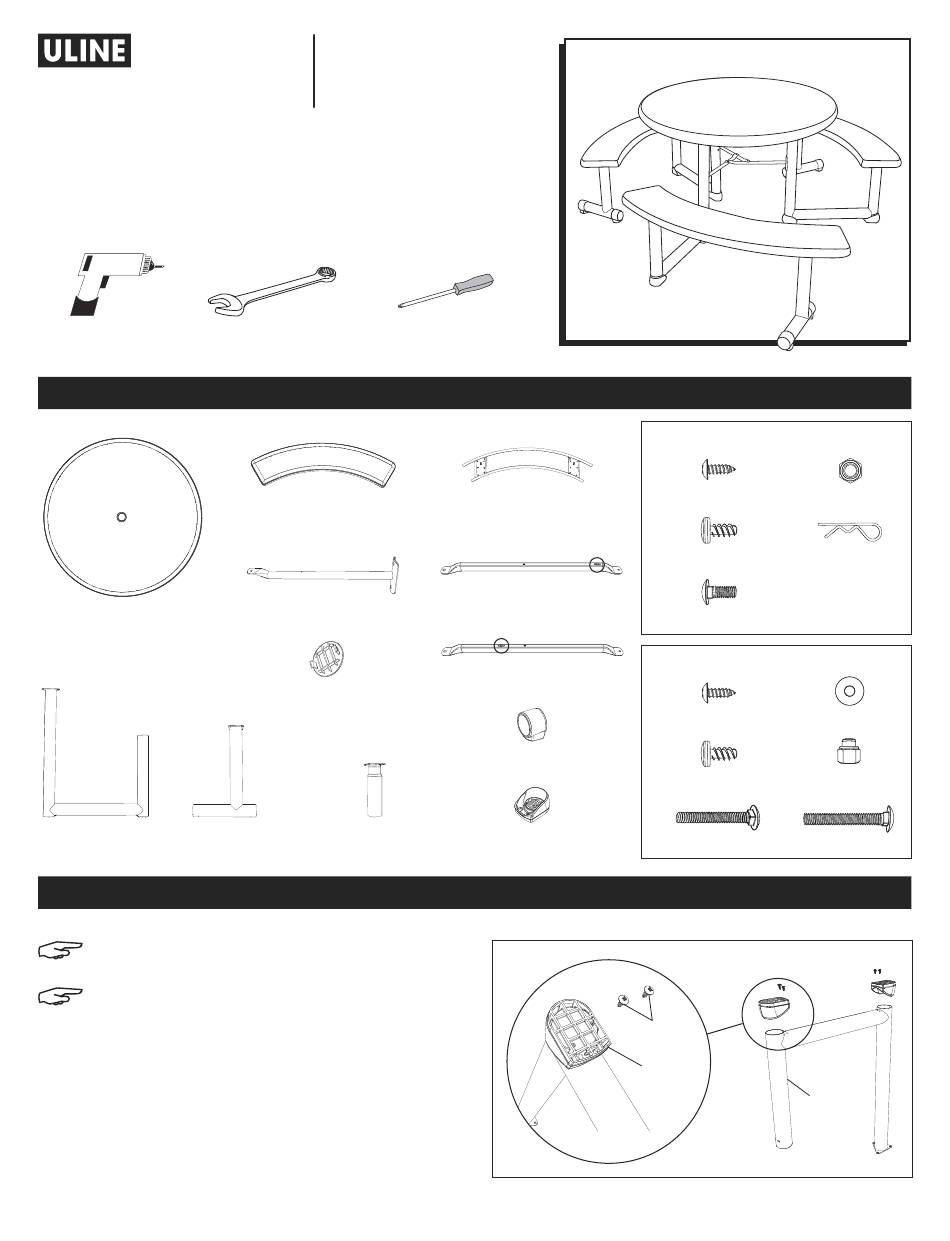

U-Line H-5871 Manual

H-5871
SWING-OUT PICNIC
TABLE – 44"
TOOLS NEEDED
Power Drill
Tabletop x 1
Table Leg x 3 Large Bench Leg x 3
NOTE: Two people are required to assemble this
table. Assemble table on level ground.
NOTE: Use hardware BCD for steps 1-7.
1. Turn the three table legs upside down and press
two table leg foot caps onto the bottom as shown.
Secure with two small screws per each foot cap.
(See Figure 1)
PAGE 1 OF 15
1-800-295-5510
uline.com
5/16" Wrench x 2 Phillips Screwdriver
PARTS INCLUDED
Bench x 3
Leg Brace x 3
Table Plug x 1
Small Bench Leg x 3
Bench Frame x 3
Tabletop Support #1 x 3
Tabletop Support #2 x 3
Bench Leg Foot Cap x 6
Table Leg Foot Cap x 6
ASSEMBLY
Figure 1
Para Español, vea páginas 6-10.
Pour le français, consulter les pages 11-15.
Hardware Kit (BCB)
Small Screw x 12
Large Screw x 18 Cotter Key x 3
Small Bolt x 24
Hardware Kit (BCD)
Small Screw x 21
Washers x 3
Large Screw x 6 Cap Nut x 12
35 mm Bolt x 9 38 mm Bolt x 3
Small
Screws
Table Leg
Foot Cap
Table Leg
Nut x 25
0621 IH-5871
