Please read the manual before using the product. The manual and
carton contain important information, please keep them properly
for later references. Failure to follow the instructions in the
manual, it might be dangerous for your child.
In order to improve the product and quality, we may change the
parts of structure, appearance, packing method, assembly method
and function of the product without any notice. When there is any
difference between the manual and the product, please subject to
the actual product. We are sorry for any inconvenience.

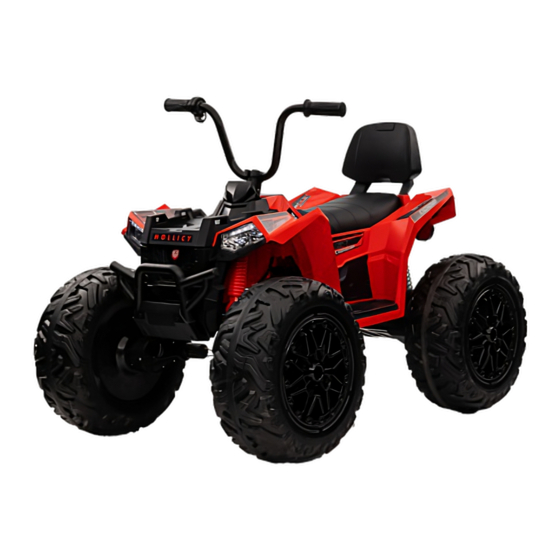

The assembly manual of
battery operated car
Model:SX2128
Products should be assembled by an adult. Protective equipment
should be worn. Not to be used in traffic. Not suitable for children
under 3 years. Choking hazard- small parts. In unassembled
state, contains potentially hazardous small parts. Please keep
out of the reach of small children. Pay attention to the potential
hazards of using the toy in areas other than private grounds.
Executive standard：
EN71-1
EN71-2
EN71-3
EN62115
Advertisement
Related Manuals for HOLLICY SX2128
Summary of Contents for HOLLICY SX2128
- Page 1 EN71-2 battery operated car EN71-3 EN62115 Model:SX2128 Products should be assembled by an adult. Protective equipment should be worn. Not to be used in traffic. Not suitable for children under 3 years. Choking hazard- small parts. In unassembled state, contains potentially hazardous small parts. Please keep out of the reach of small children.
-
Page 2: Parts List
PARTS LIST PARTS NAME PICTURE QTY PARTS NAME PICTURE Car body Backrest Engine cover Wheel 4PCS Front axle Rear axle frame Handle bar 4PCS Wheel cover Front Front motor 2PCS bumper Hardware bag MP3 player Charger Manual... - Page 3 Disclaimer: The pictures in the instructions are for assembly reference only. Please refer to the actual product. Warning: This product is not the vehicle for transportation, it should be used under adult guidance. Parents should ensure that children have taken the safety measures before use. The toy should be used with caution since skill is required to avoid falls or collisions causing injury to the user or third party.
- Page 4 Openable engine hood, convenient for battery maintenance Assembly instruction ● Car assembly should be done by the adults. ● Take care of small parts. To avoid choking hazard, keep children away while assembling. Children under 36 months are prohibited to use. ●...
- Page 5 1. Shock absorber and rear axle assembly Use knife or scissor to cut off the cable tie on the rear of the car body, separate the upper and lower parts. Use provided wrench tool to remove the screw and lock nut from the shock absorber, align shock absorber with iron loops on the car body, then insert the screw and secure with lock nut.
- Page 6 2. Power connection Remove four screws on engine cover, open it and connect two red plugs from two wires. 3. Steering rod and front axle frame assembly Insert steering rod through the car body, disassemble the nuts and washers on two steel bars of front axle frame, align two steel bars with the holes on square steel tube, align the end of the steering rod with the loop on the front axle frame, insert the disassembled washer on two steel bars and secure with...
- Page 7 steel bar steel bar washer and screw square steel tube Cotter pin Washer...
- Page 8 4. Motor assembly Remove the washers and lock nuts from the front axle, insert the motor to the front axle, connect the two plugs from motor and car body. Motor plug connectors 5. Front wheel assembly Attach the front wheel onto front axle, insert the washer, use the provided plastic wrench to tighten the lock nut.
- Page 9 6. Backrest assembly There are two grooves on the back of the seat, insert the backrest to the grooves and push into place. Backrest 7. Rear wheel assembly Attach the rear wheels onto the rear axle, both wheels must be attached at the same time. While attaching the wheels, place the washers and nuts which are disassembled in the step 1 onto the axle.
- Page 10 8. Front bumper assembly Attach the front bumper with the car body and secure it with four screws. Screw 9. Handle bar assembly Insert handle bar to the car body, align the holes on handle bar and steering rod, fasten them with screw and nut. Handle bar Screw...
-
Page 11: Security Warning
FUSE This car has a auto-reset fuse, if the car stops suddenly during driving, it is mainly caused by instantaneous current exceeds, which makes the fuse to trip. Then just stop operating for about 8 seconds, and this fuse can be reset. - Page 12 12. When not using the of product, please cut off the product power, and keep all the switch to "stop" or "off" position. 13. The charger provided is not a toy. It is to be kept away from children. 14. Strictly prohibit using the non-manufacturer provided parts.
- Page 13 2. Operating(function reference diagram) MP3 player Speed switch / Charging port Forward and Power switch backward switch Brake Electric capacity display Big memory Mode Early education/ MP3 socket Story / Pause / Play Music / Volume up Volume down...
- Page 14 CHARGING WAY ●For safety purpose, the charging must be done by adults. The first time you use it, please remove the engine cover, connect two red plugs, use it only after charging 8-12 hours. The car has two charging ways. Charge from dashboard or removable battery box.
-
Page 15: Maintenance And Service
Attention: ·Can only use the charger and battery according to manufacturers regulations. ·Do not mix old and new or different types of batteries. ·The battery terminal should not be short circuit. ·Do not open the battery or charger. ·Do not reverse the battery. ·Before charging, please check whether the charger, battery and plug are ok, if you find any broken parts, you must stop using it immediately. - Page 16 WARNING: This toy contains batteries that are non-replaceable. A recommendation for adult supervision of young children. WARNING: To reduce risk of injury, adult supervision is required. Never use in roadways, near motor vehicles, on or near steep inclines of steps, swimming pools or other bodies of water, always wear shoes, and never allow more than 1 rider.
