PINGHU SHUANGXI BABY CARRIER MANUFACTURE CO.,LTD.
PINGHU BABY CARRIER INDUSTRY CITY, ZHEJIANG, CHINA
Please read the manual before using the product. The manual
and carton contain important information, please keep them
properly for later references. If failure to following the instruction in
the manual, it might be dangerous for your child.
In order to improve the product and quality, we may change the
parts of structure, appearance, packing method, assembly
method and function of the product without any notice. When
there is any different between the manual and the product, please
subject to the actual product. We are sorry for any inconvenience.
Executive standard：
EN71-1
EN71-2
EN71-3
EN62115
Products should be assembled by an adult. Protective equipment should be
worn. Not to be used in traffic. Not suitable for children under 3 years. Choking
hazard- small parts. In unassembled state, contains potentially hazardous small
parts. Please keep out of the reach of small children. Pay attention to the
potential hazards of using the toy in areas other than private grounds.

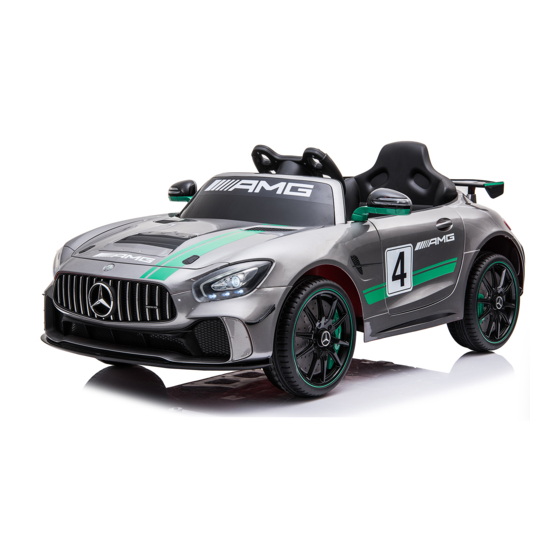

The assembly manual of
battery operated car
Advertisement
Table of Contents
Related Manuals for HOLLICY EN71-1
Summary of Contents for HOLLICY EN71-1
- Page 1 We are sorry for any inconvenience. The assembly manual of battery operated car Executive standard： EN71-1 EN71-2 EN71-3 EN62115 Products should be assembled by an adult. Protective equipment should be worn.
-
Page 2: Assembly Instruction
PARTS LIST Stroller function PARTS NAME PICTURE QTY PARTS NAME PICTURE Pull out the handle and castle wheels out if needed. When not Car body Saddle needed,push them back to save space. Steering mirror wheel Handle spoiler windshield push bar wheel (optional) Charger... - Page 3 1.Front wheel assembly 3. Windshield assembling Turn over the car body, aim the front wheel center to front axle, Aim the hooks under front windshield to the appropriate posi- press the button on the middle of the wheel, then insert and push tion, push down and fix with screws.
- Page 4 7.spoiler assembly 5.Saddle assembly Align two plastic hook with corresponding openings on the car Align spoiler with corresponding openings on the car body, body, push it into place, fix the back of the saddle with a screw. push it into place. spoiler saddle 8.
-
Page 5: Circuit Diagram
CIRCUIT DIAGRAM 9.Battery connection Loose two screws on the bonnet, remove the bonnet, connect two red clip locks of two wires. Removable battery is optional, it can be taken out for charging. (Release the lock, pull outward to take the battery out.) battery connection method White... -
Page 6: Security Warning
SECURITY WARNING 1.The installation and charging of vehicle should be under adult supervision at all times. White 2.This product is limited to the children from 36 to 95months, 30 kg weight limit, please do not overload. 3.This product is ideal for driving on a hard flat surface. 4.It is strictly prohibited in the streets or the road, pot holes, and slopes. - Page 7 USAGE DIRECTION 2. Operating(function reference diagram) Lights switch — press the switch upward Clutch switch —when you want to use push bar, to turn on the lights, press the switch down press the switch upward. When you want to drive 1.
-
Page 8: Remote Control Instruction
Remote control instruction MP3 Optional 1.Before first using, please code Speed indicator first, steps are as following: MP3/ Mode/ Electric capacity display Bluetooth name Remote indicator light (1)Press and hold car select Forward left button , until remote indicator light Bluetooth mode MP3 balance waveform... - Page 9 (1).Put the car on flat ground, don’t adjust the steering wheel, make the steering wheel in middle position, turn on the power. How to remove batteries: Use screwdriver to loosen the (2).When the car has been turned on, adjust the steering wheel to make the wheels in right front position, then make steering wheel to keep still.
-
Page 10: Maintenance And Service
MAINTENANCE AND SERVICE WARNING: 1.Parents should check whether all the parts are perfect before using, like battery, charger, wire, plug, out body and other parts are broken,whether the screw is loose. whether there is potential safety hazard, if found then 1 The toy is to be assembled by an adult. -
Page 11: Troubleshooting
Maintenance method of electronic steering wheel TROUBLESHOOTING Electronic steering wheel is optional, when it has some problem. First match the car and remote control, then follow the steps to solve the problem. If “power” switch is in OFF position 1. Pull the electronic steering wheel potentiometer plug and If the fuse is not functioning properly Car does not driving motor potentiometer plug out ( refer to circuit diagram on... - Page 12 2. Make sure the first step of testing is normal, then turn off the 3. Make sure the second step of testing is normal, then test the power, connect electronic steering wheel potentiometer plug and steering wheel driving motor potentiometer plug as before, turn on the power. Operation Result conclusion...
