Please read the manual before using the product. The manual and
carton contain important information, please keep them properly
for later references. If failure to following the instruction in the
manual, it might be dangerous for your child.
In order to improve the product and quality, we may change the
parts of structure, appearance, packing method, assembly method
and function of the product without any notice. When there is any
difference between the manual and the product, please subject to
the actual product. We are sorry for any inconvenience.

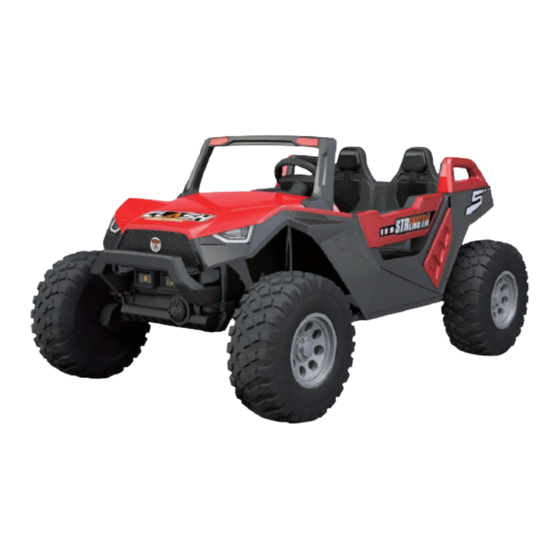

The assembly manual of
battery operated car
Model:SX1928
Products should be assembled by an adult. Protective equipment
should be worn. Not to be used in traffic. Not suitable for children
under 3 years. Choking hazard- small parts. In unassembled
state, contains potentially hazardous small parts. Please keep
out of the reach of small children. Pay attention to the potential
hazards of using the toy in areas other than private grounds.
Executive standard:
EN71-1
EN71-2
EN71-3
EN62115

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SX1928 and is the answer not in the manual?

Questions and answers

al
August 11, 2025

where is the circuit board located on the sx1928

Summary of Contents for HOLLICY SX1928

  • Page 1 The assembly manual of EN71-3 battery operated car EN62115 Model:SX1928 Products should be assembled by an adult. Protective equipment should be worn. Not to be used in traffic. Not suitable for children under 3 years. Choking hazard- small parts. In unassembled state, contains potentially hazardous small parts.
  • Page 2: Parts List

    PARTS LIST PARTS NAME PICTURE QTY PARTS NAME PICTURE QTY Car body Seat Bumper beam Handrail 2PCS Winds hield Front axle Rear axle Steering wheel Front wheel 4PCS Wheel cover 2PCS (with small hole) Rear wheel 2PCS Remote control (with big hole) Front motor MP3 player 2PCS...
  • Page 3: Product Specifications

    Disclaimer: The pictures in this instruction are for assembly reference only. Please refer to the actual product. WARNING: This product is not the vehicle for transportation, it should be used under adult guidance. Parents should ensure that children have taken the safety measures before use. The toy should be used with caution since skill is required to avoid falls or collisions causing injury to the user or third parties.
  • Page 4: Assembly Instruction

    Adjustable seat function Two adjustable spanners are locate under the seat on both sides, hold on them at same time, two hooks now can be released, move the seat until the right position, then release the spanners, hooks pop up and seat be fixed. The seat has a five position adjustment function.
  • Page 5 B. Rear axle assembly 1. Loose the nuts at each end of the axle, pull out the rear axle from rear axle tube. ① rear axle rear axle tube 2.Put the rear axle tube on the right position as shown in picture. ②...
  • Page 6 2.Left and right support assembly 1)Align the support to the car body, connect the screw holes and fix barb with barb groove. 2)Use 4*12 truss head screws to fix them. screw screw hole hole barb barb groove groove 3. Wheels assembly Front wheels assembly Align the front motor with front axle, insert the head of motor into the hole, assembly the sleeve (with small hole), washer, nut and...
  • Page 7 Rear wheels assembly a. First, check whether the rear axle is in the middle of the car, make sure the axle length that extend out on both sides are same. b. Align the rear motor with rear axle, put the head of motor into the hole, assembly the sleeve (with big hole), washer, nut and wheel cover in proper order.
  • Page 8 5.Steering wheel assembly Connect steering wheel wire to the wires coming out of the steering column and match connectors. Align the steering wheel with steering axle, match the holes on steering wheel and steering axle, fix them with a screw and a nut. 6.Windshield holder assembly Insert the windshield...
  • Page 9 8. Battery connection Battery is located under the seat, loose the screws on the battery cover, remove the battery cover from one side, insert the protective device to the red plug which is fix on the car body. Now battery has been connected. A.
  • Page 10: Circuit Diagram

    CIRCUIT DIAGRAM White VBAT...
  • Page 11: Security Warning

    SECURITY WARNING 1.The installation and charging of vehicle should be under adult supervision at all times. 2.This product is limited to the children from 37 to 95 months, 60 kg weight limit, please do not overload. 3.This product is ideal for driving on a hard flat surface. 4.It is strictly prohibited in the streets or the road, pot holes, and slopes.
  • Page 12 Pay attention to the driving environment and driving on the hard flat surface, not the unsafe environment. For example: a.The trenches, the riverside, slope or uneven ground; b.Road or other places for driving and walking; c.The obstruction which is easily hitting and causing injury; d.Other unsafe zones.
  • Page 13 MP3 Optional MP3/ Mode/ Electric capacity display Bluetooth name Bluetooth mode MP3 balance waveform TF card mark U dish mark Battery capacity Flash mode Bluetooth Volume + FLASH Volume – Music Mode switch Story Previous Next Play/ Pause U dish TF card microphone slot MP4 Optional...
  • Page 14: Remote Control Instruction

    Remote control instruction Speed indicator Remote indicator light Forward left backward 3LED 1LED right 2LED The code Stop (car-select key) Speed selection 1.Before first using, please code first, steps are as following: (1)Press and hold car select button , until remote indicator light starts to flash.
  • Page 15 WARNING: 1 . When operating the car, the distance between the car which kid sit in and the remote control which operated by adults should not be more than 10 meters. 2 .The remote is only for adults to use, keep far away from child. 3 .Before using the remote, you must read the instruction manual carefully, and operate the empty car first , only when knowing the way of operation, you can use the remote with kid in the car.
  • Page 16 How to remove batteries: Use screwdriver to loosen the screw on the back of the remote control, open the battery cover and remove batteries, then close the battery cover,and fix with screw. WARNING: -Non-rechargeable batteries are not to be recharged; -Batteries are to be inserted with the correct polarity;...
  • Page 17 Attention: ·Can only use the charger and battery according to manufacturers regulations. ·Do not mix old and new or different types of batteries. ·The battery terminal should not be short circuit. ·Do not open the battery or charger. ·Do not reverse the battery. ·Before charging, please check whether the charger, battery and plug are ok, if you find any broken parts, you must stop using it immediately.
  • Page 18: Maintenance And Service

    MAINTENANCE AND SERVICE 1, Before use, parents should check whether all parts like batteries, charger, wires, plug, outer body and other parts are in good condition, check whether the screws are loose and whether there are potential safety hazards. Any damaged parts founded should be repaired before using.
  • Page 19: Troubleshooting

    TROUBLESHOOTING If “power” switch is in OFF position If the fuse is not functioning properly Car does not If the battery is not connected, check the red and black wires. move or power on If the charger is plugged in, car will not power on. Unplug charger. If the pedal switch is not functioning properly If the wheels stuck and cannot move If the battery is not fully charged.
  • Page 20 PINGHU SHUANGXI BABY CARRIER MANUFACTURE CO.,LTD. PINGHU BABY CARRIER INDUSTRY CITY, ZHEJIANG, CHINA...
