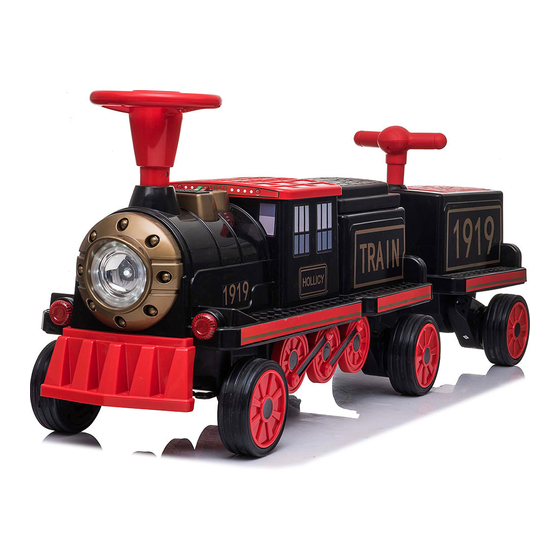

The assembly manual of
battery operated car
Model:SX1919
Products should be assembled by an adult. Protective equipment
should be worn. Not to be used in traffic. Not suitable for children
under 3 years. Choking hazard- small parts. In unassembled
state, contains potentially hazardous small parts. Please keep
out of the reach of small children. Pay attention to the potential
hazards of using the toy in areas other than private grounds.
Executive standard:
EN71-1
EN71-2
EN71-3
EN62115

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SX1919 and is the answer not in the manual?

Questions and answers

Ron Spurlock
June 19, 2025

1818 Train - where is the 6X 30 F@A fuse located? The unit does nothing and the auto reset fuse and battery are good

1 comments:
Mr. Anderson
August 21, 2025

The context does not specify the exact location of the 6X 30 F@A fuse in the HOLLICY SX1919. It only mentions that the car has an auto-reset fuse and provides general safety and maintenance information related to the fuse. Therefore, the exact location cannot be determined from the provided information.

This answer is automatically generated

Kelly
March 20, 2025

Battery not holding a charge

1 comments:
Mr. Anderson
March 20, 2025

The HOLLICY SX1919 battery may not be holding a charge due to several possible reasons:

1. Battery Not Fully Charged – The battery needs to be charged in time after use.
2. Battery Lost Its Capacity – Over time, the battery may lose its ability to hold a charge.
3. Charger Malfunction – If the charger is faulty, the battery may not charge properly.
4. Poor Battery Connection – Ensure the battery is correctly connected to the red plug on the car body.
5. Long Periods Without Charging – If unused for a long time, the battery must be fully charged and recharged monthly to maintain lifespan.

Checking these factors can help determine the cause of the issue.

This answer is automatically generated

Summary of Contents for HOLLICY SX1919

  • Page 1 EN71-2 battery operated car EN71-3 EN62115 Model:SX1919 Products should be assembled by an adult. Protective equipment should be worn. Not to be used in traffic. Not suitable for children under 3 years. Choking hazard- small parts. In unassembled state, contains potentially hazardous small parts. Please keep out of the reach of small children.
  • Page 2: Parts List

    PARTS LIST PARTS NAME PICTURE PARTS NAME PICTURE Steering Car body wheel 2PCS 2PCS Rear wheel 4PCS (optional) Front wheel 6PCS (optional) 2PCS Motor Rear axle (optional) 2PCS 4PCS (optional) 6PCS (optional) 3PCS (optional) (optional) Trailer (optional) (optional) Trailer connection 2PCS 2PCS (optional)
  • Page 3: Product Specifications

    PRODUCT SPECIFICATIONS Battery 6V-4.5AH/12V-7AH/12V-10AH/12V-14AH Main material Suitable age 37-95 Months Weight limit 60kg Product size (900+497+497)X380X545.5mm 3-5KM/Hour Speed Runtime 1-2 hours after charging for 8-12 hours, based on ride on conditions Charger Input AC 110-240V Output DC 12V-1000mA Fuse Auto-reset fuse Parent-child function Put the seat inside the trailer, child can sit on it, turn over the seat, parent can seat and play with child together.
  • Page 4: Assembly Instruction

    Trailer can store battery Pull the cover of the trailer upward and remove the cover, spare battery can be put inside. Then take the cover back. Quick release seat plate, convenient maintenance Unscrew the screws on the side of the red seat plate, remove the plate, it is convenient for internal electrical maintenance.
  • Page 5 1. Front wheel assembly Turn over the car body, insert a washer and the front wheel to front axle, fix with washer, cotter pin and wheel cover. 2. Rear wheel assembly a.First, check whether the rear axle is in the middle of the car, make sure the axle length that extend out on both sides are same.
  • Page 6 3. Steering axle assembly Connect steering wheel wire to the wires coming out of the steering column and match connectors. Insert the steering wheel into the steering column,fix with a screw and a nut. 4. Battery connection Battery is located under the red seat plate, unscrew the screws on the side of the seat, press down the button and remove the seat plate, you can see the battery, insert the protective device to the red plug which is fix on the car body, now battery is connected.
  • Page 7 A. Non-removable battery connection protective device B. Removable battery connection (optional)
  • Page 8 Attention: The following trailer is the optional specification, please assemble as the type you purchased. 5. Trailer assembly Turn over the trailer, insert the axle to the trailer, attach the motor and wheel to the axle, fix with washer, cotton pin and wheel cover. trailer with motor trailer without motor (optional)...
  • Page 9 7. Trailer handrail assembly Insert the trailer handrail to the corresponding openings, push it into place. The installation steps are same if the product has two trailers. FUSE This car has a auto-reset fuse, if the car stops suddenly during driving, it is mainly caused by instantaneous current exceeds ,which makes the fuse to trip.
  • Page 10: Circuit Diagram

    CIRCUIT DIAGRAM White VBAT...
  • Page 11: Security Warning

    SECURITY WARNING 1.The installation and charging of vehicle should be under adult supervision at all times. 2.This product is limited to the children from 37 to 95 months, 100 kg weight limit, please do not overload. 3.This product is ideal for driving on a hard flat surface. 4.It is strictly prohibited in the streets or the road, pot holes, and slopes.
  • Page 12 USAGE DIRECTION 1. Before using it, make sure that all the following works are done. ●Step described in accordance with the instructions to com-plete the installation of the car, the battery plug-in has been connected, the power supply has been switched on. ●Make sure that all the positions which need the screws are fixed tightly.
  • Page 13 MP3 Optional Joke Story Music Poetry English LCD display USB socket TF card MP3 socket Mode Next/volume Play/pause Previous/volume down CHARGING WAY ●For Safety purpose ,the charging must be done by adults. ●Charging port is located on the dashboard, please charge the battery as the instructions below.
  • Page 14: Maintenance And Service

    Attention: ·Can only use the charger and battery according to manufacturers regulations. ·Do not mix old and new or different types of batteries. ·The battery terminal should not be short circuit. ·Do not open the battery or charger. ·Do not reverse the battery. ·Before charging, please check whether the charger, battery and plug are ok, if you find any broken parts, you must stop using it immediately.
  • Page 15: Troubleshooting

    6, A soft cloth must be used to clean the car. Do not use chemical solvents to clean the plastic parts. Do not use soap or water to clean the car. Driving in rainy or snowy weather, water can damage the motor, battery and circuit system.
  • Page 16 PINGHU SHUANGXI BABY CARRIER MANUFACTURE CO.,LTD. PINGHU BABY CARRIER INDUSTRY CITY, ZHEJIANG, CHINA...
