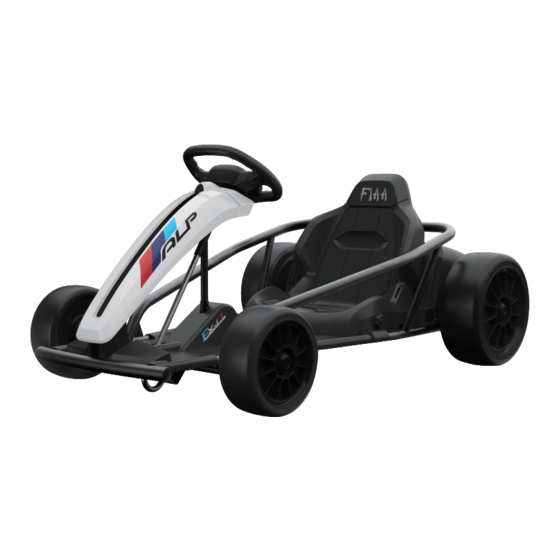

HOLLICY SX1968 Assembly Manual

Battery operated car
Hide thumbs

Advertisement

Table of Contents

Please read the manual before using the product. The manual and
carton contain important information, please keep them properly
for later references. If failure to following the instruction in the
manual, it might be dangerous for your child.
In order to improve the product and quality, we may change the
parts of structure, appearance, packing method, assembly method
and function of the product without any notice. When there is any
difference between the manual and the product, please subject to
the actual product. We are sorry for any inconvenience.
Products should be assembled by an adult. Protective equipment
should be worn. Not to be used in traffic. Not suitable for children
under 3 years. Choking hazard- small parts. In unassembled
state, contains potentially hazardous small parts. Please keep
out of the reach of small children. Pay attention to the potential
hazards of using the toy in areas other than private grounds.
The assembly manual of
battery operated car
Model:SX1968

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SX1968 and is the answer not in the manual?

Questions and answers

Related Manuals for HOLLICY SX1968

Summary of Contents for HOLLICY SX1968

  • Page 1 We are sorry for any inconvenience. The assembly manual of battery operated car Model:SX1968 Products should be assembled by an adult. Protective equipment should be worn. Not to be used in traffic. Not suitable for children under 3 years. Choking hazard- small parts. In unassembled state, contains potentially hazardous small parts.

  • Page 2: Parts List

    PARTS LIST PARTS NAME QTY PARTS NAME PICTURE PICTURE QTY Car body Seat head cover rear axle front wheel (no bulge front axle plastic part) rear wheel Steering (with bulge wheel plastic part) hardware Charger package Manual Disclaimer: The pictures in this instruction are for assembly reference only. Please refer to the actual product.

  • Page 3: Product Specifications

    WARNING: This product is not the vehicle for transportation, it should be used under adult guidance. Parents should ensure that children have taken the safety measures before use. The toy should be used with caution since skill is required to avoid falls or collisions causing injury to the user or third partys.
  • Page 4 Assembly instruction Car assembling should be done by the adults. Take care of small parts. To avoid choking hazard, keep children away while assembling. Children under 36 months are prohibited to use. Please count all the parts carefully before assembling and dispose the plastic bag properly.
  • Page 5 3. front axle assembly Insert the bushings on the top and bottom of the iron tubes respectively, attach the front axle to two iron tubes, insert the bolt from top to bottom, attach a M 10*20 washer to the bolt and insert the cotter pin.
  • Page 6 5. Steering axle assembly ①.Insert the steering axle holder into the car body, fix them with M5*25 screw and M5 lock nut. ②.Insert the steering axle from the bottom to the car body and steering axle holder, until the top of the steering axle extends out the steering axle holder.
  • Page 7 6. Steering wheel assembly Insert the steering wheel to the steering axle, fix them with M5*55 screw and M5 lock nut. 7. Head cover assembly Insert the bottom of head cover to the car base, attach the top of head cover with steering wheel column, fix them with two 4*16 flat head screws.
  • Page 8 8. Seat assembly Attach the seat with seat slot on car body, fix them with 4*16 flat head screws.
  • Page 9 10. Battery connection , Open the rear trunk, connect two red clip locks of two wires, now the battery is connected. FUSE This car has a auto-reset fuse, if the car stops suddenly during driving, it is mainly caused by instantaneous current exceeds ,which makes the fuse to trip.

  • Page 10: Circuit Diagram

    CIRCUIT DIAGRAM...

  • Page 11: Security Warning

    SECURITY WARNING 1.The installation and charging of vehicle should be under adult supervision at all times. 2.This product is limited to the children from 8-12 years old, 70 kg weight limit, please do not overload. 3.This product is ideal for driving on a hard flat surface. 4.It is strictly prohibited in the streets or the road, pot holes, and slopes.
  • Page 12 USAGE DIRECTION 1. Before using it, make sure that all the following works are done. ●Step described in accordance with the instructions to the complete installation of the car, the battery plug-in has been connected, the power supply has been switched on. ●Make sure that all the positions which need the screws are fixed tightly.
  • Page 13 There is a “drift / driving” mode switch on the car, press the drift switch up, so the drift function can be used. Warning: Please make sure the switch is in the disconnected mode, that is the driving mode, it is safe for the beginner. CHARGING WAY ●For Safety purpose ,the charging must be done by adults.

  • Page 14: Maintenance And Service

    How to change batteries: Use screwdriver to loosen the screw on the back of the AA 1.5V steering wheel, remove the battery cover AA 1.5V and install four AA 1.5V alkaline type AA 1.5V batteries according to the diagram AA 1.5V (Batteries are self-provided), then close the battery cover and fix with screw.

  • Page 15: Troubleshooting

    6, A soft cloth must be used to clean the car. Do not use chemical solvents to clean the plastic parts. Do not use soap or water to clean the car. Driving in rainy or snowy weather, water can damage the motor, battery and circuit system.
  • Page 16 PINGHU SHUANGXI BABY CARRIER MANUFACTURE CO.,LTD. PINGHU BABY CARRIER INDUSTRY CITY, ZHEJIANG, CHINA...
