Please read the manual before using the product. The manual and
carton contain important information, please keep them properly
for later references. If failure to following the instruction in the
manual, it might be dangerous for your child.
In order to improve the product and quality, we may change the
parts of structure, appearance, packing method, assembly method
and function of the product without any notice. When there is any
different between the manual and the product, please subject to
the actual product. We are sorry for any inconvenience.

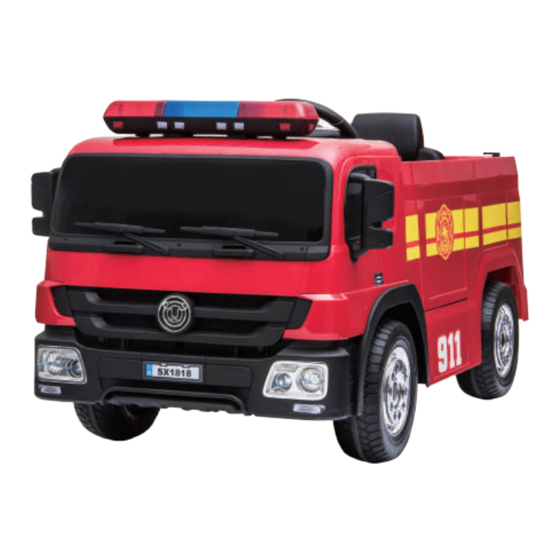

Model:SX1818
Products should be assembled by an adult. Protective equipment
should be worn. Not to be used in traffic. Not suitable for children
under 3 years. Choking hazard- small parts. In unassembled
state, contains potentially hazardous small parts. Please keep
out of the reach of small children. Pay attention to the potential
hazards of using the toy in areas other than private grounds.
The assembly manual of
battery operated car
Executive standard：
EN71-1
EN71-2
EN71-3
EN62115

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SX1818 and is the answer not in the manual?

Questions and answers

Related Manuals for HOLLICY SX1818

Summary of Contents for HOLLICY SX1818

  • Page 1 We are sorry for any inconvenience. The assembly manual of battery operated car Executive standard： Model:SX1818 EN71-1 EN71-2 EN71-3 EN62115 Products should be assembled by an adult. Protective equipment should be worn.

  • Page 2: Parts List

    PARTS LIST PARTS NAME PICTURE QTY PARTS NAME PICTURE Car body Saddle front / rear steering wheel wheel 2PCS mirror Charger water pistol alarm lamp fire extinguisher remote control Instruction PRODUCT SPECIFICATIONS Battery 12V-7AH Main material Suitable age 37-95 Months Weight limit 30KGS Product size...

  • Page 3: Assembly Instruction

    Stroller function There are handle and caster wheels under the car,, rotate them out to take the car like a luggage. When not needed,push them back to save space. Assembly instruction Car assembling should be done by the adults. Take care of small parts. Choking hazard, keep children away while assembling.
  • Page 4 2.Rear wheel assembly Aim the rear wheel center to rear axle, press the button on the middle of the wheel, then insert and push the wheel into place. rear wheel 3.Saddle assembly Turn over the car body, insert two plastic hooks under the saddle with the holes which are on car body, fix the back of saddle with screws.
  • Page 5 4.Steering wheel assembly Insert it into steering column until two pins into place. steering wheel 5.Alarm lamp assembly Connect and match plug connectors in same color,insert alarm lamp into corresponding openings on the car body to fix it. alarm lamp...
  • Page 6 6. Mirror assembly Push mirrors into corresponding openings on the car body to fix it. Mirror Mirror 7.Water pistol assembly Insert water pistol into corresponding openings on rear of car body, hung water can to the hook on left car body. water pistol water can 8.Fire extinguisher assembly...
  • Page 7 9.Battery connection Open the bonnet, connect two red clip locks of two wires. Bonnet charging port battery box Connect two clip locks of red wires. WARINING: This product is not a vehicle for transportation, it should be used under adult guidance.Make sure the children have taken guidance before using.
  • Page 8 FUSE This car has the auto-reset fuse, if the car stops suddenly during driving, it is mainly caused by instantaneous current exceeds ,and make the fuse to trip. Then just stop operating for about 8 seconds, turn on the power again, the fuse can be reset.

  • Page 9: Circuit Diagram

    CIRCUIT DIAGRAM White VBAT...

  • Page 10: Security Warning

    SECURITY WARNING 1.The installation and charging of vehicle should be under adult supervision at all times.The assembly contains potentially dangerous sharp edges or tax ends parts, children are strictly forbidden to operate. 2.This product is limited to the children from 37 to 95months, limited weight is 30 KGS,please do not overload.
  • Page 11 USAGE DIRECTION 1. Before using it, make sure that all the following works are done. ● Step described in accordance with the instructions to complete the installation of the car, the battery plug-in has been connected, the power supply has been switched on. ●...

  • Page 12: Volume Adjustment

    2. Operating(function reference diagram) Parking Reversing low speed forward high speed forward on / off lights music alarm switch lamp Volume adjustment 1.Long hold down “alarm lamp” button for volume down. 2.Long hold down “music” button for volume up. 3.First time to press the "alarm" button, the sounds of alarm will be on, second to press the button, the sounds will be a pause.

  • Page 13: Remote Control Instruction

    Dashboard function central Control pedal Remote control instruction Speed indicator Remote indicator light Forward left backward 3LED 1LED right 2LED The code Stop (car-select key) Speed selection 1.Before first using, please code first, steps are as following: (1)Press and hold car select button , until remote indicator light starts to flash.
  • Page 14 2.Please select the proper speed during the driving. Manual mode or remote mode all can be selected. (1)remote mode: press and hold the speed select button to chose the proper speed. (1 LED: slow speed; 2 LED: middle speed; 3 LED: fast speed.) (2)Manual model: press the high / low speed button on central control to select the speed.
  • Page 15 WARNING: 1 . When operating the car, the distance between the car which kid sit in and the adults operating the remote should not be more than 10 meters. 2 .The remote is only for adults to use, keep far away from child. 3 .Before using the remote, must read the instruction manual carefully, and operate the empty car first , only when knowing the way of operation, you can use the remote with kid in the car.
  • Page 16 How to remove batteries: Use screwdriver to loosen the screw on the back of the remote control, open the battery cover and remove batteries, then close the battery cover,and fix with screw. WARNING: -Non-rechargeable batteries are not to be recharged; -Batteries are to be inserted with the correct polarity;...

  • Page 17: Maintenance And Service

    Attention: ·Can only use the charger and battery according to manufacturers regulations. ·Do not mix old and new or different types of batteries. ·The battery terminal should not be short circuit. ·Do not open the battery or charger. ·Do not reverse the battery. ·Before charging, please check the charger, battery and plug whether are ok, if you find any broken parts, you must stop using it immediately.

  • Page 18: Troubleshooting

    6.Must use the soft cloth to clean the car, do not use chemical solvents to wipe the toy plastic parts, do not use soap and water to clean the car, driving in rainy or snowy weather, water will damage the motor, the vehicle's battery and circuit system.
  • Page 20 PINGHU SHUANGXI BABY CARRIER MANUFACTURE CO.,LTD. PINGHU BABY CARRIER INDUSTRY CITY, ZHEJIANG, CHINA...
