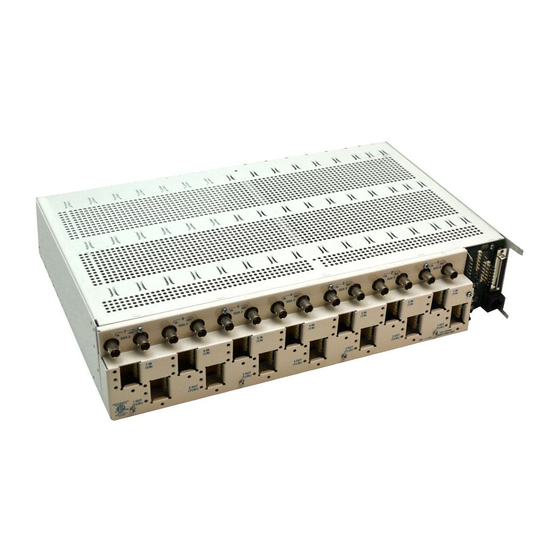

ADTRAN MX2820 Manual

MX2820 LED STATUS FOR ACTIVE CLOCK CARD
Clock Card
ACT
P/N: 1186004L1
CLEI: M3C3L20A_ _
LED STATUS FOR STANDBY CLOCK CARD
CLK
ACT
ACT
1186004
INSTALLATION AND TURNUP
After unpacking the unit, inspect it for damage. If damage is found, file a claim with
the carrier and then contact ADTRAN
This module occupies a Clock Card slot in the MX2820 chassis.
Follow these steps to install the MX2820 Clock Card:
1. Pull the ejector tab into the down position.
2. Gently but firmly push the Clock Card into the selected Clock Card slot.
3. Apply thumb pressure at the top and at the bottom of the unit to ensure a good
seat of the Clock Card into the backplane connector.
4. Push the ejector tab up and closed against the front panel.
Upon installation, the Clock Card begins a self-test. When the self-test is complete,
the LEDs indicate the current status of the hardware.
OPERATIONAL SPECIFICATIONS
♦
Operates from A or B –42 VDC to –56 VDC input voltage power feeds
♦
Operates over extended temperature range of 0°C to +50°C
♦
Storage –40°C to +85°C; Relative humidity to 95%, noncondensing
DESCRIPTION
The MX2820 Clock Card is a plug-in card, which generates a timing signal
synchronized to either of two external BITS clock references. If both BITS clock
references fail, the Clock Card meets Sonet Minimum Clock (SMC) holdover
requirements to produce the clock reference. This signal is used by the MX2820 to
synchronize its STS-1 transmit. Two Clock Cards provide 1:1 redundancy in the
C A U T I O N !
MX2820 system.
SUBJECT TO ELECTROSTATIC DAMAGE
OR DECREASE IN RELIABILITY.
HANDLING PRECAUTIONS REQUIRED.
©2006 ADTRAN, Inc.
All Rights Reserved.
Green ..........................................Normal (all OK)
Amber .........................................Software update in progress
2 Flashing) ........................Console open
Amber (
Red..............................................Major or minor alarm present
2 Red (Slowly Flashing) ................Clock Card has failed
2 Red (Fast Flashing).....................Critical alarm present
2 Green (Flashing) .........................Normal (all OK)
Amber .........................................Software update in progress
Red..............................................Self-test failure
Customer Service.
®
For more information, refer to the MX2820 System Manual (P/N 61186003L1-1) available online at www.adtran.com.

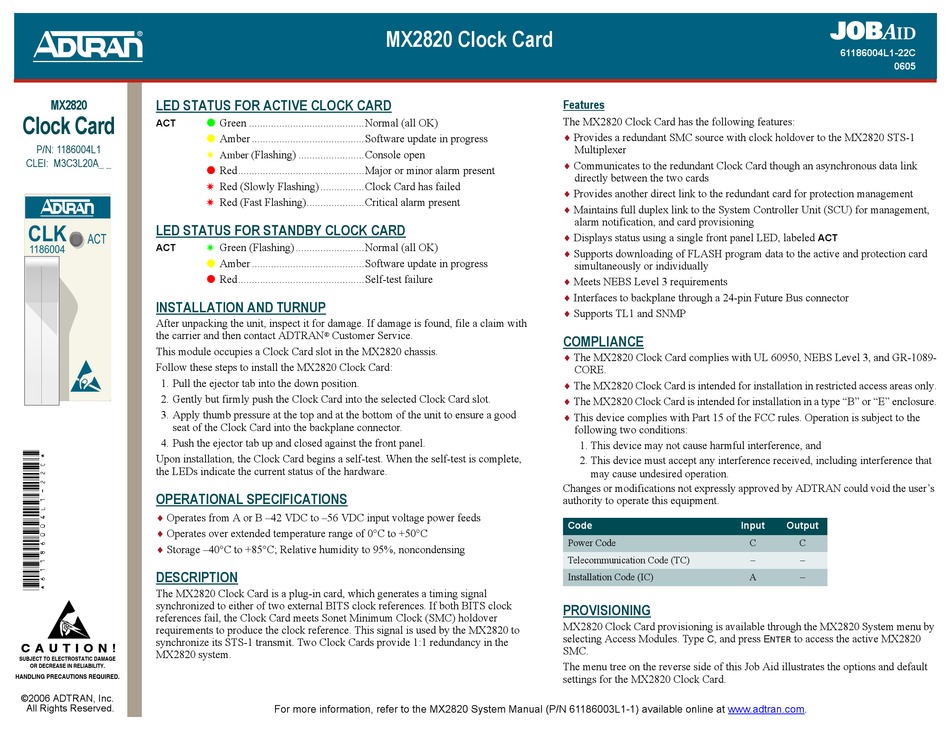

MX2820 Clock Card
Features
The MX2820 Clock Card has the following features:
♦
♦
♦
♦
♦
♦
♦
♦
♦
COMPLIANCE
♦
♦
♦
♦
Changes or modifications not expressly approved by ADTRAN could void the user's
authority to operate this equipment.
PROVISIONING
MX2820 Clock Card provisioning is available through the MX2820 System menu by
selecting Access Modules. Type
SMC.
The menu tree on the reverse side of this Job Aid illustrates the options and default
settings for the MX2820 Clock Card.
Provides a redundant SMC source with clock holdover to the MX2820 STS-1
Multiplexer
Communicates to the redundant Clock Card though an asynchronous data link
directly between the two cards
Provides another direct link to the redundant card for protection management
Maintains full duplex link to the System Controller Unit (SCU) for management,
alarm notification, and card provisioning
Displays status using a single front panel LED, labeled
Supports downloading of FLASH program data to the active and protection card
simultaneously or individually
Meets NEBS Level 3 requirements
Interfaces to backplane through a 24-pin Future Bus connector
Supports TL1 and SNMP
The MX2820 Clock Card complies with UL 60950, NEBS Level 3, and GR-1089-
CORE.
The MX2820 Clock Card is intended for installation in restricted access areas only.
The MX2820 Clock Card is intended for installation in a type "B" or "E" enclosure.
This device complies with Part 15 of the FCC rules. Operation is subject to the
following two conditions:
1. This device may not cause harmful interference, and
2. This device must accept any interference received, including interference that
may cause undesired operation.
Code Input
Power Code
Telecommunication Code (TC)
Installation Code (IC)
, and press
C
61186004L1-22C
0605
ACT
Output
C C
– –
A –
to access the active MX2820
E
NTER
