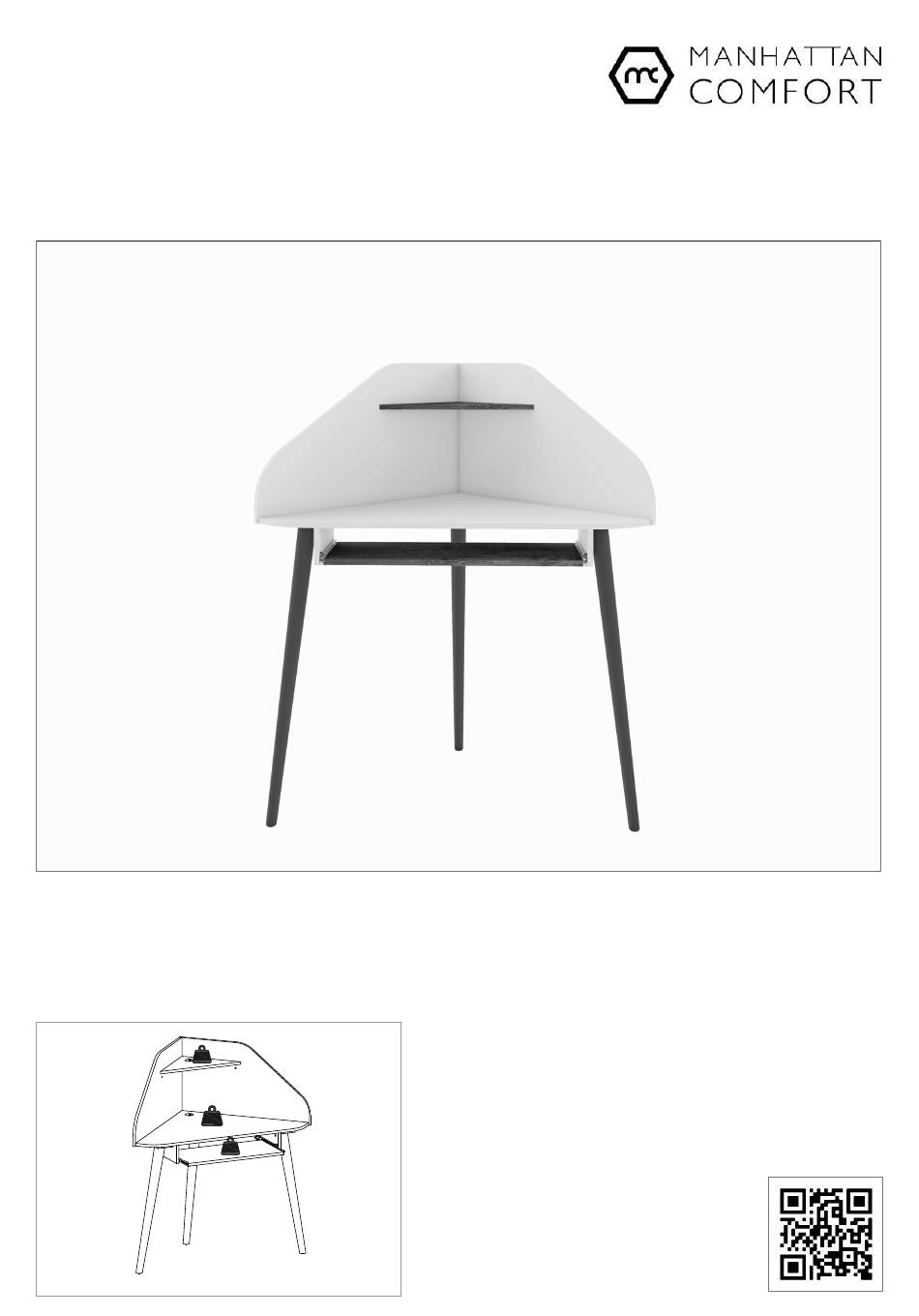

- Page 1 888-230-2225 help@manhattancomfort.com Bradley Corner Desk Model # 229BMC6, 229BMC8, 229BMC9, 229BMC94 The indicated values consider static weights and evenly distributed over the parts. 748 - Ed. 001, 2020/03 - Manhattan Comfort.
- Page 2 INCLUDED IN THE PACKAGE n.° ID Parts Identification (Description) Quantity Top Panel Left Side Panel Right Side Panel Upper Shelf Support for fixing the feet Left Side Support for keyboard Right Side Support for keyboard Base for keyboard Wood Feet H740mm...
- Page 3 TOOLS NEEDED Falt head and phillips Simple hammer. Level indicator. Electric drill and electric screwdriver with screwdriver. drill bit Ø1/2 inch and phillips tips. IMPORTANT! Two people are recommended to assemble and install this product. INCLUDED IN THE HARDWARE...
- Page 4 STEP 1 • Fix the Left Side Support (06) and Right Side Support (07) in Lower face the lower face of the Top Panel (01) with dowels (E) and cam lock hardware (G+H). • At the end the fixation, apply the adhesive covers (I) on the drums (H).
- Page 5 To assemble the table with feet, see steps 4 and 5. To assemble the drop table fixed to wall corner, see steps 6 and 7. STEP 4 DETAIL 1: POSICIONING THE FOOT (09) IN SUPPORT (05) Apply glue • Fixing the Feet (09) in the Supports (05): apply glue (B) to the upper end of the foot and fix with bolt (A).
- Page 6 STEP 6 1/2 inch hole in the wall Kap Toggle bushing ( K ) DETAIL 4 Bolt 1/4 x 2.1/4" ATENTION! Before installing the furniture, check the conditions of the wall for strength to properly support and anchor the weight of the suspended furniture, including equipments and objects that may be installed on the shelves.
