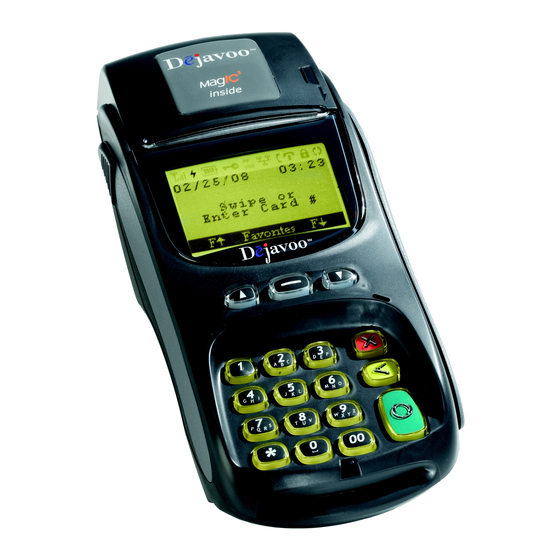

  • Page 1 Download Instructions for the X5 Dial X8 Dual Comm Terminal Line *Note: For Downloading a V Series Terminal Please See “Download M3 GPRS Instructions for the Dejavoo V Series Terminal Line” document. M8 GPRS Tri Comm Confidential – For Training Purposes Only...
  • Page 2 EJAVOO YSTEMS OWNLOAD PPLICATION – S OWNLOAD ODEM TARTING FROM PPLICATION Follow the steps below for a terminal software download via Modem (Dial) when you are beginning from the Application Menu. Be sure there is an active Phone line connected to the terminal’s Modem port. : When downloading a wireless unit via Ethernet please see Important Note “Wireless M Line Download Addendum”...
  • Page 3 – I OWNLOAD ODEM PPLICATION CONTINUED Step Action Display Use the up and down arrow keys to highlight MODEM. Interface Ethernet → Press the Green ENTER key to Make your selection. Modem → PPP → Input Dialing Prefix needed if any is necessary then press ENTER.
  • Page 4 – I OWNLOAD ODEM PPLICATION CONTINUED Step Action Display The terminal flashes “Media set up succeeded” OS Menu and returns to the Interface Menu. Media set up succeeded Use the down arrow key to highlight PPP. Interface Ethernet → Press the Green ENTER key to Make your Modem→...
  • Page 5 – I OWNLOAD ODEM PPLICATION CONTINUED Step Action Display Protocol Press the Green ENTER key to select TCP. TCP → UDP → The terminal displays REMOTE SERVER: Using the yellow backspace key clear out any data in this field so it is blank. Then press the RED X key.
  • Page 6 – I OWNLOAD ODEM PPLICATION CONTINUED Step Action Display Use the up and down arrow keys to highlight SESSION. Configuration Interface → Protocol → Press the Green ENTER key to Make your selection. Session → Configuration Press the Green ENTER key to select MODEM. Ethernet →...
  • Page 7 – I OWNLOAD ODEM PPLICATION CONTINUED Step Action Display The terminal prompts for the SCENARIO NUMBER, input the TPN #, then press the Green ENTER key. Note : five zeros will always prelude the TPN #. Scenario Number? The format is as follows: 00000.000000000 00000.1234567899 (five zeros + 10 digit TPN) For OS upgrades the format is:...
  • Page 8 TARTING FROM PPLICATION Follow the steps below to set up the Dejavoo terminal to download software via the Ethernet (IP) when you are starting from the application menu. Be sure there is an active CAT5 Ethernet cable connected to the terminal’s Ethernet port.

  • Page 9: Application Menu

    – I OWNLOAD VIA THERNET PPLICATION CONTINUED Step Action Display Press the Green ENTER key to select the option Interface for ETHERNET. Ethernet → Modem → PPP → Configuration Press the UP  Arrow key to indicate YES. Use dhcp The terminal flashes “Media set up succeeded”...
  • Page 10 – I OWNLOAD VIA THERNET PPLICATION CONTINUED Step Action Display The terminal displays REMOTE SERVER: Using the yellow backspace key clear out any data in this field so it is blank. Remote IP: Then press the RED X key. 066.011.130.143 The terminal will display REMOTE IP, input the 066.011.130.143 remote IP address:...
  • Page 11 – I OWNLOAD VIA THERNET PPLICATION CONTINUED Step Action Display Press the Green ENTER key to select Configuration ETHERNET. Ethernet → Modem → SSL → The terminal flashes “Media set up succeeded” OS Menu and returns to the Configuration Menu. Media set up succeeded Press the Red X Key Twice, the terminal returns...
  • Page 12 ERMINALS PPLICATION Follow the steps below to set up the Dejavoo terminal to download software via the wireless GPRS network when you are starting from the application menu. Be sure all initializing status’ have registered to YES and that the unit is charged with a signal prior to beginning the download.
  • Page 13 GPRS (W ) – I OWNLOAD IRELESS ERMINALS PPLICATION CONTINUED Step Action Display Protocol Press the Green ENTER key to select TCP. TCP → UDP → The terminal displays REMOTE SERVER: Using the yellow backspace key clear out any data in this field so it is blank. Remote IP: Then press the RED X key.
  • Page 14 GPRS (W ) – I OWNLOAD IRELESS ERMINALS PPLICATION CONTINUED Step Action Display Use the down arrow key to highlight GPRS. Configuration Modem → Press the Green ENTER key to Make your SSL → selection.. GPRS → The terminal flashes “Media set up succeeded” OS Menu and returns to the Configuration Menu.
  • Page 15 PERATING YSTEM When no previous application has been installed it is necessary to download application software via the Operating System (OS). Use the steps below to access the Dejavoo OS. Step Action Display Power cycle the terminal, when the display reads “MagIC Booting..”...

  • Page 16: System Menu

    PERATING YSTEM Use the steps below to download a TPN (Terminal Profile Number) with a phone line via MODEM when in the Dejavoo OS. : When downloading a wireless unit via Ethernet please see Important Note “Wireless M Line Download Addendum” In this document.
  • Page 17 … ODEM OWNLOAD PERATING YSTEM ONTINUED Step Action Display Input the phone number the terminal will use to dial out to. (without the dashes) Phone Number? 1-631-675-2013 16316752013 Press the Green ENTER key to continue. The terminal will display MODEM COMMAND: Modem Command? ATN1C.
  • Page 18 … ODEM OWNLOAD PERATING YSTEM ONTINUED Step Action Display The terminal displays USER NAME: Using the alphanumeric keypad input the following: User Name: Then press the Green ENTER key. (Note: to clear characters use the yellow backspace key) The terminal displays PASSWORD: Using the alphanumeric keypad input the following: Password:...
  • Page 19 … ODEM OWNLOAD PERATING YSTEM ONTINUED Step Action Display Protocol Press the Green ENTER key to select TCP. 1. TCP → 2. UDP → 3. SSL → The terminal displays REMOTE SERVER: Using the yellow backspace key clear out any data in this field so it is blank.
  • Page 20 Step Action Display Configuration Use the down arrow key to highlight SESSION, Interface → then press the Green ENTER Key. Protocol → Session → Configuration Use the down arrow key to highlight MODEM, Ethernet → then press the Green ENTER. Modem →...
  • Page 21 … ODEM OWNLOAD PERATING YSTEM ONTINUED Step Action Display The terminal prompts for the SCENARIO NUMBER, input the TPN #, then press the Green ENTER key. Scenario Number? Note : five zeros will always prelude the TPN #. The 00000.000000000 format is as follows: 00000.1234567899 (five zeros + 10 digit TPN) For OS upgrades the format is:...
  • Page 22 PERATING YSTEM Use the steps below to download a TPN (Terminal Profile Number) with an IP connection via ETHERNET when beginning in the Dejavoo OS Menu. : When downloading a wireless unit via Ethernet please see Important Note “Wireless M Line Download Addendum” In this document.
  • Page 23 … THERNET OWNLOADS PERATING YSTEM ONTINUED Step Action Display Configuration Press the Yellow back space key to return to the Interface → CONFIGURATION Menu. Protocol → Session → Use the down arrow key to highlight PROTOCOL. Press the Green ENTER key Protocol Press the Green ENTER key to select TCP.
  • Page 24 … THERNET OWNLOADS PERATING YSTEM ONTINUED Step Action Display Connection Menu The terminal flashes “Media set up succeeded” Media set up and returns to the configuration Menu. succeeded Configuration Use the down arrow key to highlight SESSION. Interface → Protocol → Press the Green ENTER key Session →...
  • Page 25 … THERNET OWNLOADS PERATING YSTEM ONTINUED Step Action Display Downloader Press the down arrow key to highlight TMS, 1. PROD then press the Green ENTER. 2. TMS → 3. FTP → The terminal prompts for the SCENARIO NUMBER, input the TPN #, then press the Green ENTER key.
  • Page 26 PERATING YSTEM Follow the steps below to set up the Dejavoo terminal to download software via the wireless GPRS network when you are starting from the application menu. Be sure that the unit is charged with a signal prior to beginning the download.
  • Page 27 Then press the Green ENTER key. GPRS APN: *note: this is case sensitive and must be lower dejavoo.globalm2m.net case. For the dot (.) press the middle favorites key, then the number 3, then arrow down to highlight the dot and press ENTER.
  • Page 28 GPRS (W ) – F OWNLOAD IRELESS ERMINALS PERATING YSTEM CONTINUED Step Action Display The terminal displays REMOTE SERVER: Using the yellow backspace key clear out any data in this field so it is blank. Remote IP: Then press the RED X key. 066.011.130.143 The terminal will display REMOTE IP, input the remote IP address:...
  • Page 29 GPRS (W ) – F OWNLOAD IRELESS ERMINALS PERATING YSTEM CONTINUED Step Action Display OS Menu Press the Red X Key until the terminal returns to the OS Main Menu. 1. Remote 2. Execute Press the Green ENTER key to select REMOTE. 3.
  • Page 30 – W IRELESS OWNLOAD DDENDUM OWNLOADING ODEM OR When downloading an M Line wireless terminal via Modem or Via Ethernet it is necessary to set the ALWAYS ON indicator to OFF. Use the steps below to turn ALWAYS ON off from the terminal menu then proceed with the steps for downloading in this document.
  • Page 31 OFTWARE OWNLOAD Dejavoo terminals can be downloaded via USB key quickly and easily. It is important the uncompressed (Unzipped) TPN file folder is placed in a folder named “download” and that the file name “download” sits on the root directory of the USB key. Use the instructions below for correctly setting up your TPN on the USB key.
  • Page 32 USB K ETTING P THE EY FOR OFTWARE OWNLOAD CONTINUED Step Action Display Right click on Compressed (.Zip) TPN file on your desktop and select EXTRACT ALL… from the menu. When the SELECT DESTINATION window appears click on the EXTRACT button. A window will appear listing all of the software files (.TAR) that have been extracted from the Zipped Folder and placed into a subfolder on your Desktop.
  • Page 33 USB K ETTING P THE EY FOR OFTWARE OWNLOAD CONTINUED Step Action Display Insert your USB\ Key into your computer’s USB Port. Your computer will identify that a USB Removable Drive has been inserted and the window to the right will open. Click on “Open Folder to View Files”...
  • Page 34 OWNLOADING OFTWARE VIA The versatility of Dejavoo terminals enables software installation quickly and easily with a USB key inserted into one of the two USB ports located on the back of the terminal. The software file to be installed must be placed on the USB key root directory in a file titled “download”...
  • Page 35 USB D ROUBLE HOOTING OWNLOADS Below are some important facts about USB downloading. Please read though the list carefully to avoid download issues. (1) The most common reason for this is that the USB key is not set up correctly. Make sure the ERMINAL TPN is unzipped and stored in the folder named “download”...
