Thank you for purchasing our fine product!
WARNING
: Failure to follow these directions and warnings can result in serious injury
and/or product damage.
Assistance is required to assemble this chair.
!
Never stand on the chair or use it as a ladder.
!
Do not tip the chair when seated.
!
Periodically re-tighten all bolts and legs.
!
If any parts become missing, damaged or worn, discontinue use until they are replaced with identical parts.
!
Always seek assistance before moving furniture.
!

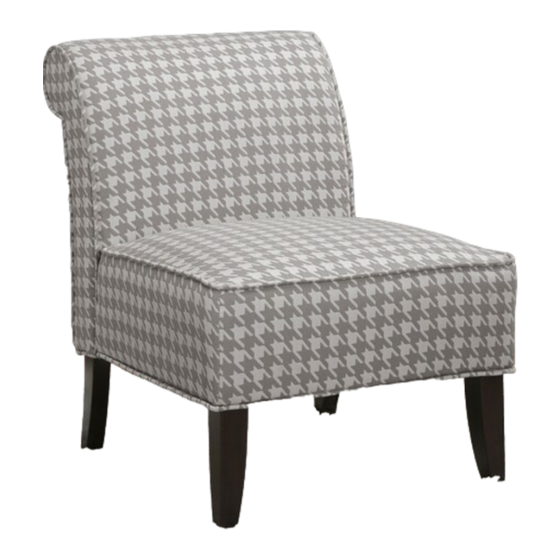

#1108 Sadie Slipper Chair
Assembly Instructions
This package contains all tools necessary for assembly.
Give us a chance to make it right
Contact our friendly, U.S. based customer service department with any
problems or comments. Replacements for missing or damaged parts
will be shipped promptly.
Toll Free: 866-528-8364
Monday - Friday, 8am-5pm, ET. After business hours, leave a message.
We will return your call the next business day.
#1108 Sadie Slipper Chair
Page 1
Advertisement
Table of Contents
Related Manuals for µ-Dimension Sadie 1108
Summary of Contents for µ-Dimension Sadie 1108
- Page 1 #1108 Sadie Slipper Chair Assembly Instructions Thank you for purchasing our fine product! This package contains all tools necessary for assembly. Give us a chance to make it right Contact our friendly, U.S. based customer service department with any problems or comments. Replacements for missing or damaged parts will be shipped promptly.
- Page 2 #1108 Sadie Slipper Chair Assembly Instructions PARTS LIST Part Part Name Qty. Part Part Name Qty. Drawing Drawing Long Bolt with Back Frame Washers (5/16" × 3") Allen Wrench Seat Frame Wood Dowel Step 1 - Remove all parts from their packaging and confirm that the quanties match those listed above. If any parts are damaged or missing, please call our Customer Service Department at 1-866-528-8364.
- Page 3 #1108 Sadie Silpper Chair Assembly Instructions Step 2 - Place the Back Frame (Part A) on a flat surface. Insert the Wood Dowels (Part F) into the middle-center holes located in the Back Frame as shown below. Step 3 - With the dust cover pulled back, align the corresponding dowel holes in the Seat Frame (Part B) with the dowels that were inserted in Step 2.
- Page 4 #1108 Sadie Slipper Chair Assembly Instructions Step 5 - With help, place the chair on its side. Insert the Legs (Part C) into the front corners of the Seat Frame as shown below. Make sure the bolt holes on the Seat Frame are aligned with the corresponding holes in the Leg.
