READ AND SAVE THIS MANUAL. This manual contains important safety precautions which should be read and understood before operating the product. Failure to
do so could result in serious injury. This manual should remain with the product.
Specifications, descriptions and illustrations in this manual are as accurate as known at the time of publication, but are subject to change without notice.
EN
3450-M-OP REV 20220905
REGISTER YOUR PRODUCT ONLINE
at championpowerequipment.com

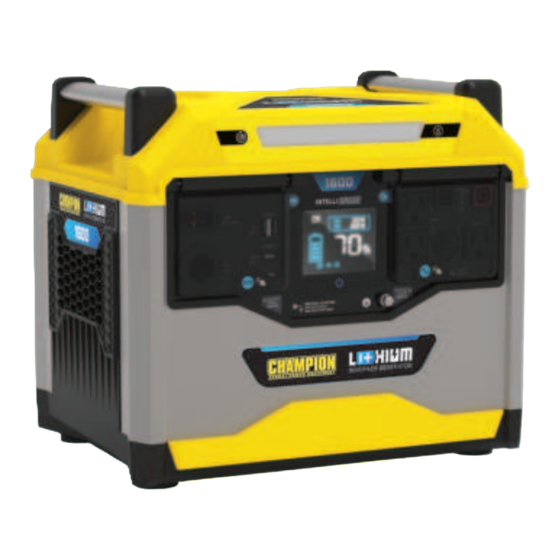

OPERATOR'S MANUAL
MODEL #100594
1600 PORTABLE POWER STATION
or visit championpowerequipment.com
Champion Power Equipment, Inc., Santa Fe Springs, CA USA

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 100594 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Champion 100594

Summary of Contents for Champion 100594

  • Page 1 This manual should remain with the product. Specifications, descriptions and illustrations in this manual are as accurate as known at the time of publication, but are subject to change without notice. 3450-M-OP REV 20220905 Champion Power Equipment, Inc., Santa Fe Springs, CA USA...

  • Page 2: Table Of Contents

    100594 - 1600 PORTABLE POWER STATION TABLE OF CONTENTS TABLE OF CONTENTS Maintenance ..........Cleaning the Power Station .

  • Page 3: Introduction

    INTRODUCTION INTRODUCTION SAFETY DEFINITIONS Congratulations on your purchase of a Champion Power Equipment The purpose of safety symbols is to attract your attention to (CPE) product. CPE designs, builds, and supports all of our possible dangers. The safety symbols, and their explanations, deserve your careful attention and understanding.

  • Page 4: Important Safety Instructions

    Power Station produces heat. Skin burns can occur on contact. Do not operate the Power Station with a damaged cord, plug, Do not touch hot surfaces. or a damaged output cable. Use only Champion electrical cords Allow equipment to cool before touching. for proper application.

  • Page 5: Lithium-Ion Battery Safety

    – Do not use this unit if you do not understand these operating instructions. – Maintain the labels and nameplates on this Power Station. These carry important information. If unreadable or missing, contact our Champion Technical Support Team for a free replacement.
  • Page 6 fire, electric shock or personal injury. – Always unplug charger when not in use. – For service information please contact our Champion – To reduce the risk of electric shock, always unplug charger Technical Support Team at 1-877-338-0999. Please have before cleaning or maintenance.
  • Page 7 100594 - 1600 PORTABLE POWER STATION IMPORTANT SAFETY INSTRUCTIONS In case of battery damage: – If damaged, the internal battery may emit hazardous fumes. If fumes are present, move Power Station to a well-ventilated area. – Do not try to repair the Power Station or replace the battery.

  • Page 8: Safety And Dataplate Labels

    100594 - 1600 PORTABLE POWER STATION IMPORTANT SAFETY INSTRUCTIONS Safety and Dataplate Labels These labels warn you of potential hazards that can cause serious injury. Read them carefully. If a label comes off or becomes hard to read, contact Technical Support Team for possible replacement.

  • Page 9: Safety Symbols

    100594 - 1600 PORTABLE POWER STATION IMPORTANT SAFETY INSTRUCTIONS Safety Symbols Some of the following symbols may be used on this product. Please study them and learn their meaning. Proper interpretation of these symbols will allow you to more safely operate the product.
  • Page 10 100594 - 1600 PORTABLE POWER STATION IMPORTANT SAFETY INSTRUCTIONS SYMBOL MEANING Wet Conditions Alert. Do not operate Power Station in wet conditions. This product uses lithium-ion (Li-ion) batteries. Local, state, or federal laws prohibit disposal of Li-ion batteries in ordinary trash. In the United States and Canada, a large network of over 30,000 battery drop-off locations may be found at www.call2recycle.org and/or consult your local waste...

  • Page 11: Operation Symbols

    100594 - 1600 PORTABLE POWER STATION IMPORTANT SAFETY INSTRUCTIONS Operation Symbols Some of the following symbols may be used on this product. Please study them and learn their meaning. Proper interpretation of these symbols will allow you to more safely operate the product.

  • Page 12: Quick Start Label Symbols

    100594 - 1600 PORTABLE POWER STATION IMPORTANT SAFETY INSTRUCTIONS Quick Start Label Symbols Some of the following symbols may be used on this product. Please study them and learn their meaning. Proper interpretation of these symbols will allow you to more safely operate the product.

  • Page 13: Controls And Features

    100594 - 1600 PORTABLE POWER STATION CONTROLS AND FEATURES CONTROLS AND FEATURES Read this operator’s manual before operating your Power Station. Familiarize yourself with the location and function of the controls and features. Save this manual for future reference. Power Station 1.

  • Page 14: Control Panel

    100594 - 1600 PORTABLE POWER STATION CONTROLS AND FEATURES Control Panel 1234 DC Output AC Output 1. Intelligauge – See Intelligauge section. RECEPTACLES 2. Cover Lock – Push the the cover to unlock and lift to open or 12V DC, 20A (APP Anderson Power Pole) push to close.

  • Page 15: Intelligauge

    100594 - 1600 PORTABLE POWER STATION CONTROLS AND FEATURES Intelligauge This meter displays a variety of info such as input/output power, charge/discharge times, as well as faults, errors, and protection codes to help diagnose malfunctions in the Power Station. The top displays input and output information.
  • Page 16 100594 - 1600 PORTABLE POWER STATION CONTROLS AND FEATURES Display Modes MODE DESCRIPTION Example: 4.0 Hours to charge to full, 0 watts out, Charging (Hours) battery is at 10% Example: 384 Watts charging in, 0 watts out, Charging (Watts) battery is at 10% Example: 2.0 Hours to empty, 0 watts in,...
  • Page 17 100594 - 1600 PORTABLE POWER STATION CONTROLS AND FEATURES Indicators MODE DESCRIPTION Example: THD Shield enabled icon will always be THD Shield Enabled steady blue. DC ports are always live. (Default Mode), AC Output OFF This is the default display upon startup.
  • Page 18 100594 - 1600 PORTABLE POWER STATION CONTROLS AND FEATURES MODE DESCRIPTION Low Temperature Example: Steady red when the Power Station has Warning experienced a low temperature event. LED ON Example: The LED icon is showing the LED is on. The numbers below the 12V DC and USB fault 12V DC and USB indicators specify which port is experiencing a fault.

  • Page 19: Industry Canada: Ices-003/Nmb-003

    100594 - 1600 PORTABLE POWER STATION CONTROLS AND FEATURES Industry Canada: ICES-003/NMB-003 This device complies with Industry Canada license - exempt RSS standard(s). Operation is subject to the following two conditions: 1. This device may not cause interference, and 2. This device must accept any interference, including interference that may cause undesired operation of the device.

  • Page 20: Initial Use

    100594 - 1600 PORTABLE POWER STATION INITIAL USE INITIAL USE 1. Remove the rubber plug covering the AC input port on the AC Charging module. Your Power Station must be charged before first use. 2. Plug the AC Charging Cable into the AC input port on the back If you have any questions regarding the use of your Power Station, of the Power Station.

  • Page 21: Recommended Solar Panels

    100594 - 1600 PORTABLE POWER STATION INITIAL USE 1. Remove the rubber plug covering the DC input port and Recommended Solar Panels connect the APP end of the Easy Connect DC Solar Charge  Harness (included) to the APP input port on the back of the NOTICE Power Station.

  • Page 22: Operation

    100594 - 1600 PORTABLE POWER STATION OPERATION OPERATION 4. To turn THD Shield off, press THD Shield button 5x within three seconds. Using the Power Station 1. Press and hold the power button for three seconds, until display illuminates. 5. Plug in desired devices.

  • Page 23: Connecting Electrical Loads

    100594 - 1600 PORTABLE POWER STATION OPERATION Connecting Electrical Loads 4. If overload is due to high THD, the AC outlet icon and “THD” will remain steady red. See THD Shield (Total Harmonic Distortion) section.  WARNING Always remember to plug your appliances directly into the Power Station and do not connect any of the several Power Station “outputs”...

  • Page 24: Do Not Overload Power Station

    Parallel Operation 5. If the Power Station power output is cut off due to an overload Champion Power Station model 100594 is parallel ready and can or high THD condition, see Resetting the Output and THD be operated with another Champion inverter or Champion Power Shield (Total Harmonic Distortion) sections.

  • Page 25: Expandable Capacity

    100594 - 1600 PORTABLE POWER STATION MAINTENANCE Expandable Capacity MAINTENANCE Champion Power Station model 100594 is capable of connecting up to ten 1638 Wh external battery packs, Champion Expansion Cleaning the Power Station Battery model 201107.  WARNING To order Champion Expansion Battery model 201107 to increase your Power Station’s battery capacity and run time, please call...

  • Page 26: Specifications

    100594 - 1600 PORTABLE POWER STATION SPECIFICATIONS SPECIFICATIONS AC Charger Specifications Output Watts ............ Power Station Specifications Input Voltage ............ Output Voltage..........55 DC Power Station Model ........

  • Page 27: Troubleshooting

    100594 - 1600 PORTABLE POWER STATION TROUBLESHOOTING TROUBLESHOOTING Problem Cause Solution Battery is not charged Charge battery. Power Station will not turn on. Did not hold power button long enough Hold for 3 full seconds until display turns on. Battery is faulty Call Champion Support.
  • Page 28 100594 - 1600 PORTABLE POWER STATION TROUBLESHOOTING Problem Cause Solution Adjust your solar panels to face the sun as best as possible throughout the day to achieve maximum charging efficiency. It may be necessary to connect more than any combination of 440W of solar panels to reach the Charging wattage depends on full 440W of charging power.
  • Page 29 – Failures due to acts of God and other force majeure events days from date of purchase. beyond the manufacturer’s control. – Problems caused by parts that are not original Champion Repair/Replacement Warranty Power Equipment parts. CPE warrants to the original purchaser that the components will –...
