Luverne 571726 Installation Manual

INSTALLATION MANUAL
Level of Difficulty
Easy
This is the first of two manuals
required to complete this installation.
The second manual is included with
your side steps / running boards.
Parts List
1 Front mounting bracket
1 AC mounting top bracket
1 AC mounting bracket
2 Bolt retainer
6 Lock washer, 5/16"
2 Flat washer, 5/16"
2 Thread-cutting screw, 5/16"
1 U-bolt 3"
6 Bolt, M8
4 Clip nut, M8
4 Flange nut, M8
Tools Required
Socket, 1/2" Drill bit, 3/8"
Wrench, 1/2" Drill bit, 3/32"
Flathead Drill bit, 19/64"
screw driver
Marker Putty knife
Torque Specifications
M6 bolt 3 ft-lbs.
M8 bolt 7 ft-lbs.
M10 bolt 16 ft-lbs.
M12 bolt 28 ft-lbs.
1/4" bolt 3 ft-lbs.
5/16" bolt 7 ft-lbs.
3/8" bolt 16 ft-lbs.
7/16" bolt 20 ft-lbs.
1/2" bolt 28 ft-lbs.
Use above torque setting unless otherwise noted
LUVERNETRUCK.COM
•

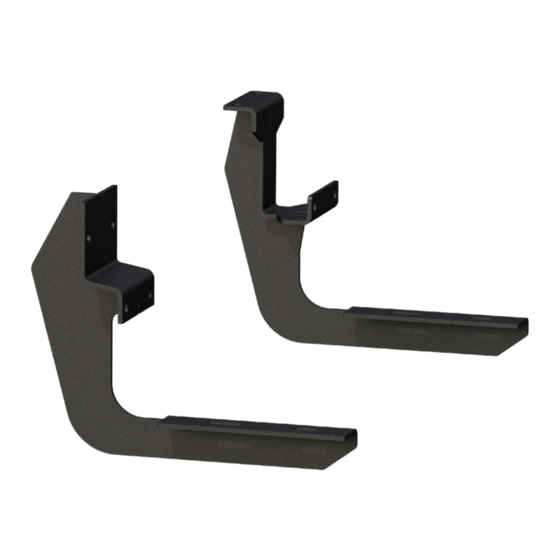

Product Photo
NOTICE
Before you begin installation, read all instructions thoroughly.
Proper tools will improve the quality of installation and reduce the time required.
To help prevent damage to the product or vehicle, refer to the specified
torque specifications when securing hardware during the installation process.
Maintenance
To protect the product, wax after installing. Regular waxing is recommended
to add a protective layer over the finish. Do not use any type of polish or wax
that may contain abrasives that could damage the finish.
For polished, gloss and other smooth finishes,
polish may be used to clear small scratches and scuffs on the finish.
Mild automotive detergent may be used to clean the product. Do not use dish detergent, abrasive
cleaners, abrasive pads, wire brushes or other similar products that may damage the finish.
Product Registration and Warranty
CURT Group stands behind our products with industry-leading warranties.
Provide feedback and help us to improve our products by registering your purchase at:
warranty.curtgroup.com/surveys
NEED ASSISTANCE? • 877.287.8634 • 571726-INS-RA • PAGE 1
