Luverne O-MEGA II Series Installation Instructions And Parts List

INSTALLATION INSTRUCTIONS AND PARTS LIST

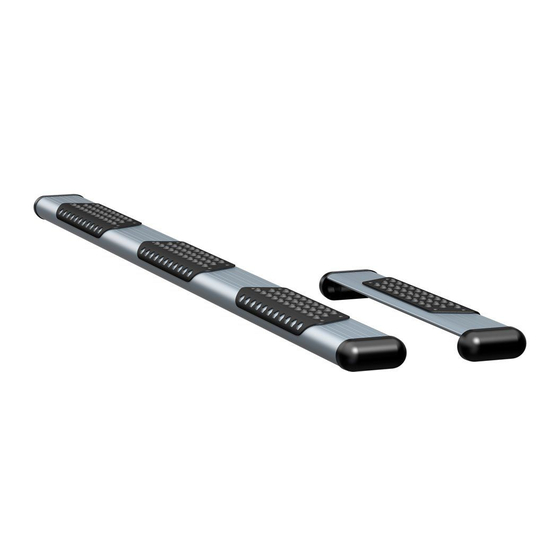

MODEL 583054, 583060, 584054 O-MEGA II 6" OVAL STEPS
1. READ INSTRUCTIONS COMPLETELY AND CHECK TO MAKE SURE THAT ALL REQUIRED PARTS
(LISTED ON THE SERVICE PARTS LIST) ARE ON HAND BEFORE STARTING THE INSTALLATION.
2. FOLLOW THE INSTRUCTIONS INCLUDED WITH THE SPECIFIC BRACKET PACKAGE THAT YOU
ARE USING, TO MOUNT THE BRACKETS TO YOUR VEHICLE.
3. BEFORE ATTACHING THE O-MEGA STEPS TO THE BRACKETS, PLACE THE STEP PADS (ITEM #2)
ON TOP OF THE STEP PLATES. USE THE TABLE ON SHEET #2, AS A GUIDE TO POSITION THE
STEP PAD FOR YOUR PARTICULAR VEHICLE. WHEN INSTALLING THE PADS ON THE STEPS,
DRILL (5) 1/8'" HOLE USING THE STEP PAD AS A GUIDE. ATTACH WITH (5) 8-18X1/2'" TEK
SCREWS (ITEM #6) PROVIDED. REPEAT FOR ALL STEP PADS.
4. INSTALL THE REQUIRED NUMBER OF SQUARE HEAD BOLTS INTO THE DESIGNATED SLOTS IN
THE BOTTOM OF THE STEP PLATES.
5. INSTALL THE END CAPS (ITEM #3) AS SHOWN IN fig. 1 SNUG UP THE NUTS. BE CAREFUL NOT
TO DEFORM THE PLASTIC
6. POSITION THE O-MEGA STEP ON THE MOUNTING BRACKETS SO THAT THE SQUARE HEAD
SCREWS (ITEM #4) ARE LOCATED IN THE SLOTS OF THE MOUNTING BRACKETS AND THE STEP
IS CENTERED, FRONT TO REAR, ON THE VEHICLE. INSTALL 5/16" SERRATED FLANGE NUTS
(ITEM #5) ON THE SQUARE HEAD SCREWS (ITEM #4) AND TIGHTEN TO 19 LB FT.
ITEM
1
1
1
2
3
4
5
6
Service Parts List
PART NO. QTY
553069 2 EXTRUSION-AL,51.0,OMEGA STP,SILVER
553057 2 EXTRUSION-AL,51.0,OMEGA STP,BLACK
553070 2 EXTRUSION-AL,57.0,OMEGA STP,SILVER
552970 4 ALUM,STP-PAD,BLK,OMEGA-STEPS
107956 4 CAP-END,PLSTC,2.95 X 6.70
106880 20 SCREW-SQ HD,5/16-18 X 1,MAGNIGUARD
102680 20 NUT-SERR FLG,HX,SST,WX,5/16-18
107958 20 SCREW-PPH,TEK,#8-18 X 1/2",SST,BZP
DESCRIPTION
553114 SHEET 1 OF 2 05OCT16
