INSTALLATION INSTRUCTIONS AND PARTS LIST
2014 CHEVROLET/GMC REGULAR CAB PICKUPS
1. READ INSTRUCTIONS COMPLETELY AND CHECK TO MAKE SURE THAT ALL REQUIRED PARTS
(LISTED ON SERVICE PARTS LIST) ARE ON HAND BEFORE STARTING THE INSTALLATION.
2. ASSEMBLE THE BAJA-STEPS AND MOUNTING BRACKETS AS FOLLOWS.
NOTE: THE 1" X 3" SERIAL NUMBER DECAL IS LOCATED ON THE FRONT LEG OF THE LEFT
(DRIVERS SIDE) BAJA-STEP ASSEMBLY.
2.1 LAY THE BAJA-STEP ASSEMBLIES (ITEM #1) ON A FLAT SURFACE. (LEFT & RIGHT HAND
ASSEMBLIES SHOULD BE MIRROR IMAGES OF ONE ANOTHER).
2.2 ATTACH THE FRONT BRACKET (ITEM #2 LH, #3 RH) AND REAR BRACKET (ITEM #4 LH, #5 RH)
TO THE BAJA-STEP AS SHOWN. USE ½-13 X 2" LONG HEX HEAD BOLTS (ITEM #6). TORQUE
THESE BOLTS TO 65 LB. FT.
NOTE:
DUE TO EXCESSIVE THREAD LOCKER IN THE BODY MOUNT BOLT AREA ON THE 2010+ GM
SILVERADO/SIERRA, PLEASE USE CAUTION WHEN REMOVING THESE BODY MOUNT BOLTS IN
ORDER TO REDUCE THE RISK OF CAUSING DAMAGE TO THE THREADED INSERTS INSIDE THE
VEHICLE.
3. REMOVE THE FOUR (4) APPLICABLE FACTORY BODY MOUNT BOLTS FROM THE VEHICLE.
3.1. THESE FOUR (4) BOLTS ARE REUSED IN THIS INSTALLATION.
3.2 THE BODY MOUNT STEEL WASHER PLATES WITH RUBBER CUSHIONS ARE REUSED
BETWEEN THE BODY MOUNT AND THE BAJA-STEP MOUNTING BRACKET.
4. POSITION THE BAJA-STEP ASSEMBLY UP UNDER THE VEHICLE AND ATTACH THE FRONT AND
REAR BRACKETS TO THE BODY MOUNTS WITH FACTORY BODY MOUNT BOLTS AS SHOWN.
4.1. TORQUE ALL BODY MOUNT BOLTS TO 65 LB. FT.
ITEM PART NO.
1 552218
2 552270
3 552271
4 552278
5 552279
6 104249

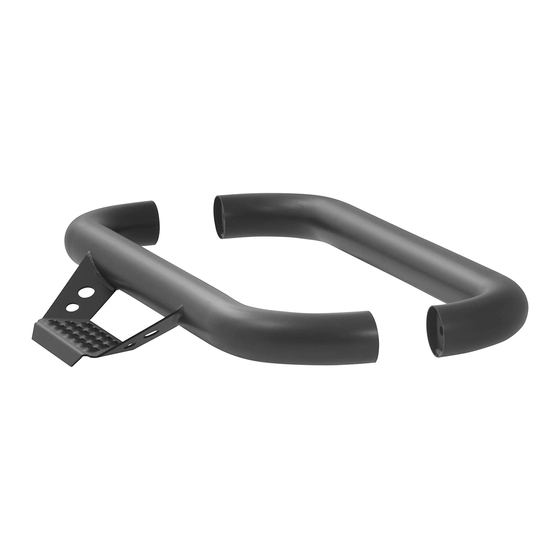

MODEL# 431411 BAJA STEP BARS BLACK:

SERVICE PARTS LIST

QTY
2 BAJA-STEP WLDMT-LH/RH,SST, BLK, 430711
1
1
1
1
4 BOLT-HEX HD CAP, SERRFLG, 1/2 X 2.00"LG,ZP
DESCRIPTION
BRKT MTG BAJA-STEP-LH FRONT
BRKT MTG BAJA-STEP-RH FRONT
BRKT MTG BAJA-STEP- LH REAR
BRKT MTG BAJA-STEP- RH REAR
552461 SHEET 1 OF 2 04FEB14
