INSTALLATION INSTRUCTIONS AND PARTS LIST
1. READ INSTRUCTIONS COMPLETELY AND CHECK TO MAKE SURE THAT ALL REQUIRED PARTS
(LISTED ON THE SERVICE PARTS LIST) ARE ON HAND BEFORE STARTING THE INSTALLATION.
2. FOLLOW THE INSTRUCTIONS INCLUDED WITH THE SPECIFIC BRACKET PACKAGE THAT YOU
ARE USING, TO MOUNT THE BRACKETS TO YOUR VEHICLE.
3. BEFORE ATTACHING THE O-MEGA STEPS TO THE BRACKETS, PLACE THE STEP PADS (ITEM #2)
ON TOP OF THE STEP PLATES ACCORDINGLY FOR YOUR VEHICLE. USING THE HOLES IN THE
STEP PAD AS A GUIDE DRILL (5) 1/8'" PILOT HOLES. ATTACH WITH (5) 8-18X1/2'" TEK SCREWS
(ITEM #6) PROVIDED. REPEAT FOR ALL STEP PADS.
4. INSTALL THE REQUIRED NUMBER OF SQUARE HEAD SCREWS (ITEM#4) INTO THE DESIGNATED
SLOTS IN THE BOTTOM OF THE STEP PLATES.
5. INSTALL THE END CAPS (ITEM #3) AS SHOWN IN (FIG.1), TIGHTENING THE SERRATED NUTS
(ITEM#5) TO 5 LB FT.
6. POSITION THE O-MEGA STEP ON THE MOUNTING BRACKETS SO THAT THE SQUARE HEAD
SCREWS (ITEM #4) ARE LOCATED IN THE SLOTS OF THE MOUNTING BRACKETS AND THE STEP
IS CENTERED, FRONT TO REAR, ON THE VEHICLE. INSTALL 5/16" SERRATED FLANGE NUTS
(ITEM #5) ON THE SQUARE HEAD SCREWS (ITEM #4) AND TIGHTEN TO 19 LB FT.
ITEM PART NO.
1
1
2
3
4
5
6

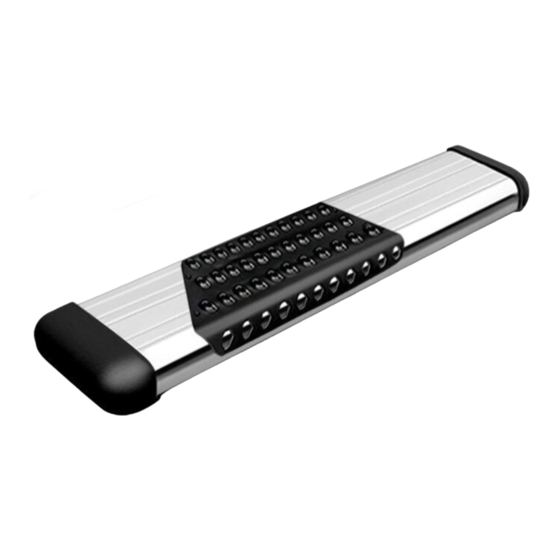

MODEL 583036, 584036 O-MEGA II 6" OVAL STEPS

SERVICE PARTS LIST

QTY
553068 2 EXTRUSION-AL,33.00"OMEGA, SILVER
553056 2 EXTRUSION-AL,33.00"OMEGA, BLACK
552970 2 ALUM, STP-PAD, BLK, OMEGA-STEP
107956 4 CAP-END,PLSTC,2.95 X 6.70
106880 16 SCREW-SQ HD,5/16-18 X 1,MAGNIGUARD
102680 16 NUT-SERR FLG,HX,SST,WX,5/16-18
107958 10 SCREW-PPH,TEK,#8-18 X 1/2",SST,BZP
DESCRIPTION
553112 SHEET 1 OF 2 05OCT2016
