INSTALLATION MANUAL
Level of Difficulty
Moderate
Installation difficulty levels are based on time
and effort involved and may vary depending on
the installer level of expertise, condition of the
vehicle and proper tools and equipment.
This is the first of two manuals
required to complete this installation.
The second manual is included with
your side steps / running boards.

Parts List

Qty Description
1 Mounting bracket, driver-side front
1 Mounting bracket, driver-side middle
1 Mounting bracket,
passenger-side front
1 Mounting bracket,
passenger-side middle
3 Mounting bracket,
passenger-side rear
5 Retainer plate, long
2 Retainer plate, short
14 Flat washer, 5/16"
14 Hex bolt, 5/16"-18 x 1", grade 5
14 Flange nut, 5/16"-18
4 Flat washer, 1/4"
4 Hex bolt, 1/4"-20 x 3/4", grade 5
4 Clip-on nut, 1/4"-20
13 Thread forming bolt, 5/16" x 3/4"

Tools Required

Drill Clamp
Drill bit, 3/16" Wrench, 1/2"
Drill bit, 11/32" Straight edge / level
Ratchet Paint marker
Socket, 7/16" Tape measure
Socket, 1/2" Trim panel pry tool

Torque Specifications

1/4" bolt 3 ft-lbs.
5/16" bolt 7 ft-lbs.
Use above torque setting unless otherwise noted
LUVERNETRUCK.COM
•

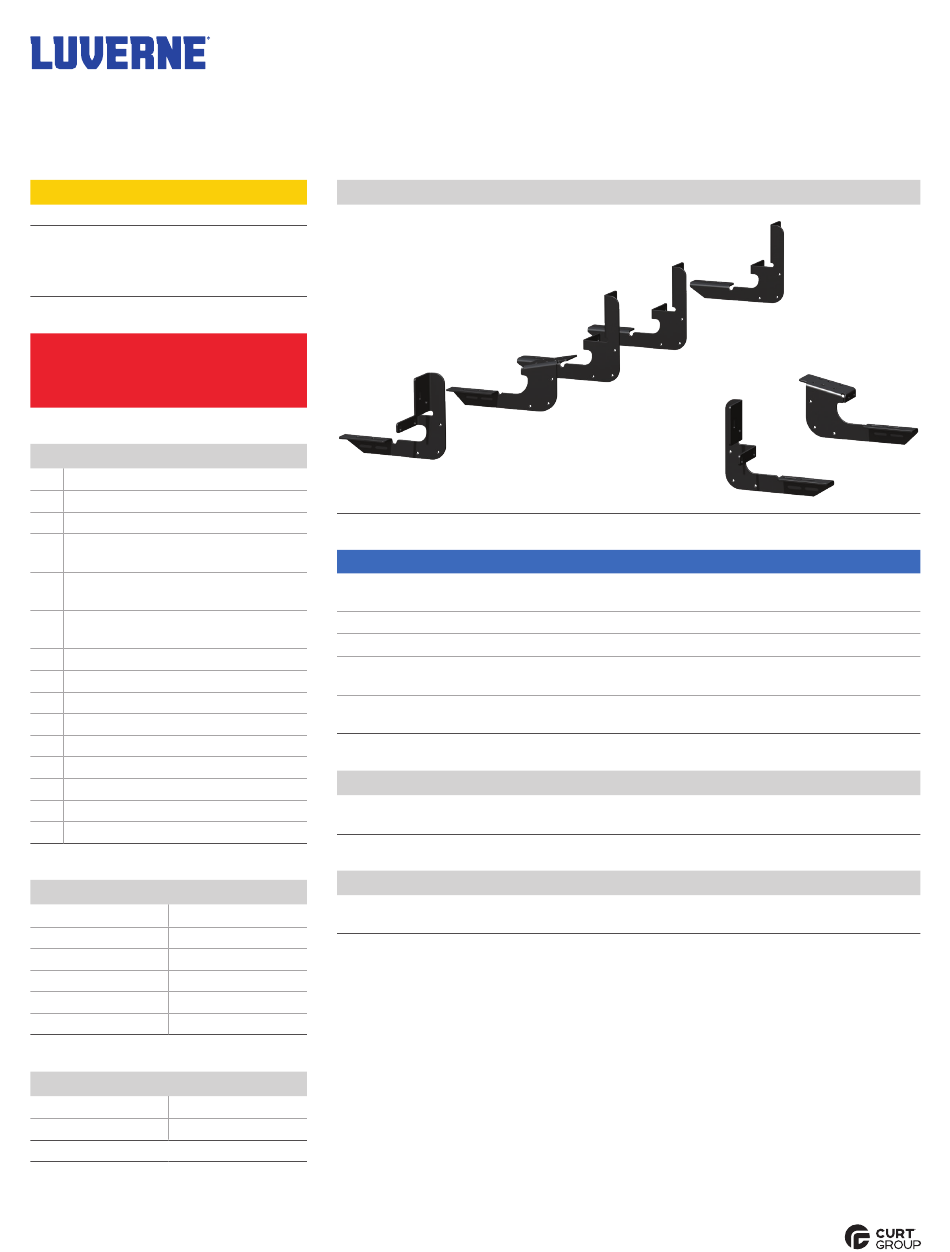

Product Photo
Front
NOTICE
Visit www.luvernetruck.com for a full-color copy of this
instruction manual, as well as helpful videos, guides and much more!
Before you begin installation, read all instructions thoroughly.
Proper tools will improve the quality of installation and reduce the time required.
Periodic inspection of your product should be performed
to ensure all hardware and / or components remain secure.
To help prevent damage to the product or vehicle, refer to the specified
torque specifications when securing hardware during the installation process.

Maintenance

Mild automotive detergent may be used to clean the product. Do not use dish detergent, abrasive
cleaners, abrasive pads, wire brushes or other similar products that may damage the finish.
Product Registration and Warranty
LUVERNE stands behind our products with industry-leading warranties. To get copies of the product
warranties, register your purchase or provide feedback, visit: warranty.curtgroup.com/surveys
PRODUCT SUPPORT: 877.287.8634 • 571477-INS-RA • 10/27/2020 • ECN7528 • PAGE 1
571477
Rear
