Luverne O-MEGA II Installation Instructions And Parts List

INSTALLATION INSTRUCTIONS AND PARTS LIST
1. READ INSTRUCTIONS COMPLETELY AND CHECK TO MAKE SURE THAT ALL REQUIRED PARTS
(LISTED ON THE SERVICE PARTS LIST) ARE ON HAND BEFORE STARTING THE INSTALLATION.
2. FOLLOW THE INSTRUCTIONS INCLUDED WITH THE SPECIFIC BRACKET PACKAGE THAT YOU
ARE USING, TO MOUNT THE BRACKETS TO YOUR VEHICLE.
3. BEFORE ATTACHING THE O-MEGA STEPS TO THE BRACKETS, PLACE THE STEP PADS (ITEM #3)
ON TOP OF THE STEP PLATES ACCORDINGLY FOR YOUR VEHICLE. USING THE HOLES IN THE
STEP PAD AS A GUIDE DRILL (5) 1/8'" PILOT HOLES. ATTACH WITH (5)
(ITEM #7) PROVIDED. REPEAT FOR ALL STEP PADS.
4. INSTALL THE REQUIRED NUMBER OF SQUARE HEAD BOLTS INTO THE DESIGNATED SLOTS IN
THE BOTTOM OF THE STEP PLATES.
5. INSTALL THE END CAPS (ITEM #4) AS SHOWN IN fig. 1, TIGHTENING THE NUTS TO 5 LB FT.
6. POSITION THE O-MEGA STEP ON THE MOUNTING BRACKETS SO THAT THE SQUARE HEAD
SCREWS (ITEM #5) ARE LOCATED IN THE SLOTS OF THE MOUNTING BRACKETS AND THE STEP
IS CENTERED, FRONT TO REAR, ON THE VEHICLE. INSTALL 5/16" SERRATED FLANGE NUTS
(ITEM #6) ON THE SQUARE HEAD SCREWS (ITEM #5) AND TIGHTEN TO 19 LB FT.
ITEM PART NO.
1
2
1
2
3
4
5
6
7

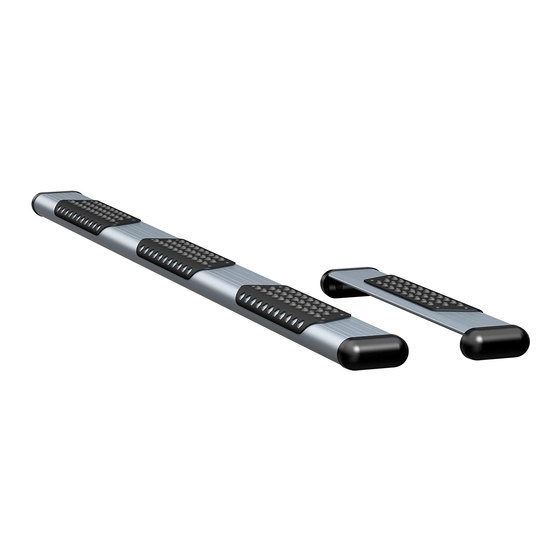

MODEL 583100, 584100 O-MEGA II 6" OVAL STEPS
UNIVERSLA APPLICATION
Service Parts List
QTY
553068 1 EXTRUSION-AL,33.00"OMEGA STP, SILVER
553074 1 EXTRUSION-AL,95.00"OMEGA STP, SILVER
553056 1 EXTRUSION-AL,33.00"OMEGA STP, BLACK
553062 1 EXTRUSION-AL,95.00"OMEGA STP, BLACK
552970 4 ALUM,STP-PAD,BLK,OMEGA-STEP
107956 4 CAP-END,PLSTC,2.95 X 6.70
106880 18 SCREW-SQ HD,5/16-18 X 1,MAGNIGUARD
102680 18 NUT-SERR FLG,HX,SST,WX,5/16-18
107958 24 SCREW-PPH,TEK,#8-18 X 1/2",SST,BZP
8-18X1/2'"
DESCRIPTION
553122 SHEET 1 OF 2 05OCT16
TEK SCREWS
