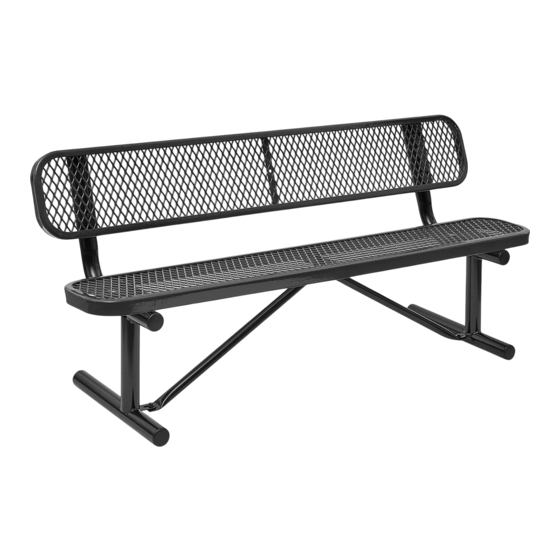

BENCH WITH BACK

Tools NEEDED

½" Wrench
#
QTY DEsCRIPTIoN
1
11
½" HEX HEAD BOLTS
2
22
½" WASHERS
3
11
½" NUTS
4
2
BENCH SEAT/BACK
5
2
LEG BRACES
6
2
LEGS
PAGE 1 OF 2
1-800-295-5510
uline.com

PARTs

4
6
5
1
2
3
0714 IH-2294
