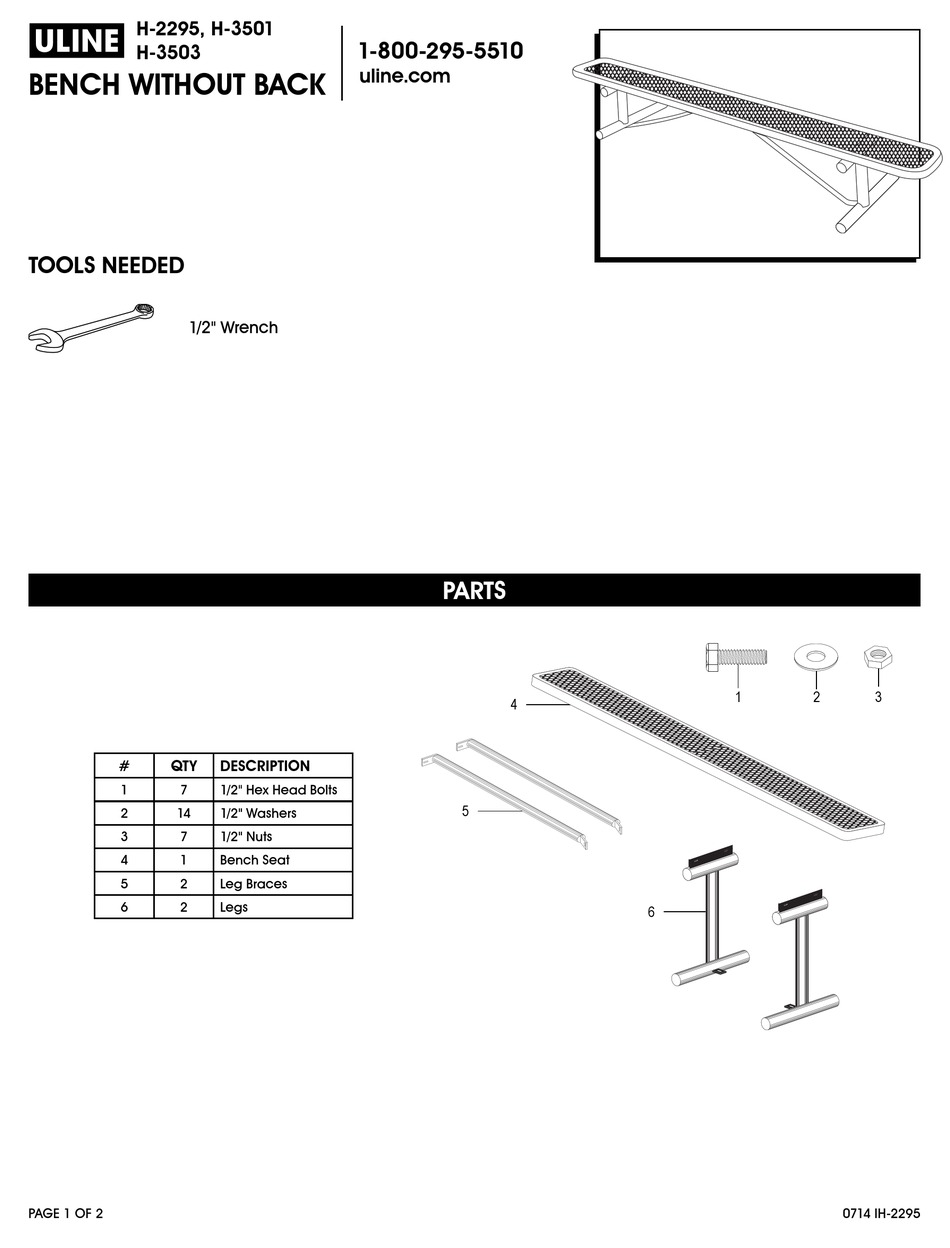

- Page 1 H-2295, H-3501 π 1-800-295-5510 H-3503 uline.com BENCH WITHOUT BACK TOOLS NEEDED 1/2" Wrench PARTS DESCRIPTION 1/2" Hex Head Bolts 1/2" Washers 1/2" Nuts Bench Seat Leg Braces Legs PAGE 1 OF 2 0714 IH-2295...
- Page 2 ASSEMBLY 1. Attach the bench seat (A) to a leg (B). Make sure the leg is on the outside of the bench seat and the brackets on the leg are facing inward. (See Figure 1) 2. Loosely attach the leg to the bench seat using one bolt, two washers and a nut (C).
