π
H-4337

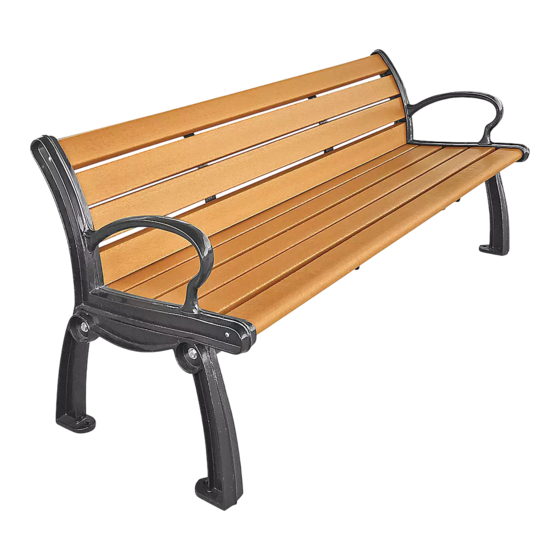

plaza bencH
tools needed
Drill with Phillips Head Bit
1½" Screw x 4
1¼" Screw x 36
Bolts x 4
PAGE 1 OF 2
1-800-295-5510
uline.com
Ratchet 7mm
Concrete Anchors x 4
Washers x 4
Bench Planks x 7
Parts
Side Frame x 2
Cross Support Rod x 2
assembly
1.
Loosely attach cross support rods to side frames
using bolts and washers. (See Figure 1)
Figure 1
Rounded Edge Bench Planks x 2
Brace x 2
1213 IH-4337
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for U-Line PLAZA H-4337
Summary of Contents for U-Line PLAZA H-4337
- Page 1 π H-4337 1-800-295-5510 uline.com plaza bencH tools needed Drill with Phillips Head Bit Ratchet 7mm Parts 1½" Screw x 4 1¼" Screw x 36 Concrete Anchors x 4 Brace x 2 Side Frame x 2 Bolts x 4 Washers x 4 Cross Support Rod x 2 Bench Planks x 7 Rounded Edge Bench Planks x 2...
- Page 2 assembly continued 2. Place the braces equal distance apart on the cross support rods. (See Figure 2) note: it may be helpful to have a second person assist with this step as braces will not stand up on their own. Figure 2 3.
