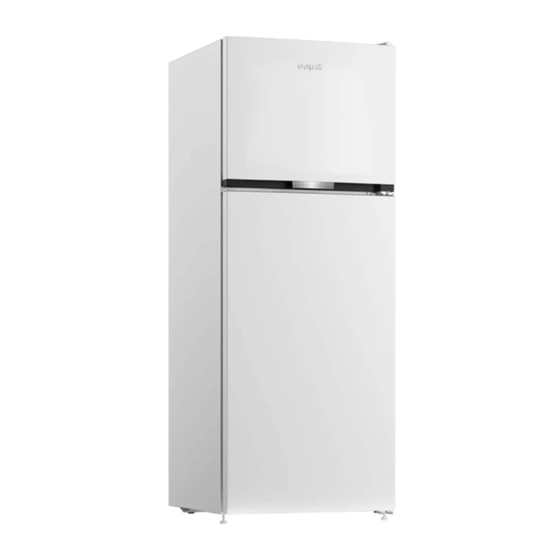

- Page 1 Refrigerator User Manual 570475MB 58 6844 0000/AE EN...
- Page 2 Dear Customer, Please read this manual before using the product. Thank you for choosing this product. We would like you to achieve the optimal efficiency from this high quality product which has been manufactured with state of the art tech- nology.
-
Page 3: Table Of Contents
1 Safety Instructions 6 Operation of the Product 6.2 Indicator panel ..... . 14 1.1 Purpose of usage ....3 1.2 Safety of children, vulnerable persons and 6 Operation of the Product pets. -
Page 4: Safety Instructions
Safety Instructions • This section includes the safety or terraces. Exposing the product to rain, snow, instructions necessary to prevent sunlight and wind may cause risk of fire. the risk of personal injury or material 1.2 Safety of children, damage. vulnerable persons and pets • Our company shall not be held • This product may be used by children... -
Page 5: Electrical Safety
Important safety and environment instructions • Do not hold the product from its door 1.3 Electrical safety while handling the product. • The product shall not be plugged • Be careful not to damage the cooling into the outlet during installation, system and the pipes while handling maintenance, cleaning, repair, and the product. -
Page 6: Operational Safety
Important safety and environment instructions • Place the power cord and hoses (if available) of • The more refrigerant a refrigerator the product so that they shall not cause a risk of contains, the bigger its installation tripping over. room shall be. In very small rooms, • Penetration of humidity to live parts or to the a flammable gas-air mixture may power cord may cause short circuit. -
Page 7: Maintenance And Cleaning Safety
Important safety and environment instructions Cans or bottles may explode. Risk of refrigerator while the racks are injury and material damage! empty only. Danger of physical injury! • Do not use or place materials • Do not place objects that may fall/ sensitive against temperature tipped over on the product. -
Page 8: Homewhiz
Do not use a wet or damp piece Products, From:www.arcelik.com.tr of cloth to clean the plug. Otherwise, risk of fire or electric shock may occur. -
Page 9: Environmental Instructions
Environmental instructions 2.1 Compliance with the WEEE Directive and Disposing of the Waste Product: This product complies with EU WEEE Directive (2012/19/EU). This product bears a classification symbol for waste electrical and electronic equip- ment (WEEE). This symbol indicates that this product shall not be disposed with other house- hold wastes at the end of its service life. -
Page 10: Your Refrigerator
Your Refrigerator 1- Freezer compartment 10- The dairy (cold storage) bin 2- Cooler compartment door shelves 11- Filter 3- Egg Holder 12- Glass shelves 4- Water fountain 13- Fan 5- Legumes dispenser 14- Icematics 6- Cooler compartment small door shelves 15- Freezer compartment glass shelf 7- Bottle shelf 16- Freezer compartment... -
Page 11: Installation
Installation WARNING: The manufacturer assumes Read the “Safety Instructions” section first! no responsibility for any damage caused 4.1 The right place for installation by the work carried out by unauthorized Your product requires adequate air circulation to persons. function efficiently. If the product will be placed WARNING: The product's power cable in an alcove, remember to leave at least 5 cm... -
Page 12: Adjustment Of The Feet
Installation 4.5 Electrical connection WARNING: Do not use extension or multi sockets in power connection. WARNING: Damaged power cable must be replaced by Authorized Service. • Our firm will not assume responsibility for any damages due to usage without earthing and power connection in compliance with national regulations. -
Page 13: Preparation
Preparation • In case of multiple options are present glass Read the “Safety Instructions” section first! shelves must be placed so that the air outlets at the backwall are not blocked, prefably air outlets are remaining below the glass shelf. 5.1 What to do for energy saving This combination may help impoving air mehmet... -
Page 14: Operating The Product
Operating the Product • Do not use any mechanical tools or any other tools than the recommendations of the manufacturer to speed up the thawing operation. • Do not use parts of your refrigerator such as the door or drawers as a support or a step. This may cause the product to trip over or its components to be damaged. -
Page 15: Operation Of The Product
Operation of the Product Read the “Safety Instructions” section first! 6.2 Indicator panel Indicator panels may vary depending on the model of your product. Audial and visual functions of the indicator panel will assist in using the refrigerator. 1. Fault Condition Indicator 5. - Page 16 Using the product 1. Fault Condition Indicator 4. Cooling Compartment OFF (Vacation) Function Key This indicator ( ) shall be active when your To activate vacation function ( ), press the refrigerator cannot perform adequate cooling button for 3 seconds. The vacation mode will be or in case of any sensor error.
-
Page 17: Operation Of The Product
Operation of the Product Read the “Safety Instructions” section first! 6.3 Indicator panel Indicator panels may vary depending on the model of your product. Audial and visual functions of the indicator panel will assist in using the refrigerator. Read the “Safety Instructions” section first! 6.4 Temperature setting button 6.5 Fast freeze The interior temperature of your refrigerator... -
Page 18: Vacation Function
Using the product 6.6 Vacation function If the doors of the product are not opened for 12 hours after the temperature control knob is switched to the hottest position, then the vacation function will be activated automatically. To cancel the function, change the knob setting. It is not recommended to store food in cooler compartment when the vacation function is active. -
Page 19: Humidity Controlled Crisper (Fullfresh+)
Using the product 6.7 Humidity controlled 6.8 Blue light/VitaminZone crisper (FullFresh+) *May not be available in all models (Optional) For the blue light, Thanks to the humidity controlled crisper, Fruits and vegetables stored in the crispers that vegetables and fruits may be stored for a longer are illuminated with a blue light continue their period at an environment with ideal humidity photosynthesis by means of the wavelength... -
Page 20: Anti-Odour Module
Using the product 6.9 Anti-Odour Module (OdourFresh +) (This feature is optional) Anti-odour module removes odour that occur inside your refrigerator before it permeates on the surfaces. Thanks to this module positioned on the roof the fresh food compartment, bad odour is removed while the air is actively passed through the odour filter, and the air cleaned in the filter is directed back to the fresh food compartment. -
Page 21: Ice Bucket
Using the product 6.10 Ice bucket 6.11 Ice maker (This feature is optional) (This feature is optional) Ice bucket allows you take ice easily from the Ice maker allows you take ice easily from the refrigerator. refrigerator. Using the ice bucket Using the ice bucket 1. -
Page 22: Using The Water Fountain
Using the product 6.13 Using the water fountain 6.14 Filling the water tank of the water fountain (This feature is optional) Open the lid of the water tank as shown in the figure. Fill in pure and clean drinking water. The first few glasses of water taken from Close the lid. -
Page 23: Filling The Water Tank Of The Water Fountain
Using the product 6.16 Filling the water tank of the water fountain Water tank filling reservoir is inside the door shelf. 1. Open the lid of the reservoir. 2. Fill the reservoir with clean drinking water. Refrigerator / User Guide 22 / 29 EN... -
Page 24: Cleaning The Water Tank
Using the product 6.18 Drip tray 3. Close the lid of the reservoir. The water dripping from the water fountain Do not fill the water tank with fruit accumulates on the drip tray. juice, fizzy beverages, alcoholic Remove the plastic strainer as shown in the figure. beverages or any other liquids incompatible for use in the water Wipe the collected water with a dry and clean... -
Page 25: Freezing Fresh Food
Using the product 6.19 Freezing fresh food • Make sure the food items are packed before putting in the freezer. Use freezer holders, • Activate the fast freezing function by pressing tinfoil and damp-proof paper, plastic bag the «Fast Freeze» button 24 hours before load- or similar packaging materials instead of ing the food to be frozen. -
Page 26: Deep Freezer Details
Using the product 6.21 Deep freezer details 6.22 Placing food As per the IEC 62552 standards, at 25°C room Freezer Various frozen goods including temperature, the freezer must have the capacity compartment meat, fish, ice cream, to freeze 4,5 kg of food items at -18°C or lower shelves vegetables etc. -
Page 27: Maintenance And Cleaning
Maintenance and cleaning compartment. Do not clean, and never apply oils WARNING: Read the “Safety or similar materials. Instructions” section first! • Use a mildly dampened micro-fiber cloth to clean the external surface of the product. WARNING: Unplug the refrigerator Sponges and other types of cleaning clothes may cleaning it. -
Page 28: Preventing Odours
Maintenance and cleaning For routine cleaning processes, *non-alkaline and non-corrosive water based cleaning products shall be used. In order to have a longer service life of this coating, alkaline and corrosive substances shall not be used during cleaning. A tempering process is applied to increase the resistance of these glasses against impacts and breakage. -
Page 29: Troubleshooting
Troubleshooting Check this list before contacting the service. Doing • In case of sudden power failure or pulling so will save you time and money. This list includes the power plug off and putting back on, the frequent complaints that are not related to faulty gas pressure in the product's cooling system workmanship or materials. - Page 30 Troubleshooting The food items kept in cooler compartment • The new product may be larger than the drawers are frozen. previous one. Larger products will run for longer periods. • The cooler compartment temperature is • The room temperature may be high. >>> set to a very low degree.
- Page 31 Troubleshooting There is sound of wind blowing coming from • The food items may be in contact with the the product. upper section of the drawer. >>> Reorganize the • The product uses a fan for the cooling food items in the drawer. process.
- Page 32 Arçelik may not be held responsible for safety issues that may arise because of repairs or attempts not carried out in accordance with instructions specified at user manuals or located at https://www.arcelik. com.tr/destek and performed on parts other than parts contained at current list of parts accessed from https://www.arcelik.com.tr/destek.
