U-Line S-15188 Assembly

S-15188

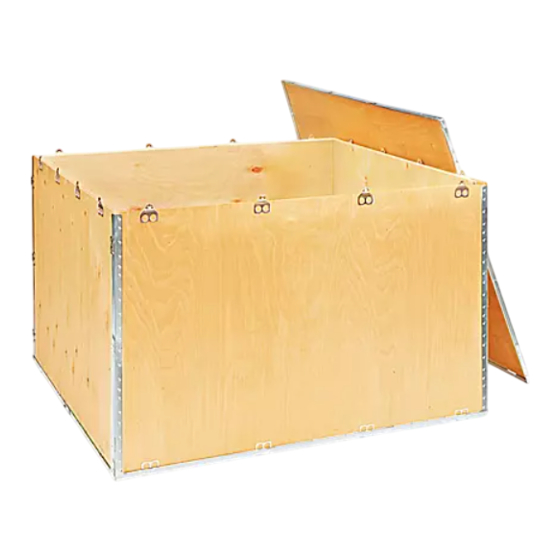

WOOD CRATE
TOOLS NEEDED
Hammer
Screwdriver
1. Elevate base so that tabs can be inserted without
damage. (See Figure 1)
Figure 1
2. Secure one long panel to base. (See Figure 2)
Figure 2
3. Secure short panels to base and sides of long panel.
(See Figure 3)
Figure 3
PAGE 1 OF 3
1-800-295-5510
uline.com
ASSEMBLY
4. Secure second long panel to base and two short
panels. (See Figure 4)
Figure 4
5. Ensure all panels are level, then place lid on top.
(See Figure 5)
Figure 5
6. Bend back all tabs using a screwdriver or a hammer.
(See Figure 6)
Figure 6
Para Español, vea página 2.
Pour le français, consulter la page 3.
0822 IS-15188
