U-Line S-1135 Quick Start Manual

π
S-21135

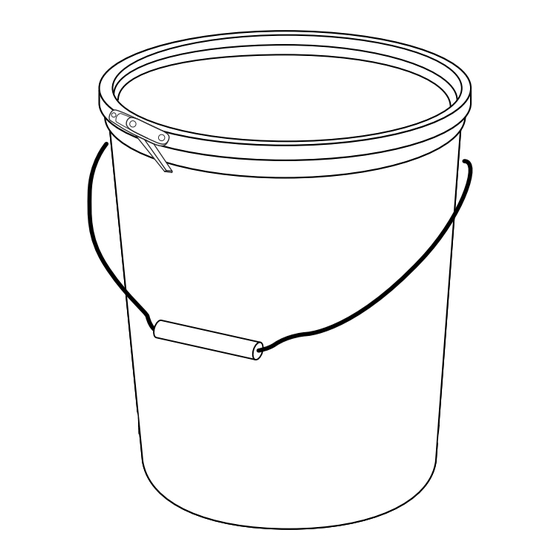

5-GALLON LEVER
LOCK LID
CLOSING INSTRUCTIONS
1. Place the cover on the pail. Press down along the
edges and in the center of the cover to ensure that it
is seated properly. (See Figure 1)
Ring Seal Cover Properly Seated
2. Before placing the lever lock ring on the pail, it must
be oriented correctly. There is an "Up Indicator" with
an arrow stamped into the base of the handle. Orient
the ring with the arrow pointing up. (See Figure 2)
Base of
the Handle
PAGE 1 OF 2
1-800-295-5510
uline.com
Figure 1
Figure 2
Up Indicator
UP
INSTRUCTIONS
3. Open the lever lock ring as wide as possible, then slip
it over the pail. Be sure that the ring is placed on the
pail in a manner that allows it to be closed by moving
the lever clockwise onto the ring. (See Figure 3)
4. Orient the lever on the ring to be the opposite of the
seam weld (180 degrees from the seam weld).
5. Apply downward pressure to the cover and release
the lever, allowing the ring to slide onto the cover/
curl edge. (See Figure 4)
NOTE: The ring must encompass the cover/curl
around the entire edge of the pail.
Figure 3
Lever Lock Ring
in Open Position
Ring Seal Cover
Figure 4
Ring Seal
Cover
Lever Lock Ring
Cover/Curl Edge
0316 IS-21135
