Suptek MD6821 Installation Manual

INSTALLATION MANUAL
UNPACKING INSTRUCTIONS
·Carefully open the carton, remove contents and lay out on cardboard or
other protective surface to avoid damage.
·Check package contents against the supplied parts list in the next page
to assure that all components wete received undamaged. Do not use
damaged or defective parts.
·Carefully read all instructions before attempting installation.
IMPORTANT SAFETY INFORMATION
·
Install and operate this device with care. Please read this instruction
before installation, and carefully follow all instructions contained herein.
Use proper safety equipment during installation.
·Please call a qualified installation contractor for help if you don't
understand these directions or have any doubts about the safety of the
installation.
Do not use this product for any purpose or in any configuration not
explicitly specified in this instruction. We hereby disclaims any and all
liability for injury or damage arising from incorrect assembly, incorrect
mounting, or incorrect use of this product.

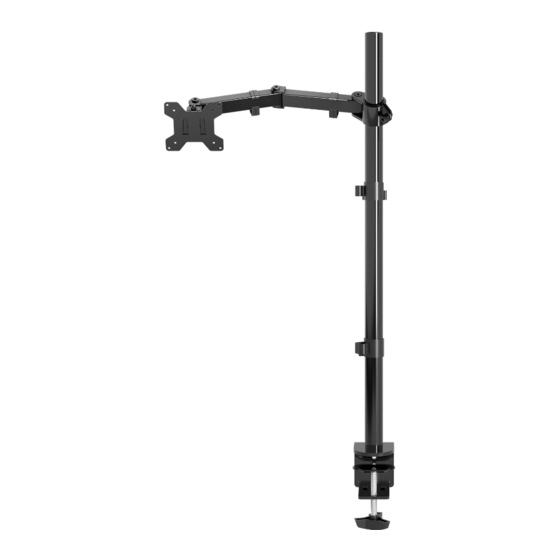

This monitor desktop mount must be securely
attached to the horizontal desk. If the mount isnot
properly installed it may fall, resulting in possible
WARNING
injury and/or damage.

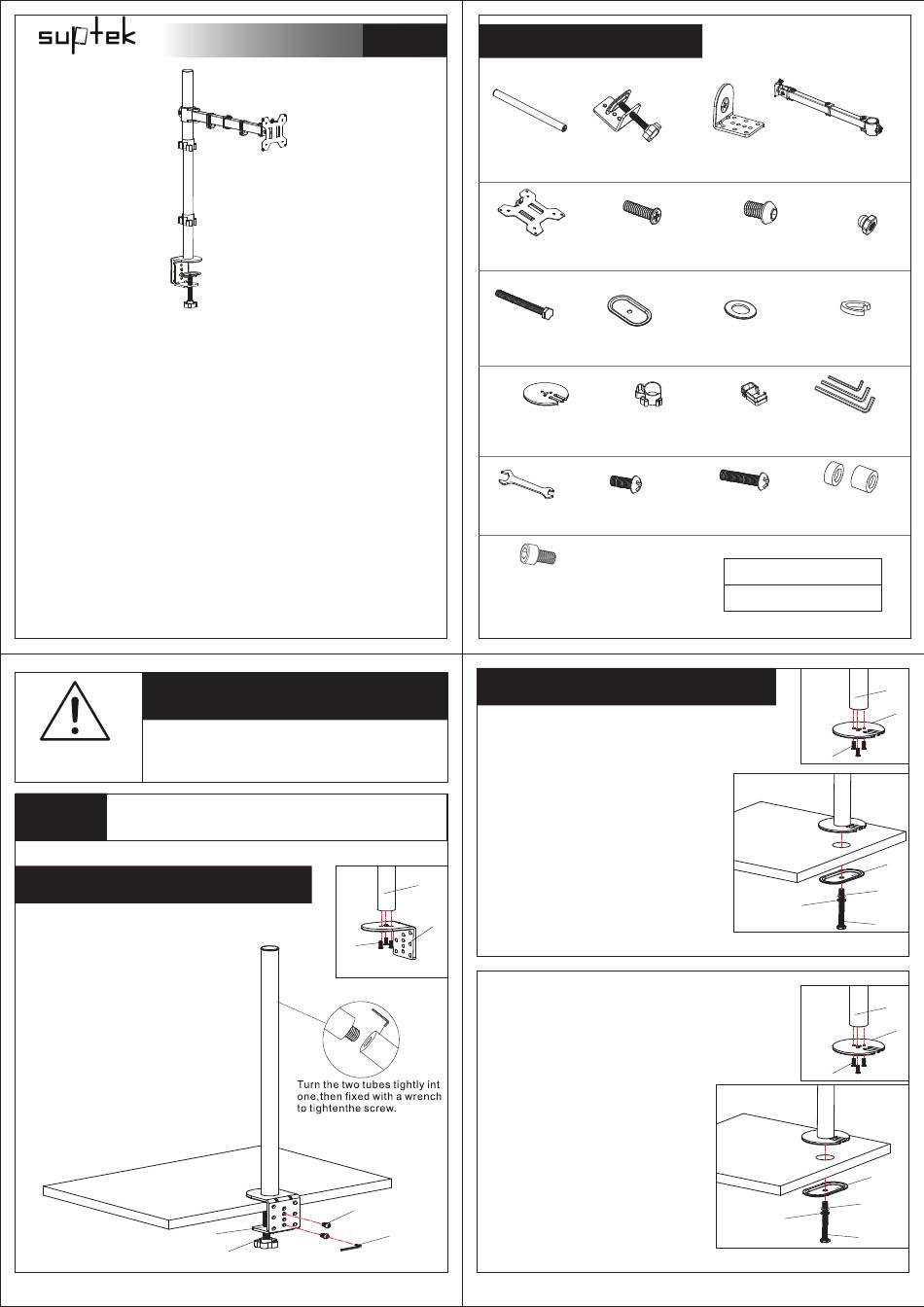

Step 1
Install the pole to the desktop
Option A: desk clamp install
1. Install the "c"-clamp brace (c) to the
pole (a) using 3pcs M5x16 bolts (f), and
tighten using the allen key (o) , see figure
1.
2. Install the "c"-clamp (b) to the pole
assembly according to the thickness of
the desktop. The thickness can be
changed of three positions. Connect it
using 2 pcs M8x12 bolts (g), and tighten
using the allen key (o).Tighten the
"c"-clamp to the desktop using the
plastic knob, see figure 2.
figure 2
plastic knob
MD6821
CAUTION!
f
figure 1
g
b
Supplied parts list
(2) pole-a
(1) VESA plate-e (3) M5x16 bolt-f
(1) M10 bolt-i
(1) grommet base
plate-m
(1) wrench-p
bolt
(3) M5X16
Option B: grommet base install
Existing grommet hole installation
If the existing grommet hole comes with a plastic
protector, remove it to ensure a flat surface before
installing the desk mount.
1. Install the grommet base plate (m)
to the pole (a) using 3 pcs M5x16
bolts (f) , and tighten using the allen
key (o), see figure 3.
2. Position the pole (a) on the
mounting surface and secure using
a
the suport plate (j), M10 Washer (k),
spring washer (I), and M10 bolt (i).
c
fasten the M10 bolt using provided
wrench (p), see figure 4.
Self Drilled Grommet Hole Installation
1. Position the pole (a) on the
mounting surface and amark the
center hole. Drill a 3/8"(10mm)
diameter hole at the marked position
through the mounting surface.
2. Install the grommet base plate (m) to
the pole(a) using 3 pcs M5x16 bolts (f),
and tighten using the allen key (o), see
figure 5.
3. Position the pole (a) on the mounting
surface and secure using the support
plate (j). M10 washer (k), spring washer
(l) and M10 bolt (i), fasten the M10 bolt
o
using provided wrench (p), see figure 6.
(1) clamp-b (1) clamp brace-c
(2) M8x12 bolt-g
(1) support plate-j (1) M10 washer-k (1) spring washer-l
(2) wire clip-n1 (2) wire clip-n2
(4) M4X12 bolt-q (4) M4X30 bolt-r
Phillips Screwdriver
-t
figure 6
(1) swivel arm-d
(1) nut-h
(1) allen key-o
(8) M8 spacer-s
Tools Required
figure 3
a
m
f
j
k
figure 4
l
i
figure 5
a
m
f
j
k
l
i
