Suptek A1+ Quick Manual

Full-featured tv bracket

Advertisement

Quick Links

Full-featured TV Bracket
For 23''-55''
6-48CM
Model A1+

Installation tools

Screwdriver
Metal Detector
Pencil
Impact Drill
10MM Drill Bit
Wrench

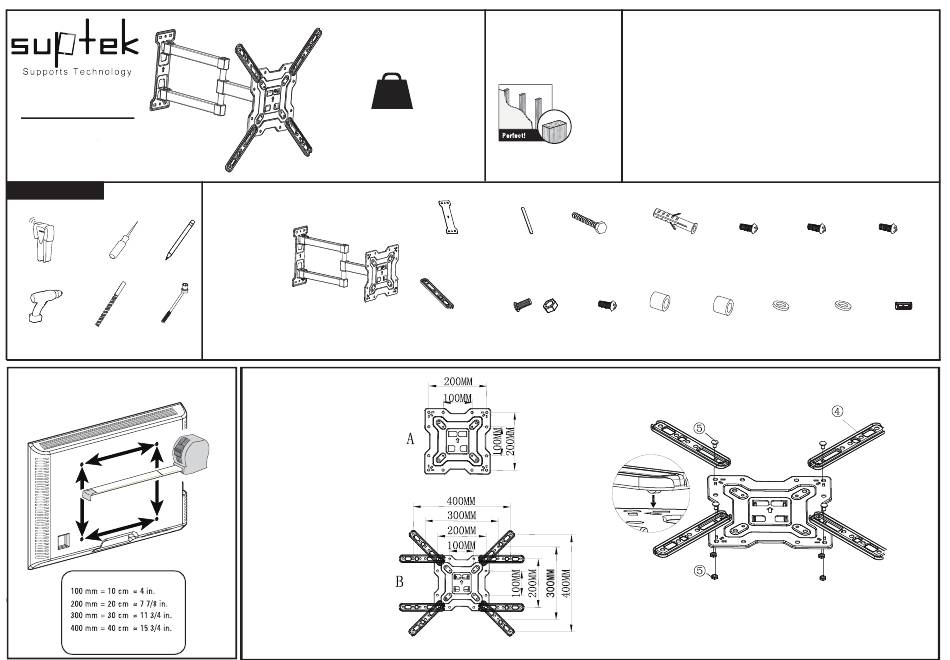

Installation step 1

Confirm the distance of the
hole on the back of your TV.
Please confirm that your TV
weight do not exceed 45KG.
100 lbs.
(45 kg)
Warning: Please do not exceed
the maximum load-bearing
capacity, which may cause
the equipment falling.

Parts List

WARNING:
This product contains
very small parts and is
fatal if swallowed.
Please check the
completeness of the
package before
installation. If there
are any damaged or
missing parts, please
①Bracket*1
contact our customer
service for your solution.

Installation step 2

Please confirm whether your
TV is using A panel or B panel.
If your TV hole pitch is
200MM*200MM, please
use A panel.

What material is your wall made of?

Is it a wood wall?
②Punched cardboard*1
③Cable tie*3
(4)Self-tapping
④Expanding slice*4
⑤Small screw package M16*1
Carriage screw 4*M6 Nut*4
.
Please read the instructions thoroughly and have a good understanding of the entire
installation process. Reading the instructions for your TV to see whether there have
any special instructions for using the brackets or not.
WARNING: Avoid potential personal injury and property damage.
1. Please check your wall fastness, suitable for general wood and brick, not
plasterboard wall
2. The wall must be able to carry 5 times the weight (total of the TV plus the bracket)
3. Our company does not bear the loss and damage caused by improper use.
(4)Plastic expansion
(4)M4*20 screw
screw-A
-B
-C
(4)M8*25
(4)Φ8*14*6
(4)Φ8*14*11
(4)Φ5 gasket
screw -F
stepping foot
stepping foot
-G
-H
Please confirm whether your TV is using A panel or B panel.
If your TV hole pitch is 200MM*200MM, please use A panel.
If you configure the B panel, please attach the provided
expanding slice④to connect the panel with the screw⑤.
(4)M5*25 screw
(4)M6 screw*25
-D
-E
(4)Φ6 gasket
(1)Level-K
-I
-J
