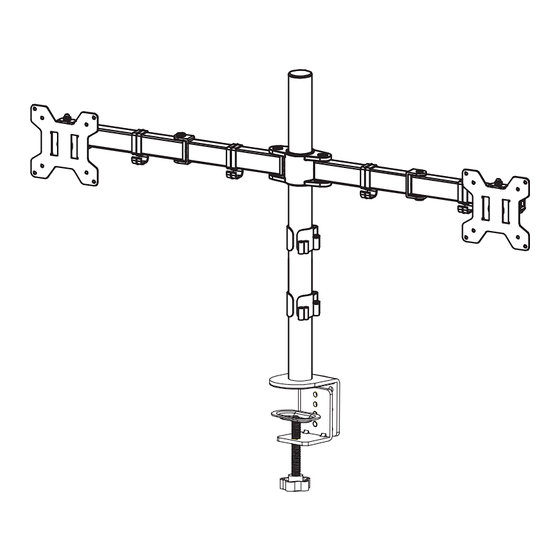

Suptek MD6842 Installation Instruction

Step 3 Attach the VESA Plate to the Monitor
q
monitor Secure the back of the monitor
Fixed on the back of the
with a washer
Step 4 Mount the Monitor on the Rotating Arm
d
Insert the monitor into the head Screw and lock the monitor with
of the rotating arm screws
Step 5 Adjust the Angle of Monitor
s
r
o
Adjust the head of the monitor as
necessary to prevent the head of
the monitor from sagging.
Step 6 Manage the Wires and Store the Allen Keys on Wire Clip
o
h
Use the supplied Allen Key(o) to do
the necessary adjustment.
Thank you for choosing our products!
o
The height of the monitor can be
adjusted by adjusting the tightness
of screw.
Carefully open the carton, remove contents and lay out on cardboard or other
protectivesurface to avoid damage.
Check package contents against the Supplied Parts List in the next page to assure thatall
components wete received undamaged. Do not use damaged or defective parts.
n1
Carefully read all instructions before attempting installation.
The wire is fixed with a clamp (n1).
Installation instruction

UNPACKING INSTRUCTIONS

IMPORTANT SAFETY INFORMATION

Install and operate this device with care. Please read this instruction before installation,
and carefully follow all instructions contained herein. Use proper safety equipment during
installation.
Please call a qualified installation contractor for help if you don't understand these
directions or have any doubts about the safety of the installation.
Do not use this product for any purpose or in any configuration not explicitly specified in
this instruction. We hereby disclaims any and all liability for injury or damage arising from
incorrect assembly, incorrect mounting, or incorrect use of this product.
MD6842
