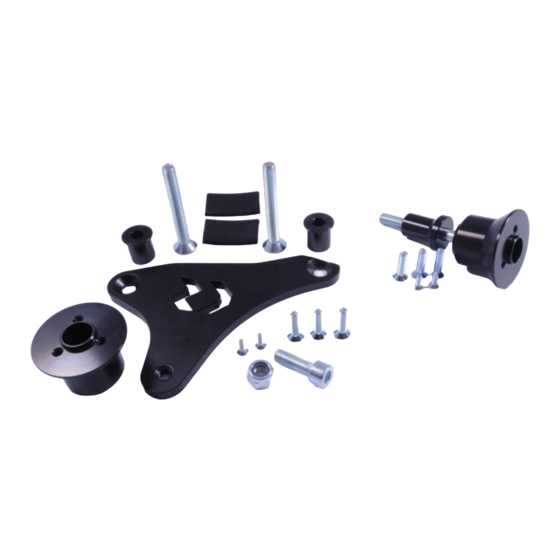

Kit for Left Side
ID
Description
1
Slider adapter
2
Screw M10x30mm
3
Safety nut M10
4
Dural. sleeve d=24mm
5
Steel adapter
6
Screw M10x80mm
7
3M Tape
8
Bolt M6x25
9
Bolt M4x12
4
4
1
4
Cat.No.
Pcs
317POM
1
882
1
810
1
1332
2
757
1
853
2
2
877
3
876
2
6 6
6
7
9
3
5
1
RDMOTO CZECH REPUBLIC
B18S
BMW S1000RR 2019-
Kit for Right Side
ID
Description
1
Slider adapter
2
Screw M10x85mm
3
Dural. sleeve d=34mm
4
Bolt M6x25
5
Bolt M4x12
4
2
3
4
5
8
2
info@rdmoto.cz
www.rdmoto.cz
Cat.No.
Pcs.
317POM
1
981
1
1333
1
877
3
876
2
1
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for RDMOTO B18S
Summary of Contents for RDMOTO B18S
- Page 1 RDMOTO CZECH REPUBLIC info@rdmoto.cz www.rdmoto.cz B18S BMW S1000RR 2019- Kit for Left Side Kit for Right Side Description Cat.No. Description Cat.No. Pcs. Slider adapter 317POM Slider adapter 317POM Screw M10x30mm Screw M10x85mm Safety nut M10 Dural. sleeve d=34mm 1333 Dural. sleeve d=24mm...
- Page 2 RDMOTO CZECH REPUBLIC info@rdmoto.cz www.rdmoto.cz Right Side 1. Unscrew the original bolt as shown on attached picture. 2. Bolt ID.2 insert into the adapter ID.1 + ID.3. This set mounting the place on frame. 3. Place slider and tighten it by bolts ID.4.
- Page 3 RDMOTO CZECH REPUBLIC info@rdmoto.cz www.rdmoto.cz Left Side: 1. Dismount the hood and original bolts as shown on pictures. 2. Take the ID.5 steel adapter and insert ID.6 screws. 3. From the rear adapter side, equip screws with ID.4 dural. sleeves.
