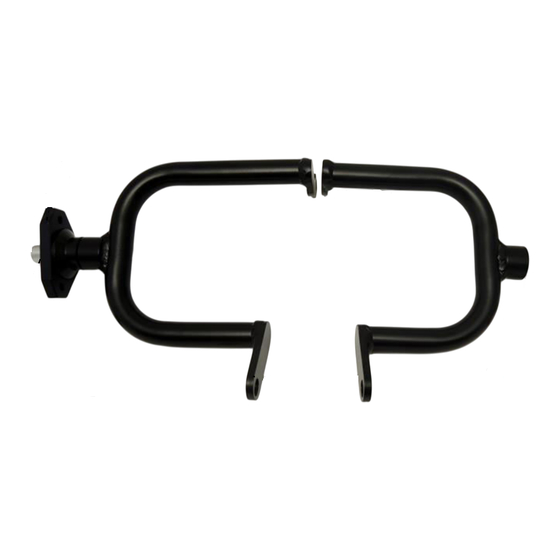

RDMOTO A9SD Manual

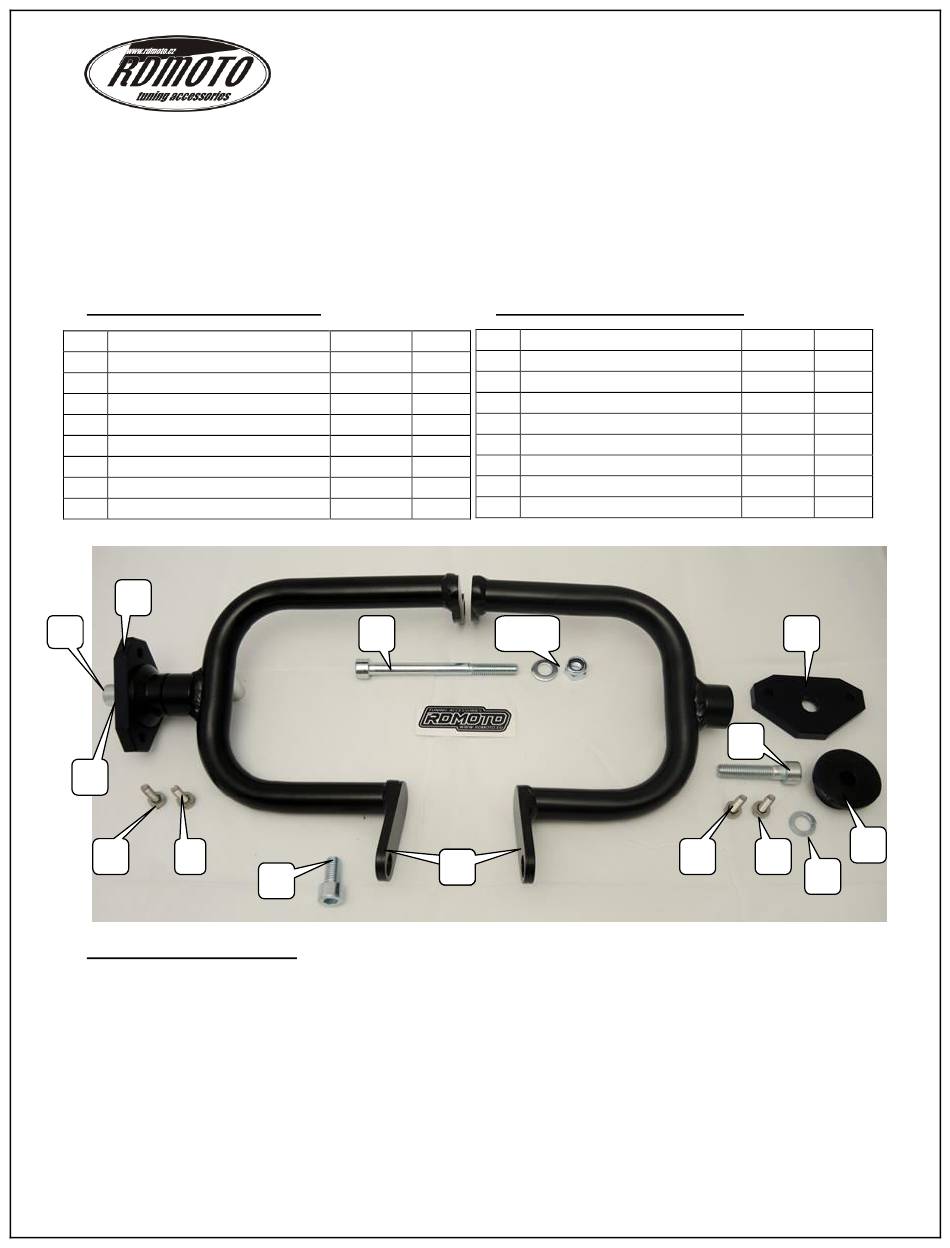

Mounting Kit - Left Side:
ID Description
1 Dural. adapter SLD
2 Bolt M10x45
3 Bolt M10x20
4 Bolt M10x110
5 Tube holder
6 Bolt M8x25
7 Washer M8
8 Spring washer M10
1
2
8
7 6
Mounting instructions:
1. Remove left and right fairings.
2. Remove original bolt M10 in the front of the engine.
3. Remove original bolt from the frame on the left side (red arrow, picture 1).
4. Fasten the holder with the bolt ID.3 and bolt ID.4
5. Remove original bolt on the right side.
6. Use the original bolt for mounting on the right side. Use a nut ID.3 and washer
ID.4 for front mounting.
7. Attach fairings back to the motorcycle.
8. Use the bolts ID.2 to install the dural. adapters ID.1. Use bolts ID.6 to secure
the sliders. Attach the caps using bolts ID.7.
Cat.No Pcs
537 1
848 1
819 1
879 1
698 1
815 2
800 2
801 1
4
3
Aprilia RS4 125
Mounting Kit - Right Side
ID Description
1 Dural. adapter SLD
2 Bolt M10x45
3 Nut M10
4 Washer
5 Tube holder
6 Bolt M8x25
7 Washer M8
8 Spring washer M10
3,4
5 5
1
RDMOTO CZECH REPUBLIC
info@rdmoto.eu
www.rdmoto.eu
A9SD
:
Cat.No
537
848
810
804
699
815
800
801
1
2
6 7
8
Pcs
1
1
1
1
1
2
2
1
1
