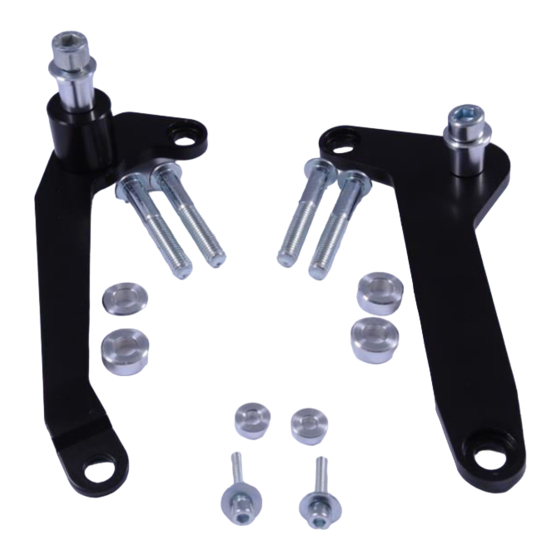

Kit for Left Side
ID
Description
1
Steel Adapter
2
Dural. sleeve d=8mm
3
Screw M10x60mm
4
AL insertion M10
5
Screw M10x70mm
6
Dural. sleeve d=5mm
7
Screw M5x25mm
8
Washer M5 - large
9
Dural. sleeve d=30mm
BMW S1000R 2017-
Cat.No Pcs
ID
758
1
1
1334
2
2
1048
2
3
X1
1
4
851
1
5
1335
1
6
1036
1
7
1057
1
8
3
1
1
RDMOTO CZECH REPUBLIC
B15
Kit for Right Side
Description
Steel Adapter
Dural. sleeve d=8mm
Screw M10x60mm
AL insertion M10
Screw M10x40mm
Dural. sleeve d=5mm
Screw M5x25mm
Washer M5- large
info@rdmoto.cz
www.rdmoto.cz
Cat.No
Pcs
759
1
1334
2
1048
2
X1
1
854
1
1335
1
1036
1
1057
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for RDMOTO B15
Summary of Contents for RDMOTO B15
- Page 1 RDMOTO CZECH REPUBLIC info@rdmoto.cz www.rdmoto.cz BMW S1000R 2017- Kit for Left Side Kit for Right Side Description Cat.No Pcs Description Cat.No Steel Adapter Steel Adapter Dural. sleeve d=8mm 1334 Dural. sleeve d=8mm 1334 Screw M10x60mm 1048 Screw M10x60mm 1048 AL insertion M10...
- Page 2 RDMOTO CZECH REPUBLIC info@rdmoto.cz www.rdmoto.cz Right Side: 1. Dismount rear motorcycle hood. 2. Dismount the original screws. 3. Prepare ID.1 steel adapter and ID.3 screws, insert the screws into adapter and from other side, put on the ID.2 dural. sleeves.
- Page 3 RDMOTO CZECH REPUBLIC info@rdmoto.cz www.rdmoto.cz Left Side : 1. Dismount rear motorcycle hood. 2. Dismount the original screws. 3. Prepare ID.1 steel adapter and ID.3 screws, insert the screws into adapter and from other side, put on the ID.2 dural. sleeves.
