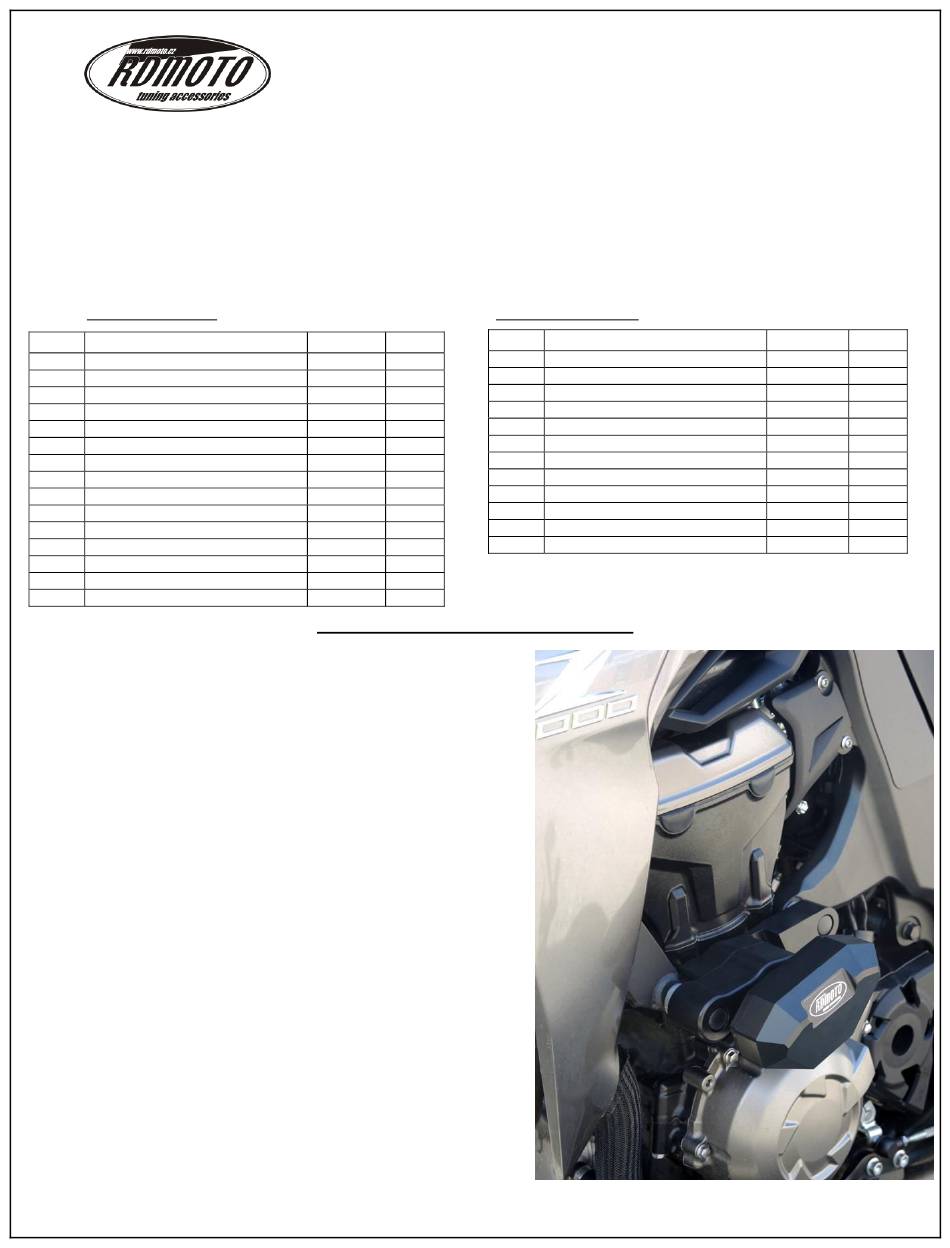

RDMOTO K28SD Quick Start Manual

Kit for left side:
ID. Description
1 Slider RDmoto
2 Adapter for SLD d= 15mm
3 Washer M8
4 Bolt M8x25
5 Bracket for SLD
6 Bolt M10x45
7 Dural. adapter
8 Dural. adapter
9 Dural. cylinder d=8mm
10 Dural. cylinder d=11mm
11 Bolt M10x100x1,25mm
12 Bolt M10x80x1,25mm
13 Bolt M6x30mm
14 Plastic cover
15 3M tape
1. Dismantle original bolt from frame.
2. Connect duralumin adapters (ID 7 and 8)
use bolts (ID 13).
3. Insert bolts (ID 11 and 12) into the
adapters, put on the bolts dural. cylinders
(ID. 9 and 10) and mounting this set on the
frame.
4. Put on the bolts plastic cover (ID 14)
sticking 3M tape on the frame, wher is
touching point between frame and
dural.adapters.
5. By bolt (ID. 6) mounted dural. adapter for
slider (ID. 2) and steel bracket (ID 5).
6. Mounting slider (ID. 1) by bolts (ID. 4) and
washers (ID3).
We recommend: Use the glue of threads-
medium strong (blue color).
Kawasaki Z1000SX 2011-
Cat.no. QTY
SLD 1
DV 9 1
800 2
815 2
537 1
848 1
548 1
550 1
462 1
461 1
892 1
920 1
863 2
X4 2
1
Instruction to assemble- left side:
1
RDMOTO CZECH REPUBLIC
K28SD
Kit for right side:
ID Description
1 Slider RDmoto
2 Adapter for SLD d= 15mm
3 Washer M8
4 Bolt M8x25
5 Bracket for SLD
6 Bolt M10x45
7 Dural. adapter
8 Dural. cylinder d=19mm
9 Bolt M10x100x1,25mm
10 Bolt M10x110x1,25mm
11 Plastic cover
12 3M tape
info@rdmoto.cz
www.rdmoto.cz
Cat.no QTY
SLD 1
DV 9 1
800 2
815 2
537 1
848 1
549 1
460 2
892 1
928 1
X4 2
1
