RDMOTO CF27 Quick Start Manual

Kit for the left side
No. Description

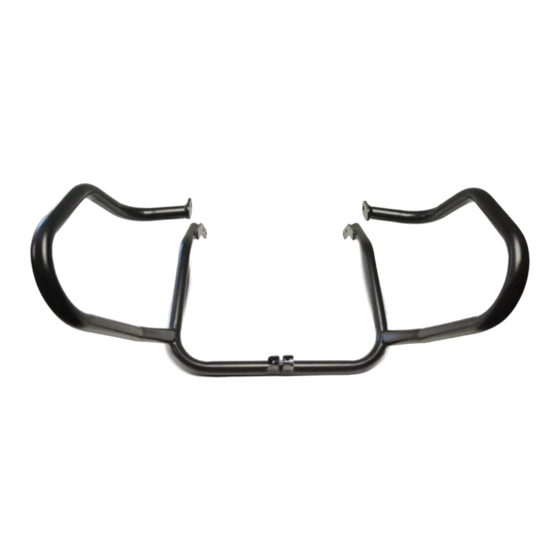

1 Crash bar
2 Bolt M8x30mm
3 Bolt M8x50mm
4 Pad M8 (spring)
5 Cover on head of bolt
6 Dural. cylinder d=13mm
7 Dural. cylinder d=16mm
8 Plastic plug into the tube
9 Advertising sticker RDmoto
Installation:
Make the installation according to the instruction on the below attached photos. The
installation of the left and right side is the same.
Warning – we recommend to use safety glue on threads of all bolts (moderate
strong – blue colour).
Suzuki DL1000 V-Strom
Kit for the right side
Cat.no. Pcs No. Description
1 1
834 1 2
837 3 3
800 3 4
X5 3 5
86 2 6
252 1 7
X19 1 8
1
1
RDMOTO CZECH REPUBLIC
CF27
2002-2007
Crash bar
Bolt M8x50mm
Pad M8 (spring)
Cover on head of bolt
Dural. cylinder d=13mm
Dural. cylinder d=16mm
Plastic plug into the tube
Advertising sticker RDmoto
