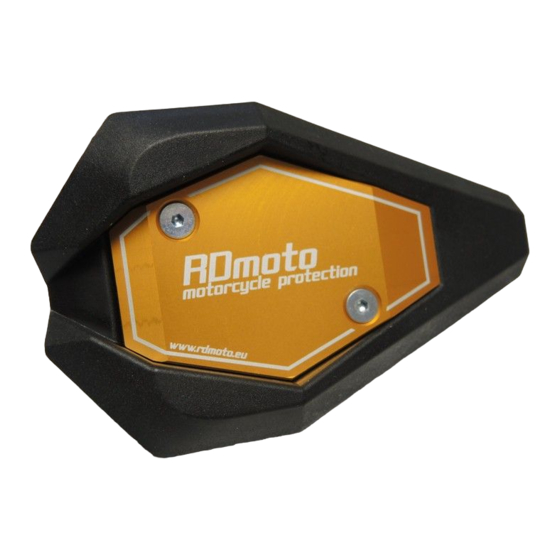

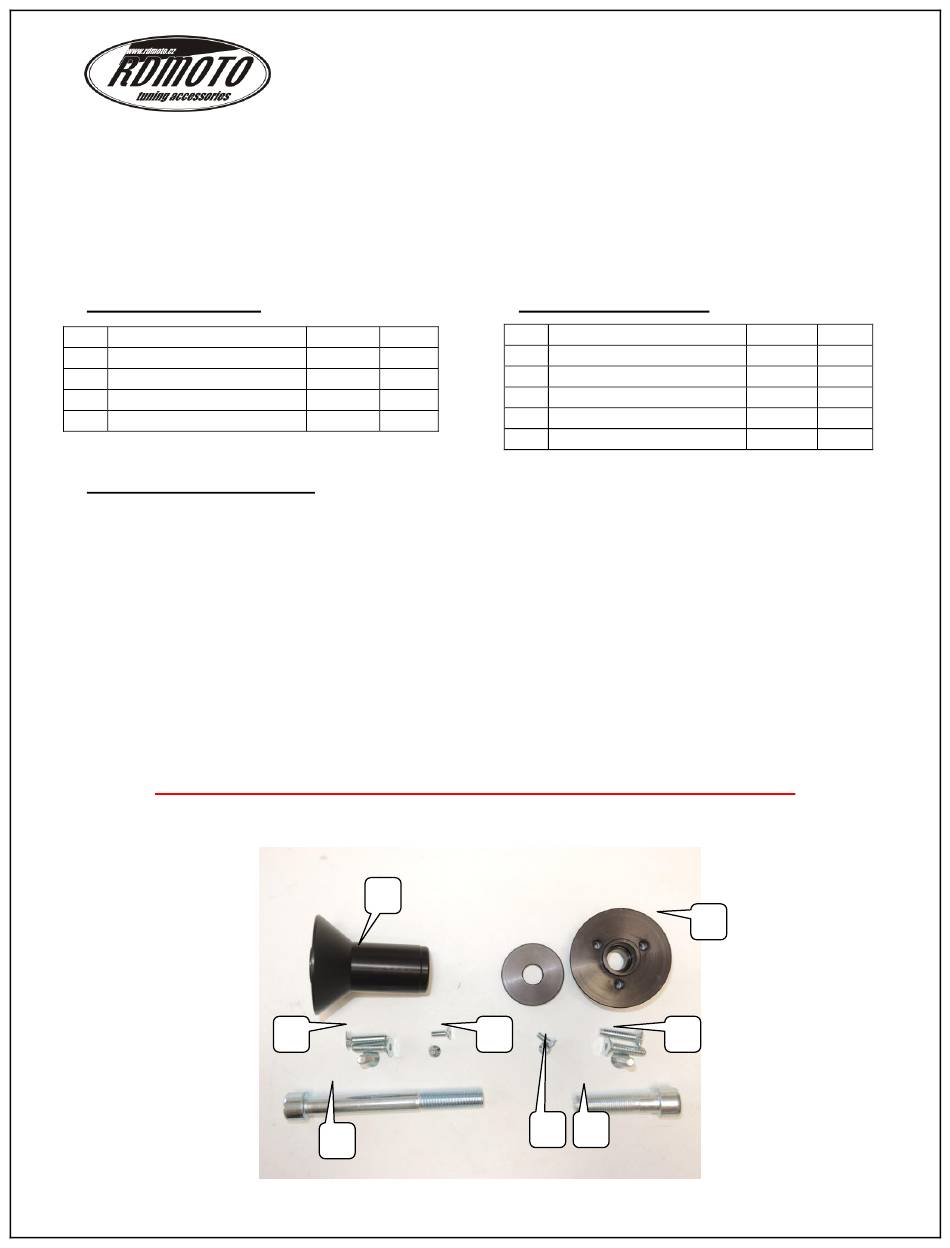

RDMOTO Y36S Instructions For Assembly

Kit for left side:
ID Description
1 Alu. spacer for SL
2 Bolt 12x95x1,25
3 Bolt M6x25
4 Bolt M4x16
Instruction to assembly:
1. The first do assembly left side.
2. Take off Orignal bolt.
3. Leave all spacer´s/bushes in place.
4. Take the alu. spacer ID.1 for left side, insert bolt ID.2 into the spacer ID.1.
5. This kit gripping on the frame and tighten.
6. Place slide and tighten it by bolts ID.3, place alu. cover into the slider use bolts ID.4.
7.
Mounting instruction for right side.
8. Take off Orignal bolt.
9. Please leave all spacer´s/bushes in place.
10. Take the alu. spacer ID.1 for right side insert bolt ID.2 into this kit.
11. This kit gripping on the frame and tighten.
12. Place slide and tighten it by bolts ID.3, place alu. cover into the slider use bolts ID.4.
Warning: We recommend use the glue of all threads. Medium strong.
Cat.N QTY
348 1
900 1
877 3
876 2
1
3
2
Yamaha R1 2015
Kit for right side:
ID Description
1 Alu. spacer for SL
2 Bolt M12x60x1,25
3 Bolt M6x25
4 Bolt M4x16
5 Alu. Roller d=5mm
4
5 3
1
RDMOTO CZECH REPUBLIC
info@rdmoto.eu
www.rdmoto.eu
Y36S
Cat.N QTY
1137
916
877
876
1260
1
4
1
1
3
2
1
