RDMOTO K31S Quick Start Manual

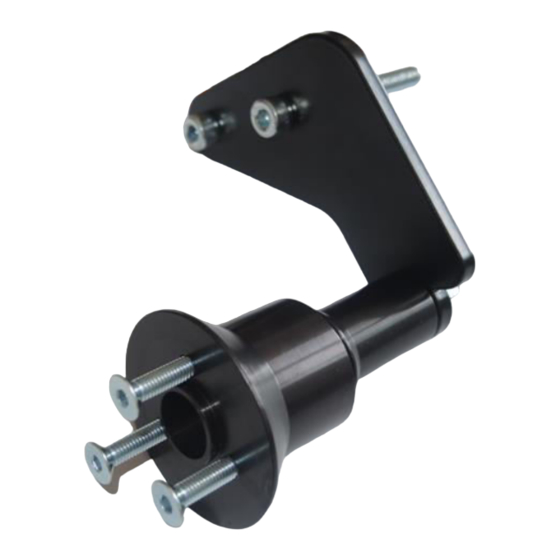

Kit for left side:

ID. Description
1 Slider RDmoto
2 Cover
3
Adapter for SL01
4
Bolt M6x25
5
Bolt M4x16
6
Bolt M10x70mm
7
Dural.cylinder 40mm
8
Bolt M8x70mm
9
Steel bracket
10
Nut M10

Kit for right side:

ID. Description
1 Slider RDmoto
2 Cover
3
Adapter for SL01
4
Bolt M6x25
5
Bolt M4x16
6
Bolt M10x70mm
7
Dural.cylinder 40mm
8
Bolt M8x70mm
9
Steel bracket
10
Nut M10
1. Dismantle original bolt form frame.
2. By bolts (ID.8) mounting steel bracket (ID9) on the frame.
3. Mounting duralumin cylinder (ID7) and dural. adapter (ID3), use bolt (ID6) on the
steel bracket.
4. This set fixed,use nut M10 (ID10)
5. Put on slider (ID 1) use bolts M6 (ID 4)
6. Insert cover inside the slider (ID 2) use bolts (ID 5).
Warning- use glue for threads of all connect.
Kawasaki ER-6F 2013-
Cat.No. QTY
SL 1
SLcap.. 1
DV-313 1
877 3
876 2
851 1
469 1
841 2
639 1
810 1
Cat.No. QTY
SL 1
SLcap.. 1
DV-313 1
877 3
876 2
851 1
469 1
841 2
638 1
810 1

Instruction to assembler- left side :

1
RDMOTO CZECH REPUBLIC
info@rdmoto.cz
www.rdmoto.cz
K31S
