RDMOTO S35SDM Fitting Instruction

Instructions for the right side:
1. Remove fairing of motorcycle.
2. Remove original bolts from the frame of motorcycle.
3. Mount dural. adapter ID1 into the frame of motorcycle using bolts ID4.
4. Put dural. connection rod ID6 through the frame and use bolt ID5.
Instructions for the left side:
1. Remove fairing of motorcycle.
2. Fit dural adapter ID1 on the frame of motorcycle. Tighten it usin stirrup ID2 and bolt
ID6.
3. Stick 3M tape on the frame of motorcycle.
4. Tighten rod using bolt ID5
Now put fairing back on motorcycle.

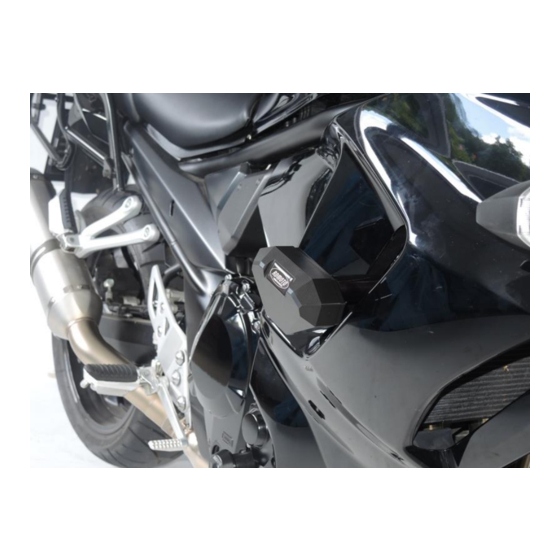

Instructions for crash protectors:
1. Insert bolt ID4 through ID9, ID7 and ID3.
2. Fit this kit into the adapter ID1.
3. Fit protectors using bolts and washers (ID10 and ID11).
We recommend to use safety glue on all threads (medium strong).
