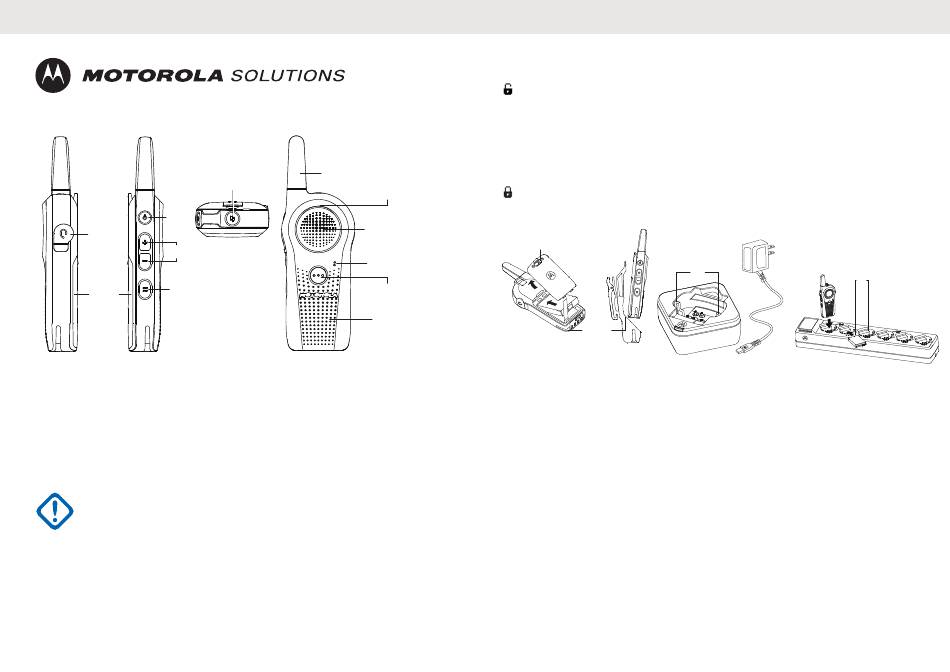

Motorola solutions Curve Series Quick Reference Manual

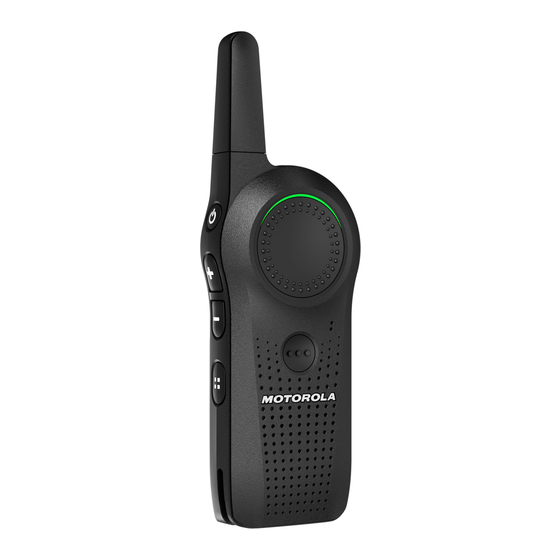

Quick Reference Guide Curve Series Two-Way Radio
Power
Button
Audio
Accessory
Connector
Volume/Up-Down
Control Buttons
Channel/Menu
Charging
Button
Rail
Congratulations on Your New Digital Radio!
Ensure your battery is fully charged before first use. The Curve
series operates in the license-free 900MHz ISM Band. For more
information on product details, user guide, brochures, and accessories,
refer to http://www.motorolasolutions.com/curve
0332 (Mexico City), 0155 4738 0332 (Within Mexico), 0800 891
6123 (Brazil), or +52 55 4738 0332 (All other countries) or email:
customercare.services@motorolasolutions.com.
Important: Before using this product, read the RF Energy
Awareness and Acoustic Safety information and operating
instructions contained in the Safety and RF Energy Exposure
Booklet enclosed with your radio package.
Getting Started
For more information, refer to MN007944A01, Curve Series Non-Keypad
Portable Radio User Guide at https://learning.motorolasolutions.com.
Antenna
Tx/Rx
Top Button
Indicator LED
PTT
(Push-To-Talk)
Button
Microphone
*VAB (Voice
Assistant Button)
Speaker
or please call: 4738
Installing the Battery
1. Slide the battery latch to the unlock position
and lift up the battery door.
2. Align the battery contacts with the tabs in the battery compartment.
Insert and fit the battery until it locks in place.
3. Put the battery door back on the radio. Slide the latch to the lock
position
.
Battery Latch
Lateral
Battery Slot
Holster
Charging the Battery
1. Connect the power supply to the drop-in charger tray or a power cord
to the multi-unit charger (MUC).
2. Insert the radio into the tray. Ensure that the lateral battery slots are
inserted in the tray rails.
3. When the radio is inserted into the charger, the charger LED flashes a
few times to indicate the current battery charge.
4. To check the battery status on the device, short press the Power
button.
Turning the Radio On or Off
1. To turn on the radio, press the Power button for around 3 sec until the
radio plays the power up tone and the radio Transmit/Receive (Tx/Rx)
Indicator LED begins to blink.
Drop in Tray Charger with Power Supply
Tray
Rail
Tray
Rail
Charging a Radio and Battery using a Multi
Unit Charger - MUC (Optional Accessory)
English
1
