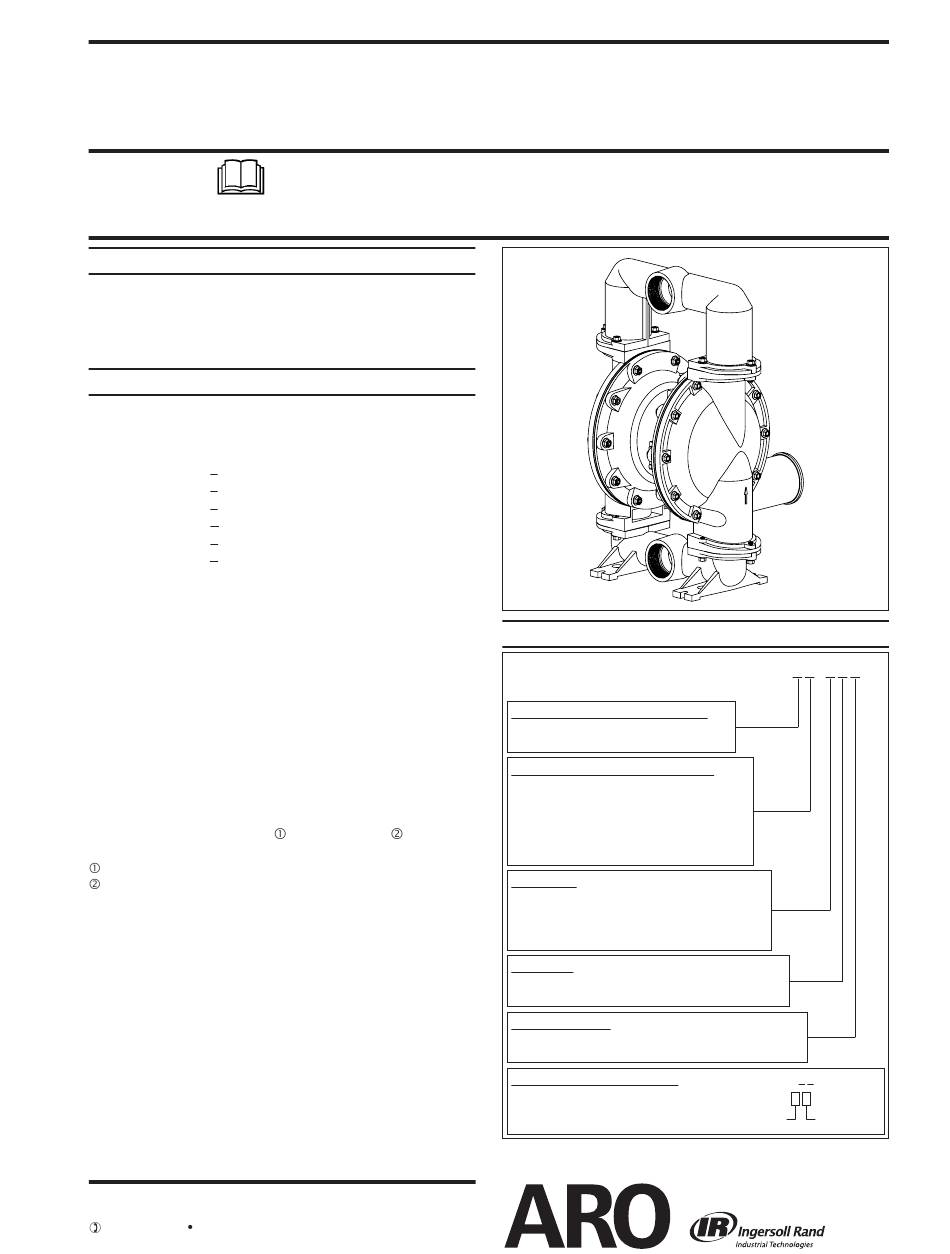

Ingersoll-Rand ARO 66630 C Series Operator's Manual

OPERATOR'S MANUAL
INCLUDING: OPERATION, INSTALLATION & MAINTENANCE
It is the responsibility of the employer to place this information in the hands of the operator. Keep for future reference.
SERVICE KITS
Refer to Model Description Chart to match the pump material op-
tions.
637434 for air section repair (see page 6).
637433-XX for fl uid section repair (see page 4).
PUMP DATA
Models . . . . . . . . . . . . . . . . . see Model Description Chart for "-XXX"
Pump Type . . . . . . . . . . . . . Metallic Air Operated Double Diaphragm
Material . . . . . . . . . . . . . . . . see Model Description Chart
Weight . . . . . . 6663X0-XXX-C . . . . . . . . . . . . 109.84 lbs (49.82 kgs)
6663X1-XXX-C . . . . . . . . . . . . 222.21 lbs (100.79 kgs)
6663X2-XXX-C . . . . . . . . . . . . 213.08 lbs (96.65 kgs)
6663XA-XXX-C . . . . . . . . . . . 109.84 lbs (49.82 kgs)
6663XB-XXX-C . . . . . . . . . . . 222.21 lbs (100.79 kgs)
6663XC-XXX-C . . . . . . . . . . . 213.08 lbs (96.65 kgs)
Maximum Air Inlet Pressure . . . . . . . . . . . 120 p.s.i.g. (8.3 bar)
Maximum Material Inlet Pressure . . . . . . 10 p.s.i.g. (0.69 bar)
Maximum Outlet Pressure . . . . . . . . . . . . . 120 p.s.i.g. (8.3 bar)
Maximum Flow Rate (fl ooded inlet) . . . 237 g.p.m. (897.0 l.p.m.)
Maximum Particle Size . . . . . . . . . . . . . . . . 3/8" dia. (9.5 mm)
Maximum Temperature Limits (diaphragm / ball / seal / seat
material)
E.P.R. / EPDM . . . . . . . . . . . . . . . . . . . -60° to 280° F (-51° to 138° C)
Hytrel® . . . . . . . . . . . . . . . . . . . . . . . . . -20° to 150° F (-29° to 66° C)
Kynar® PVDF . . . . . . . . . . . . . . . . . . . 10° to 200° F (-12° to 93° C)
Nitrile . . . . . . . . . . . . . . . . . . . . . . . . . . 10° to 180° F (-12° to 82° C)
Santoprene® . . . . . . . . . . . . . . . . . . . -40° to 225° F (-40° to107° C)
PTFE . . . . . . . . . . . . . . . . . . . . . . . . . . . 40° to 225° F (4° to 107° C)
Viton® . . . . . . . . . . . . . . . . . . . . . . . . . . -40° to 350° F (-40° to 177° C)
Dimensional Data . . . . . . . . . . . . . . . . . . . . . . see page 8
Noise Level @ 70 p.s.i., 60 c.p.m.
Tested with 94810 muffl er assembly installed.
The pump sound pressure levels published here have been updated to
an Equivalent Continuous Sound Level (L
S1.13-1971, CAGI-PNEUROP S5.1 using four microphone locations.
NOTICE: All possible options are shown in the chart, however, certain
combinations may not be recommended, consult a representative or
the factory if you have questions concerning availability.
INGERSOLL RAND COMPANY LTD
209 NORTH MAIN STREET – BRYAN, OHIO 43506
(800) 276-4658 FAX (800) 266-7016
www.ingersollrandproducts.com
3" DIAPHRAGM PUMP
1:1 RATIO (METALLIC)
READ THIS MANUAL CAREFULLY BEFORE INSTALLING,
OPERATING OR SERVICING THIS EQUIPMENT.
The original language of this manual is English.
. . . . . . 86.3 db(A)
) to meet the intent of ANSI
Aeq
© 2010 CCN 15242662
666300-XXX-C
MODEL DESCRIPTION CHART
Center Body Material / Fluid Connection
0 - Aluminum / 3 - 8 NPTF - 2
2 - Aluminum / Rp 3 (3 - 11 BSP parallel)
Fluid Cap & Manifold Material / Hardware
0 - Aluminum / Carbon steel
1 - Stainless Steel / Carbon Steel
2 - Cast Iron / Carbon Steel
A - Aluminum / Stainless Steel
B - Stainless Steel / Stainless Steel
C - Cast Iron / Stainless Steel
Seat Material
1 - Aluminum 8 - Hard Stainless Steel
2 - 316 Stainless Steel 9 - Hytrel
4 - Kynar PVDF E - Santoprene
5 - Carbon Steel G - Nitrile
Ball Material
2 - Nitrile C - Hytrel
4 - PTFE E - Santoprene
Diaphragm Material
2 - Nitrile 9 - Hytrel
4 - PTFE / Santoprene B - Santoprene
Fluid Section Service Kit Selection
Example: Model #666300-1EB-C
Fluid Section Service Kit # 637433-EB
RELEASED: 3-13-06
REVISED: 5-7-10
(REV. 07)
Figure 1
6663 X X - X X X - C
6663XX - X X X - C
637433 - X X
Ball Diaphragm
