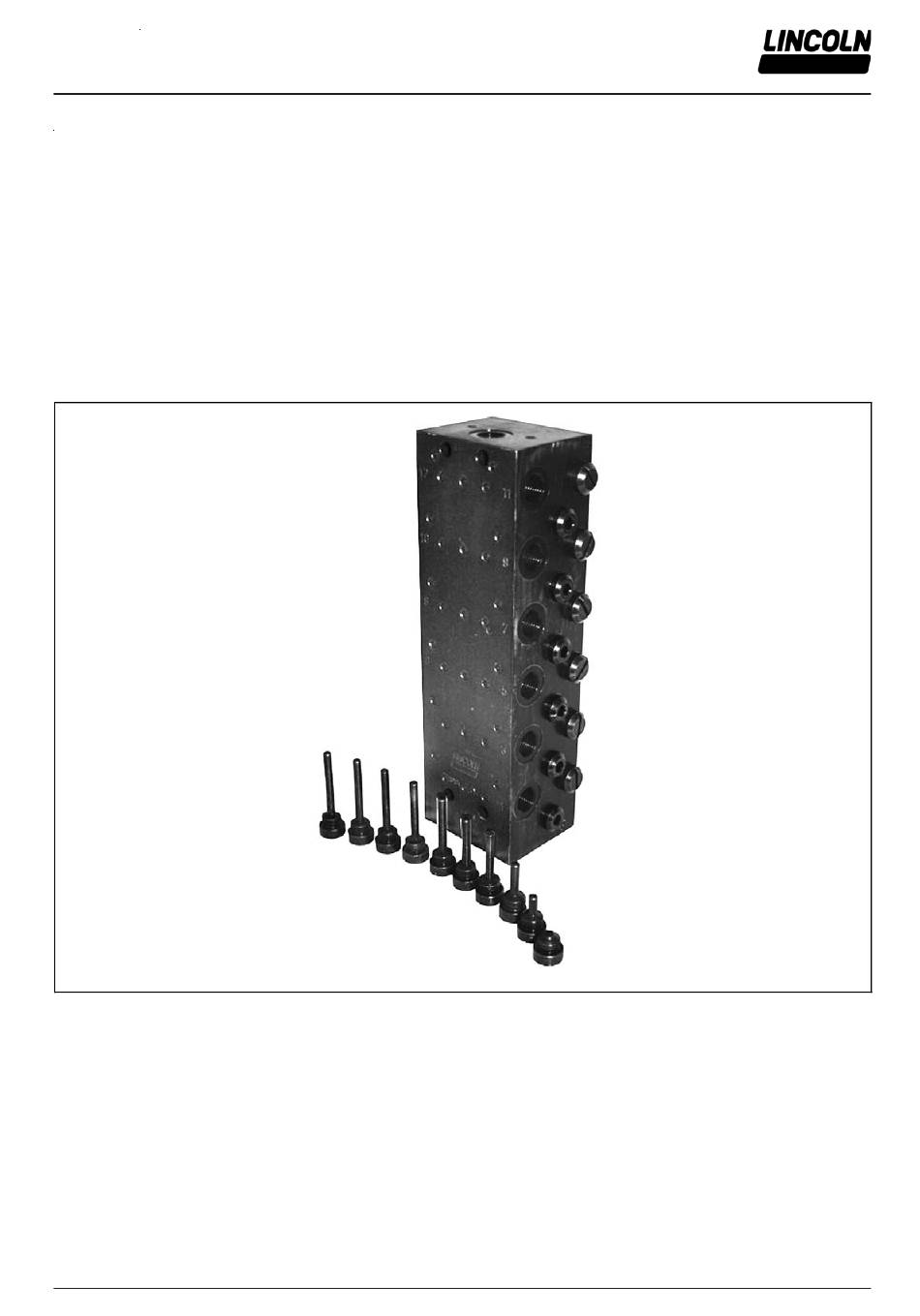

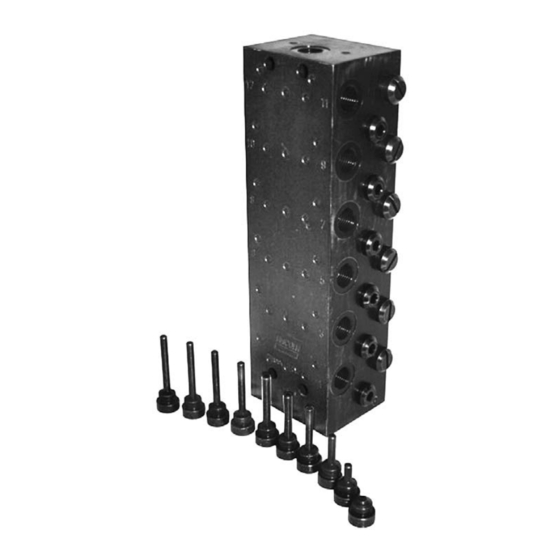

- Page 1 Installation Instructions 2.2EN-20007-B13 Quicklub - Progressive Metering Devices for Grease and Oil Model SSVDL B-SSVDL-000a11 Page 1 of 32 SKF Lubrication Systems Germany GmbH ● Heinrich Hertz-Str. 2-8 D-69190 Walldorf Tel. +49(0) 6227 33-0 ● Fax: +49 (0) 6227 33-259...
- Page 2 User Manual Installation Instructions 2.2EN-20007-B13 Page 2 of 32 SKF Lubrication Systems Germany GmbH ● Heinrich Hertz-Str. 2-8 D-69190 Walldorf Tel. +49(0) 6227 33-0 ● Fax: +49 (0) 6227 33-259...
-
Page 3: Table Of Contents
Hose Assembly ..............8 - by Cross-porting of Outlets ........23 Outputs ..............24 Description Identification Code ............24 Progressive Metering Device Model SSVDL ..... 9 General ..............9 Rating ................. 9 Troubleshooting ............25 Features of a Progressive Metering Device ....9 Function Principle and Reliability ....... -
Page 4: Introduction
User Manual Installation Instructions 2.2EN-20007-B13 Introduction Explanation of Symbols Used The following description standards are used in this manual: Furthermore, you will find the following text symbols in this manual: Safety Instructions Listing Structure of safety instructions: - Subpoint Pictogram ... -
Page 5: Safety Instructions
- An exception to this rule is the SSVDL metering device, the outlets 1 and 2 of which are fitted together (see Fig. 4-9). Here one of the two outlets must be closed. -
Page 6: Connection Fittings, Screw-Type
User Manual Installation Instructions 2.2EN-20007-B13 Installation Instructions Connection Fittings, Screw-Type for main- and secondary metering devices model SSVDL Inlet tube fittings As inlet fitting (on item P, Fig. 1-1) use only tube fittings R1/4“ thread. Outlet tube fittings ... -
Page 7: Hose Fittings
Installation Instructions, continuation Outlet Fitting, Screw-Type, continuation Hose fittings For external lubricant volume combination L2-L5, one For the hose connection to the SSVDL metering device connecting bar 4, closure plug(s) 5, and one outlet fitting provide hose fittings 8 mm for GE8LR1/4“, 10 mm for are to be used as follows: GE10LR1/4“... -
Page 8: Hose Assembly
User Manual Installation Instructions 2.2EN-20007-B13 Installation Instructions, continuation Hose Assembly Cut the hose at a right angle to the required length using a cut-off machine or a fine-toothed steel saw. Remove remains of rubber and wire. Oil or grease inside the fitting. ... -
Page 9: Description
- no lubrication point which is connected to the system is omitted. 6496b05 Fig. 2-2 Schematic of the SSVDL metering device 1 - 6 Outlets A - C Control and metering piston Page 9 of 32 SKF Lubrication Systems Germany GmbH ● Heinrich Hertz-Str. 2-8 D-69190 Walldorf Tel. +49(0) 6227 33-0 ● Fax: +49 (0) 6227 33-259... -
Page 10: Function Principle And Reliability
The softer running of the metering piston is warranted by several factors: - Larger piston surface D at constant input pressure P in the total SSVDL - Assembly with larger fit-tolerance S - Continual running surfaces of piston and cylinder 6512b05 Fig. - Page 11 User Manual Installation Instructions 2.2EN-20007-B13 Mode of Operation, continuation 4025a95 Fig. 3-3 Multiline pump expanded by a progressive metering device Applications, continuation Progressive metering devices can be used in two-line or single-line centralized lubrication systems in order to in- crease the number of outlets of multiline pumps or to sub- divide the single metering devices and measuring valves (Fig.
-
Page 12: Lubricant Distribution Within The Metering Device
The SSVDL has three functional levels. They are visible from piston (0,08 ccm) is dispensed. both sides due to three bore rows (see pos. I to III, Fig. 4-1):... -
Page 13: Phase 1 + 2
User Manual Installation Instructions 2.2EN-20007-B13 Mode of Operation, continuation Lubricant Distribution within the Metering Device, continuation B-SSVD-031e12 B-SSVD-030e12 Fig. 4-2 Phase 1: Metering piston B supplies V1 Phase 1 Phase 2 The lubricant pressure P is built up from the top (arrow P) ... -
Page 14: Phase 3 + 4
User Manual Installation Instructions 2.2EN-20007-B13 Mode of Operation, continuation Lubricant Distribution within the Metering Device, continuation B-SSVD-031e12 B-SSVD-030g12 Fig. 4-4 Phase 3 & 4: Metering piston C supplies V1, Control piston C supplies V2 Phase 3 Phase 4 In phase 3, control piston B has reached its final position ... -
Page 15: Phase 5 + 6
User Manual Installation Instructions 2.2EN-20007-B13 Mode of Operation, continuation Lubricant Distribution within the Metering Device, continuation B-SSVD-031e12 B-SSVD-030k12 Fig. 4-5 Phase 5 & 6: Metering piston A supplies V1, Control piston A supplies V2 Phase 5 Phase 6 In phase 5, control piston C has reached its final position ... -
Page 16: Phase 7 + 8
User Manual Installation Instructions 2.2EN-20007-B13 Mode of Operation, continuation Lubricant Distribution within the Metering Device, continuation B-SSVD-031e12 B-SSVD-030m12 Fig. 4-6 Phase 7 & 8: Metering piston B supplies V1, Control piston B supplies V2 Phase 7 Phase 8 In phase 7, control piston A has reached its final position ... - Page 17 User Manual Installation Instructions 2.2EN-20007-B13 Mode of Operation, continuation Lubricant Distribution within the Metering Device, continuation B-SSVD-031e12 B-SSVD-030o12 Fig. 4-7 Phase 9 & 10: Metering piston C supplies V1, Control piston C supplies V2 Phase 9 Phase 10 In phase 9, control piston B has reached its final position ...
-
Page 18: Phase 11 + 12
User Manual Installation Instructions 2.2EN-20007-B13 Mode of Operation, continuation Lubricant Distribution within the Metering Device, continuation B-SSVD-031e12 B-SSVD-030p12 Fig. 4-8 Phase 11 & 12: Metering piston B supplies V1, Control piston B supplies V2 Phase 11 Phase 12 In phase 11, control piston C has reached its final position ... -
Page 19: Cross-Porting Of Outlets, Internal
For the lubricant metering devices SSVDL6/5 to 14/13 Opposite outlets 1 and 2 of metering devices SSVDL may with an internal cross-porting of outlets 1 and 2 (bypass also be cross-ported externally and then be connected to metering device), both outlets are connected (see broken- a lube point with a tee piece. -
Page 20: Monitoring Of The Operation
B-SSVD-030a10 Fig. 5-2a Indicator pin tube fitting on both sides Indicator pin tube fitting Control piston SSVDL - Metering device 1a - Indicator pin Page 20 of 32 SKF Lubrication Systems Germany GmbH ● Heinrich Hertz-Str. 2-8 D-69190 Walldorf Tel. +49(0) 6227 33-0 ● Fax: +49 (0) 6227 33-259... -
Page 21: Electrical Monitoring
Refer to the Parts Catalogue. The pre-assembled metering devices have the designa- tion SSVDL…-N, NE or NP. They must be installed in the system instead of a normal metering device (SSVDL). Applications: B-SSVDL-040f10 Metering device …-... -
Page 22: Adapting The Lubricant Output
(see Fig. 4-9 & 4-10). 6001a02 Fig. 5-5 Screwing in of metering screws B-SSVDL-040a11 Metering screw Page 22 of 32 SKF Lubrication Systems Germany GmbH ● Heinrich Hertz-Str. 2-8 D-69190 Walldorf Tel. +49(0) 6227 33-0 ● Fax: +49 (0) 6227 33-259... -
Page 23: By Cross-Porting Of Outlets
SSVDL6/5 to SSVDL14/13 see Fig. 4-9. For the outlet volume combination with standard metering devices SSVDL6 to SSVDL14 see Fig. 6-2. B-SSVDL-040g11 Fig. 6-1 Install the outlet fittings and closure plugs in accordance with the dosage 1-14 - Numbering of outlet bores Metering device housing 1.1 - Supply bores of the piston... -
Page 24: Outputs
Lubricant output 3 = Outlet 5 + Outlet 3 + Outlet 1 Fig. 6-2 Metering of multiple lubricant outputs Identification Code Examples of model designations Standard designation Expanded designations SSVDL SSVDL 14/13 - V1 - SSVDL ABCF SSVDL ACBGABC outlets 3, 6, 8, 10... -
Page 25: Troubleshooting
Example of a lubrication system Check pressure relief valve A. Replace it, if necessary. A - pressure relief valve E - Pressure plastic tubes B - Main metering device SSVDL F - Secondary metering device C - Secondary metering device SSV8 SSV12... - Page 26 User Manual Installation Instructions 2.2EN-20007-B13 Troubleshooting, continuation Fault: Blockage in the downstream progressive system, continuation Cause: Correction: Metering device blocked Replace the metering device or clean it in accordance with the following procedure: Remove all tube fittings. ...
-
Page 27: Technical Data
User Manual Installation Instructions 2.2EN-20007-B13 Technical Data Rating Tightening Torque Lubricant output per outlet and per stroke, code A ... 0.08 ccm Closure plug (piston) in metering device ..... 18 Nm Lubricant output per outlet and per stroke, code B ... 0.14 ccm Inlet fitting in metering device Lubricant output per outlet and per stroke, code C .. -
Page 28: Dimensions
Technical Data, continuation Dimensions Metering device Dimension A in mm SSVDL6 SSVDL8 SSVDL10 SSVDL12 SSVDL14 B-SSVDL-060a11 Page 28 of 32 SKF Lubrication Systems Germany GmbH ● Heinrich Hertz-Str. 2-8 D-69190 Walldorf Tel. +49(0) 6227 33-0 ● Fax: +49 (0) 6227 33-259... -
Page 29: Spare Parts And Kits
- M6 x 80C 200-13092-6 Hexagonal nut M6C 207-12135-5 Hexagon socket screws 8.8 - M6 x 60 C (SSV) 201-12019-6 - M6 x 70 C (SSVD / SSVDL) 201-12587-9 - M6 x 80 C (SSVDL) 201-13067-2 Lock washer A6C 213-12168-8 Washer 6,4C 209-13649-1 Kits Pos. -
Page 30: Push-In Type Fittings
Screwed sleeves: - 2SN, DN6 226-10979-1 - 2SN, DN8 226-10979-2 - 2SN, DN10 226-10979-3 B-SSVDL-070a11 Hose studs, screw type: …………. in stainless steel (1.4305) - D8 / DN6 VA 226-10721-5 Screw fittings (GERV) - D10 / DN8 VA 226-10721-6 - D12 / DN10 VA 226-10721-7 - for tube-Ø... - Page 31 The Power of Knowledge Engineering Bearings Lubrication Drawing on five areas of competence and application-specific expertise amassed over more than 100 Seals and units systems years, SKF brings innovative solutions to OEMs and production facilities in every major industry world- wide.
