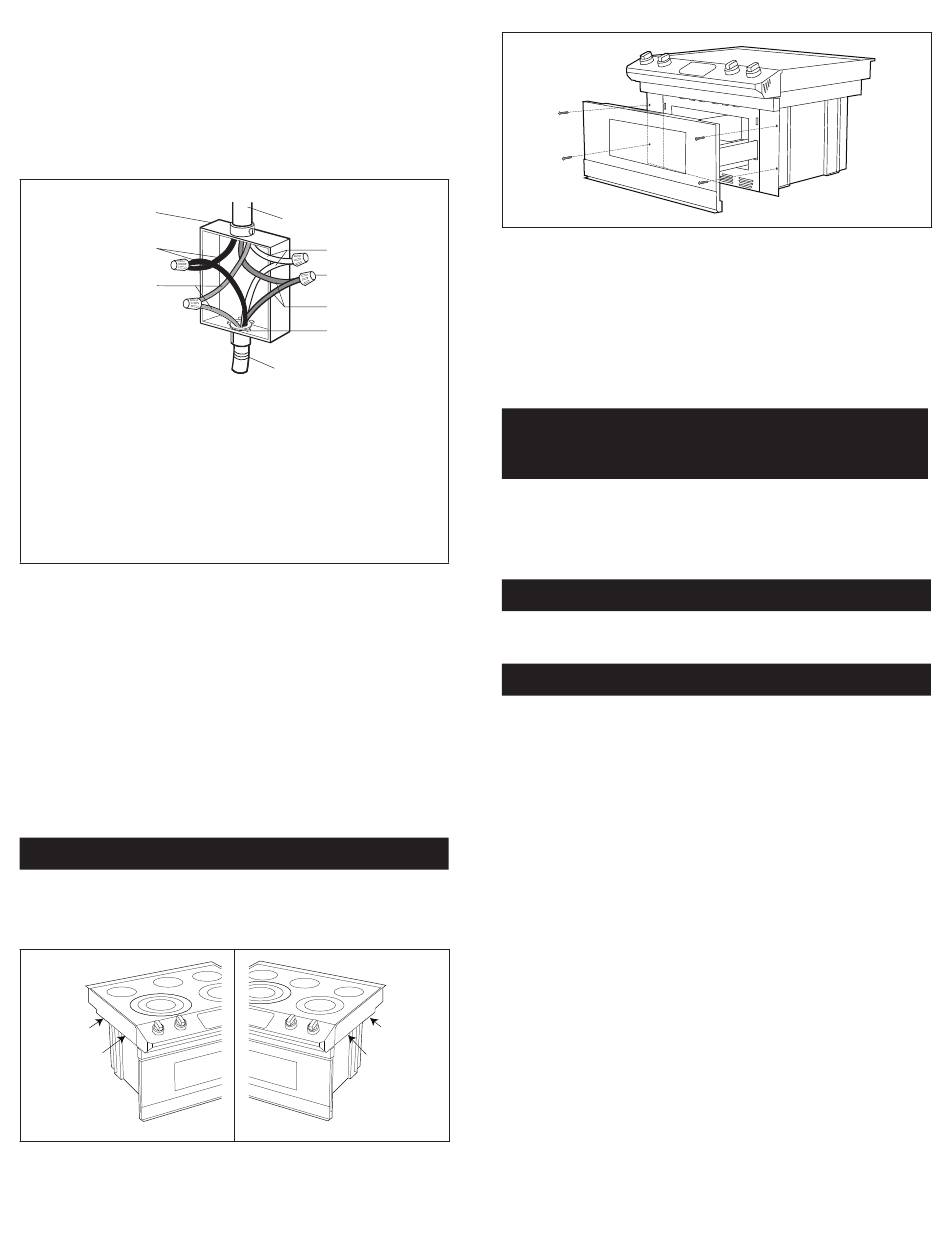

4-WIRE CABLE FROM HOME POWER SUPPLY
IMPORTANT: Use the 4-wire cable from home power supply in
the U.S. where local codes do not allow grounding through neutral,
New Branch circuit installations (1996 NEC), mobile homes and
recreational vehicles, new construction and in Canada.
UNGROUNDED NEUTRAL
A
B
C
A Junction Box
B Black Wires
C Red Wires
D Cable from Oven
E UL listed or CSA Approved
Conduit Connector
1. Disconnect power before servicing.
2. Connect the 2 black wires B together using a UL listed wire
connector.
3. Connect the 2 red wires C together using a UL listed wire
connector.
4. Connect the 2 neutral (white) wires H together using a UL listed
wire connector.
5. Connect the ground (green or bare) wire F from the oven cable
to the ground (green or bare) wire (in the junction box) using a
UL listed wire connector.
6. Install junction box cover.
POSITION AND INSTALL UNIT
Two people are required to safely lift, move and install the unit. The
unit must be lifted from the right and left sides of the unit by lifting
from beneath the rangetop.
lifting point
lifting point
E
I
H
G
F
E
D
F Ground (Green or Bare)
Wires
G UL Listed Wire
Connectors
H Neutral (White) Wires
I House Electrical Supply
lifting point
lifting point
1. Lift the unit and place the back end on the plywood surface.
2. Straighten the unit, then slowly slide it into the opening. The
installed anti-tip bracket will hook onto an attached lip and hold
the unit in place.
3. Open the drawer. Using the 4 holes on the drawer as a template,
pre-drill the cabinet using a
4. Secure the unit with the 4 screws supplied.
MODEL AND SERIAL NUMBER
LOCATION
The nameplate includes model and serial number. Open the
Microwave Drawer Oven fully. The label is beyond the back
™
wall of the microwave oven cavity facing up from the flat surface.

CARE, CLEANING AND MAINTENANCE

Refer to the Operation Manual for cleaning instructions.

BEFORE YOU CALL FOR SERVICE

Read the BEFORE YOU CALL and operating instruction
sections in your Operation Manual. It may save you time and
expense. The list includes common occurrences that are not the
result of defective workmanship or materials in this appliance.
Refer to the warranty in your Operation Manual for Sharp's
toll-free service number and address. Please call or write if you
have inquiries about your microwave product and/or need to
order parts.
