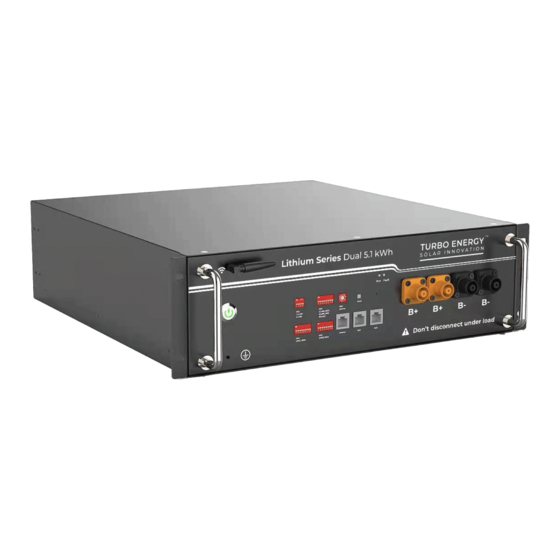

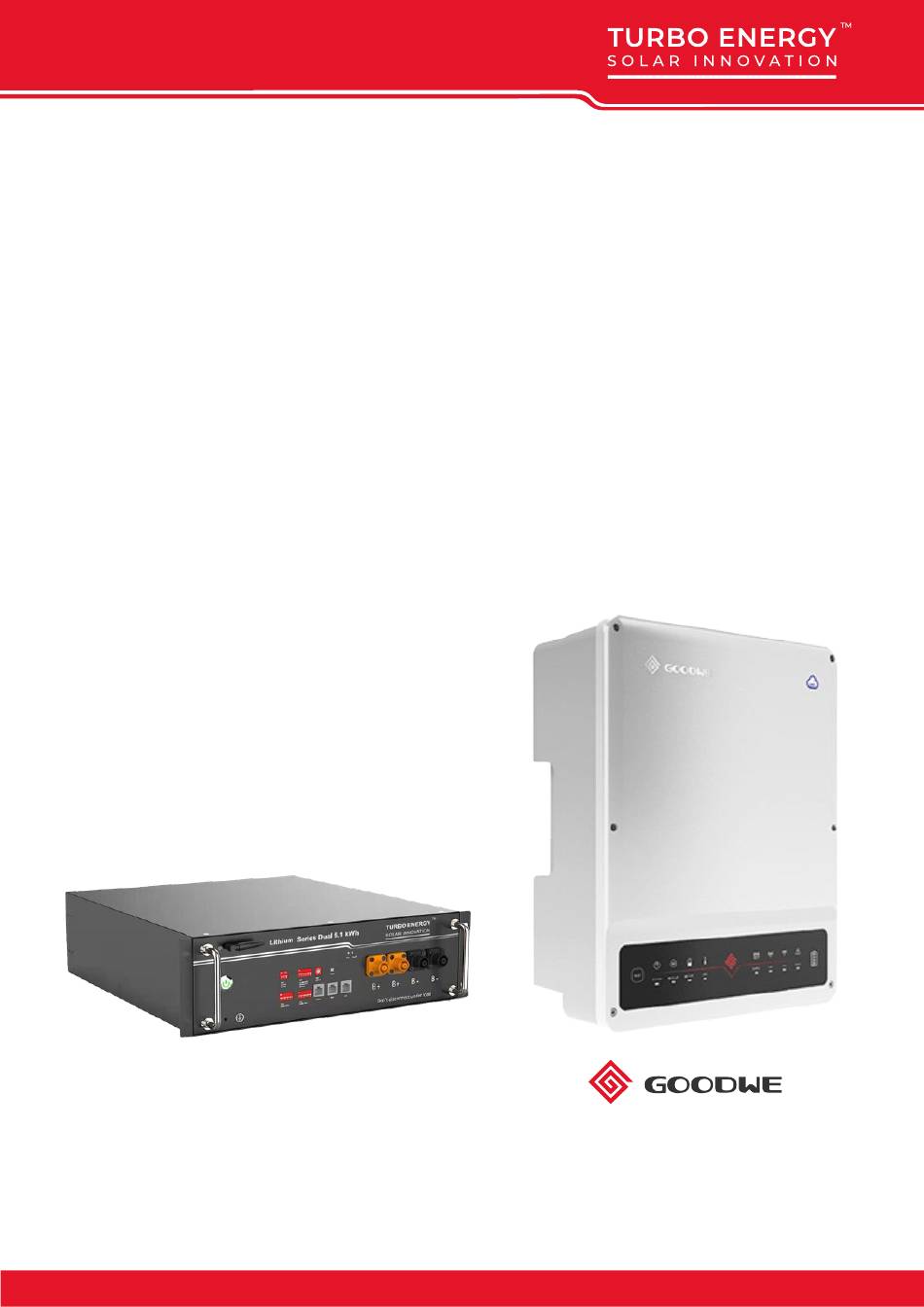

- Page 1 QUICK INSTALLATION GUIDE Lithium Series Dual 48V 5.1kWh Goodwe Inverter www.turbo-e.com...
- Page 2 Inverter Goodwe Configuration First, the inverter must be configured properly. To do this, a correct Wi-Fi connection must be made between an electronic device and the inverter, as well as a properly configuration through the PV Master application. 1.1. WIFI CONNECTION To make a correct Wi-Fi connection, follow these steps: Note: This connection can also be made from the PV Master application.
- Page 3 1.2. MASTER PV CONFIGURATION PV Master is an external monitoring/configuration app for hybrid inverters. It can be downloaded directly from the Play Store or App Store and works with both Android and iOS systems. Once it has been connected to the inverter’s Wi-Fi network, the app must be configured according to the batteries to be connected.
- Page 4 To finish, the type of battery to be used must be selected. To do this, you must select the following option regardless of whether you are going to work with 1 or more batteries. www.turbo-e.com...
- Page 5 2. Battery On and Off To turn on the battery, press the power button for a few seconds. The BMS will start working and the LED will light up. To turn off the batteries, press the power button for more than 5 seconds. 3.
- Page 6 3.1. DIPS FOR CONNECTING ON SERIES SW2 and SW3 are for communication between batteries. Connected Battery Group Series connect Address Set Number Primary Primary Sub1 Sub2 Primary Sub1 Sub2 Sub3 www.turbo-e.com...
- Page 7 Connected Battery Group Series connect Address Set Number Primary Sub1 Sub2 Sub3 Sub4 Primary Sub1 Sub2 Sub3 Sub4 Sub5 www.turbo-e.com...
- Page 8 Connected Battery Group Series connect Address Set Number Primary Sub1 Sub2 Sub3 Sub4 Sub5 Sub6 www.turbo-e.com...
- Page 9 Connected Battery Group Series connect Address Set Number Primary Sub1 Sub2 Sub3 Sub4 Sub5 Sub6 Sub7 Make sure DIP switch SW2 is selected correctly. If the battery is connected in parallel mode, but DIP8 is in the ON position, a serious and dangerous fault may occur.
- Page 10 3.2. DIPS FOR CONNECTION ON PARALLEL SW2 and SW3 are for communication between batteries. Connected Battery Group Parallel connect Address Set Number Primary Primary Sub1 Sub2 Primary Sub1 Sub2 Sub3 www.turbo-e.com...
- Page 11 Connected Battery Group Parallel connect Address Set Number Primary Sub1 Sub2 Sub3 Sub4 Primary Sub1 Sub2 Sub3 Sub4 Sub5 www.turbo-e.com...
- Page 12 Connected Battery Group Parallel connect Address Set Number Primary Sub1 Sub2 Sub3 Sub4 Sub5 Sub6 www.turbo-e.com...
- Page 13 Connected Battery Group Parallel connect Address Set Number Primary Sub1 Sub2 Sub3 Sub4 Sub5 Sub6 Sub7 Make sure DIP switch SW2 is selected correctly. If the battery is connected in parallel mode, but DIP8 is in the ON position, a serious and dangerous fault may occur.
-
Page 14: Wiring Configuration
4. WIRING Configuration The cable needed to make the A standard pin-to-pin cable For the connection between connection is the RJ45. This is with an RJ45 connector the inverter and the battery, a cable made up of 8 smaller should be used. the RJ45 cable will be cables each with a different connected to the ‘’Inverter’’... - Page 15 www.turbo-e.com...
