Whalen Axon Task WC-13AX-GO Instruction Booklet page 4

4
CR
2

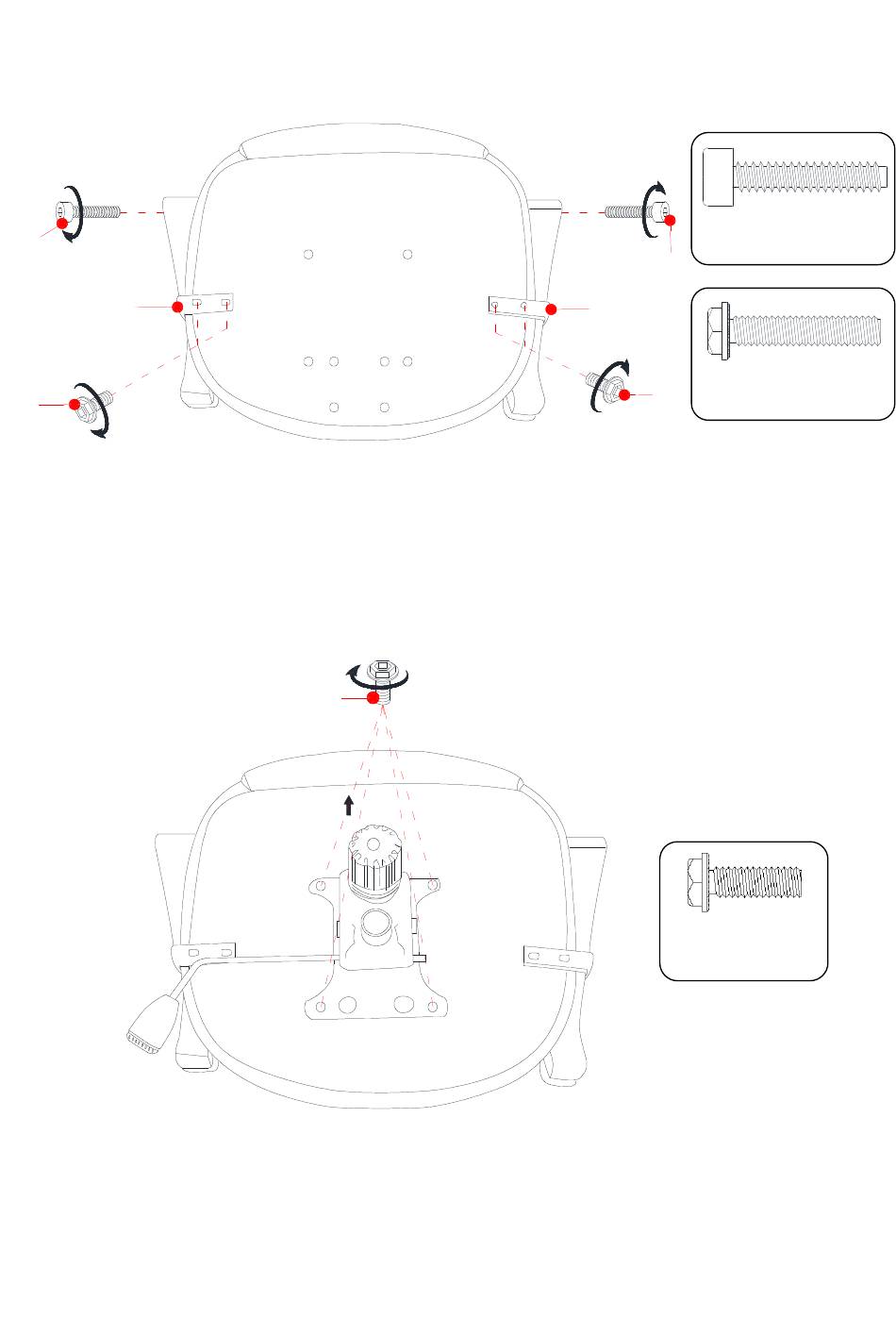

4. For easy assembly, place Seat Cushion (B) upside down on the top surface of carton. Align and attach
Left Armrest (CL) to the Seat Cushion (B) using two 1 1/4" Hex Head Bolts (2), aligning the holes.
5. Insert one 1 1/4" Socket Head Bolt (4) through the countersunk hole on the Left Armrest (CL) and
screw into the threaded inserts on the side of Seat Cushion (B). When assembled, tighten the bolts with
the hex wrench provided.
6. Repeat the same process to attach the Right Armrest (CR) at the opposite end.
7. Align the Mechanism (D) over the pre-drilled holes on the underside of the Seat Cushion (B) with the
black tension knob facing the front of the seat. Insert and screw four 3/4" Bolts (1) into the mechanism
holes to attach it in place. Tighten all bolts with the hex wrench provided.
Assembly Instructions
B
1
FRONT
D
B
4
④ x 2
4
CL
② x 4
2
① x 4
