User's Manual for

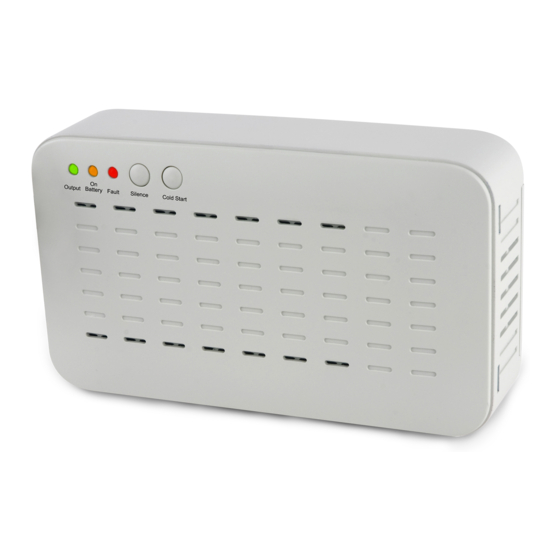

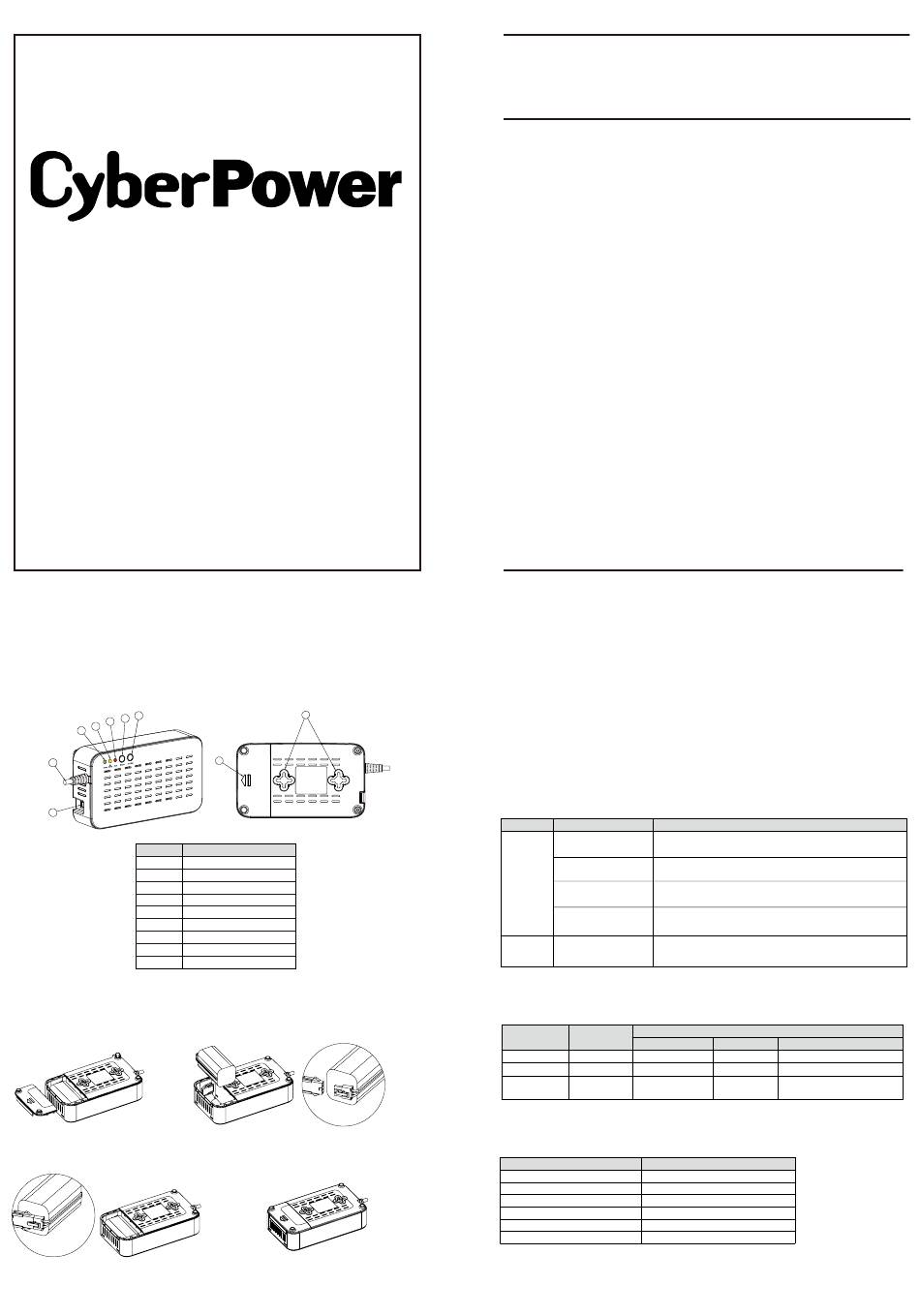

OVERVIEW
5
4
3
2
1
7
6
Number
1
2
3
4
5
6
7
8
9
BATTERY REPLACEMENT (FOR TECHNICIAN ONLY)
Follow these instructions carefully during the replacement of the battery.
Step 1:
a. Remove the battery cover.
Step 3:
a. Reconnect the battery connector to a new battery.
b. Install the new battery into the compartment.
CyberShield
CPLI72D48V
9
8
Description
Output (Green)
On Battery (Yellow)
Fault (Red)
Silence Button
Cold Start Button
Input Connector
DC Output Cable
Battery Cover
Mounting Hole
Step 2:
a. Remove the battery and disconnect the
battery cable connector.
Step 4:
a. Make sure the battery is fixed properly in the
compartment and close the battery cover.
CyberShield UPSs are designed to provide a local power solution for
cable telephony, wireless local loop (WLL), and fiber to the home
(FTTH) broadband equipment. FTTx not only needs backup power
to prevent utility power failure, but also supports making emergency
calls (e.g., 911) for help.
IMPORTANT SAFETY WARNINGS
(SAVE THESE INSTRUCTIONS)
This manual contains important instructions regarding the installation and operation of this device.
Read this manual thoroughly before attempting to unpack, install or operate this device.
CAUTION!
The battery can energize hazardous live parts inside even when the power is disconnected.
CAUTION! To reduce the risk of fire or electric shock, install in an indoor area that both temperature
and humidity could be controlled, and free of conductive contaminants. To find the
acceptable ranges of temprature and humidity, please refer to the specification.
CAUTION! To avoid electric shock, turn off the unit and unplug it from the adapter source before
servicing the battery or installing a computer component.
CAUTION! To reduce the risk of electric shock, keep the cover on. There are no user-serviceable
parts inside the unit. Please contact us or our dealer for service.
CAUTION! It is recommended to connect the unit to the required equipment and battery before
plugging in the adapter source.
CAUTION! Runtime is based on testing fully-charged and new batteries at normal operating
conditions. Runtime curve is approximate and varies based on battery age, level of
charge at test, environment, and other variables.
CAUTION! Before replacing the battery, remove conductive jewelry, such as chains, watches, and
rings. Use tools with insulated handles to avoid high energy, which could pass through
conductive materials and cause severe burns.
CAUTION! Battery is customized lithium battery pack. Before replacing the battery, make sure the
specification of the replacement is 2,200mAh/14.4V, including protection module and
temperature detecting for battery.
The battery must be supplied by CyberPower. Using improper battery which is not
CAUTION!
evaluated with this model could cause a risk and is at the user's own risk.
CAUTION! Do not open or mutilate batteries. The materials released from batteries are harmful.
CAUTION! Dispose of used batteries according to the instructions.
UNPACKING
Check the CyberShield unit upon receipt. It should contain the following items:
● CPLI72D48V unit
● Lithium battery pack
● User's manual
● Wall-mounted installation template
BUTTON FUNCTIONS
Button
Functions
Press the Silence button for 1 second to turn the alarm off for
Temporarily Alarm Off
24 hours. A short beep will occur to confirm the alarm is off.
Press the Silence button for 1 second again to restore the
Temporarily Alarm On
alarm. Two short beeps will occur to confirm the alarm is on.
Silence
In battery mode, press the Silence button for 10 seconds to
Shut down
shut down CPLI72D48V.
In line mode, press the Silence button for 10 seconds to reset
Reset
output power and CPLI72D48V.
When utility power is no longer present and a new battery is
Cold Start
Cold Start
installed, press the Cold Start button to start CPLI72D48V.
LED STATUS INDICATION
Indicator Color
On
Output Green Output is normal
On Battery Yellow Battery mode
Replace battery
Fault Red
Battery missing
AUDIO ALARM
Alarm Condition
1 long beep Transfer to battery mode
1 short beep every 15 minutes Replace battery/ Battery missing
4 short beeps every 1 minute Low battery
1 short beeps every 5 seconds System error
1 short beep Temporary alarm off
2 short beep Temporary alarm on
Instructions
Conditions
Off Blinking
Output is off NA
Line mode Low battery
OVP/UVP (Every 1 sec.)
Normal
System error (Every 5 sec.)
