Do not attempt to use this equipment until you have fully read and understood this guide.
A knowledge of BS5839: Pt 1: 2017: Fire Detection and Alarm Systems for Buildings is essential.
It is strongly recommended that a suitably qualified and competent person is consulted in connection with the Fire Alarm System
design and that the entire system is commissioned in accordance with the current national standards and specifications.
Equipment Guarantee
The equipment carries no warranty unless the system is installed, commissioned and serviced in accordance with the manual and the
relevant standards by a suitably qualified and competent person or organisation.
Access Level
Description
0 – NORM
Normal
1 – USER
User
2 – SUPR
Supervisor
3 – ENGR
Engineer
This document is only intended to be a guideline and is not applicable to all
situations. Information subject to full disclaimer at www.fike.com/disclaimer
RDU-A-200
Quick Start Guide
Shift LED
Key Operation
OFF
NO
ON
YES
SLOW FLASH
NO
FAST FLASH
NO

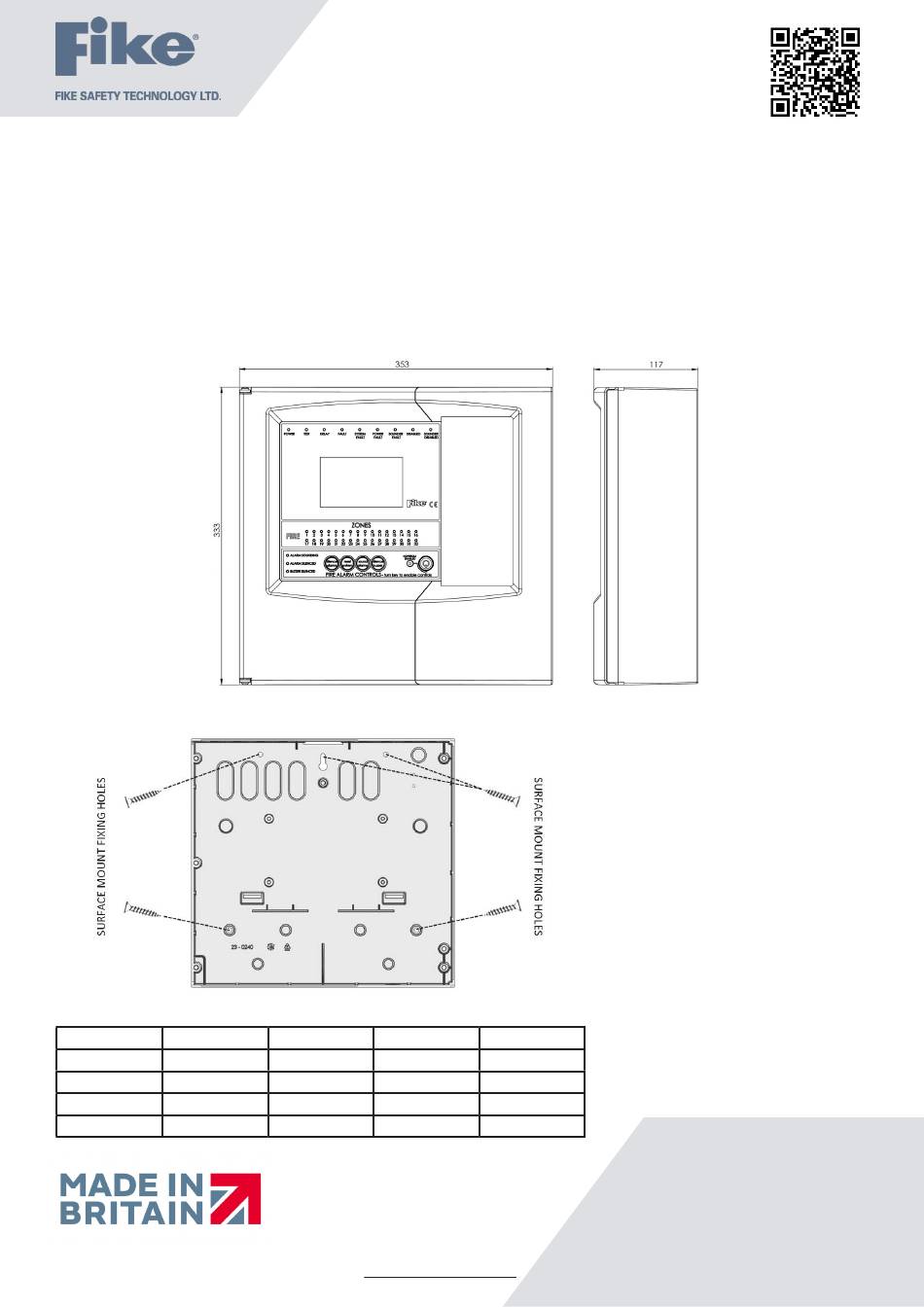

Surface Mounting
The three mounting holes should be used to se-
cure the cabinet to a solid wall using suitable
screws of at least 50mm in length. Ensure that a
minimum gap of 50mm is left between the sides
of the back box and any wall or projection (such
as another box).
Default code
N/A
8737
7877
3647
Document No. 26-1773-1
http://www.fike.co.uk/
resource-downloads/addressable/
Subject to change
