IMPORTANT
Carefully remove all the parts from the carton and place them
individually on a soft cloth to prevent scratches or other damage.
Carefully and strictly follow these assembly instructions
to ensure a completed product as designed.
This product is made of aluminum. Do not use power tools
above 8 volts to assemble and only tighten bolts until snug.
Over tightening can damage the aluminum.
Part List
Hardware List
Hex Wrench
1 pc.
Small Hex Wrench
1 pc.
Tool(s) required for assembly: Level
home
6660-80

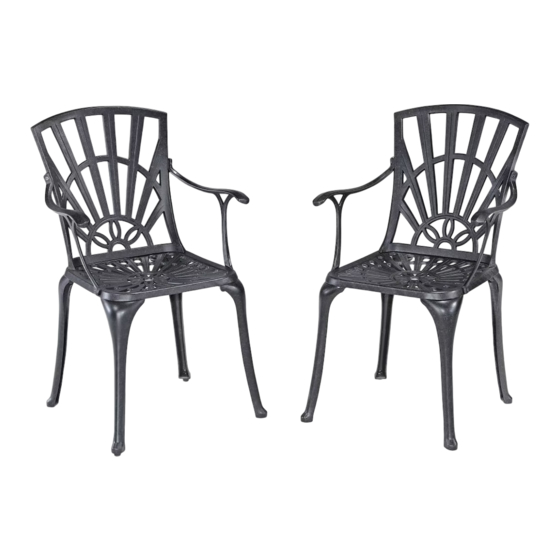

Arm Chair
A.
Back
1 pc.
B.
Seat
1 pc.
Flat Washer
4 pcs. (+1 extra)
Flat Washer (large)
10 pcs. (+1 extra)
styles Customer Service: www.homestylesfurniture.com,
servicedesk@homestylesfurniture.com,
C.
Arm
1 pc.
M6x15
Spring Washer
Head Cap Bolt (short)
4 pcs. (+1 extra)
4 pcs. (+1 extra)
M8x20
Spring Washer (large)
Head Cap Bolt
10 pcs. (+1 extra)
8 pcs. (+1 extra)
888-680-7460
D.
Arm
1 pc.
E.
Leg
4 pcs.
M8x30
Head Cap Bolt (long)
2 pcs. (+1 extra)
Advertisement
Related Manuals for Homestyles OutdoorPatio 6660-80
Summary of Contents for Homestyles OutdoorPatio 6660-80
- Page 1 6660-80 Arm Chair IMPORTANT Carefully remove all the parts from the carton and place them individually on a soft cloth to prevent scratches or other damage. Carefully and strictly follow these assembly instructions to ensure a completed product as designed. This product is made of aluminum.
- Page 2 Assembly Instructions 2/3 IMPORTANT Ÿ Use a soft cloth between these parts and the floor. Ÿ Do not use power tools above 8 volts to assemble. Ÿ Do not tighten all the bolts until each part is properly assembled. Ÿ The unit must be level to work properly.
- Page 3 Assembly Instructions 3/3 Flat Washer Spring Washer Head Cap Bolt (short) STEP 3 Figure 2 Turn unit to its upright position. Attach Arms (C) and (D) to unit with Flat Washers, Spring Washers and Head Cap Bolts (short), tightening bolts only halfway. Tighten all Head Cap Bolts used in Steps 1, 2 and 3.
- Page 4 CARE INSTRUCTIONS NEVER NEVER use glass cleaners on allow liquids to remain on furniture. finished furniture. Ammonia Absorption causes parts to warp chemically attacks the finish. and split and finishes to delaminate. Do not use power tools Do not place Do not write above 8 volts to assemble.
