IMPORTANT
Carefully remove all the parts from the carton and place them
individually on a soft cloth to prevent scratches or other damage.
Carefully and strictly follow these assembly instructions
to ensure a completed product as designed.
This product is made of aluminum. Do not use power tools
above 8 volts to assemble and only tighten bolts until snug.
Over tightening can damage the aluminum.
Part List
A.
Back
1 pc.
B.
Seat
1 pc.
Hardware List
M8x35
Wrench
Bolt
1 pc.
4 pcs. (+1 extra)
Hex Wrench
1 pc.
home
6661-53

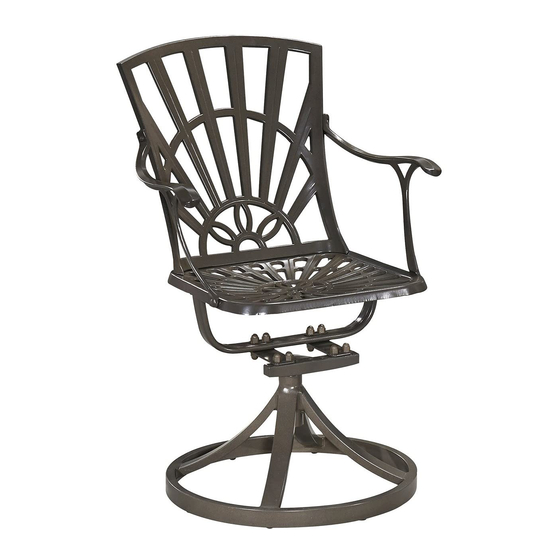

Swivel Arm Chair
Flat Washer (large)
4 pcs. (+1 extra)
Small Hex Wrench
Flat Washer
1 pc.
4 pcs. (+1 extra)
styles Customer Service: www.homestylesfurniture.com,
servicedesk@homestylesfurniture.com,
C.
Arm
1 pc.
E.
Base
1 pc.
Spring Washer (large)
Flat Washer (large)
6 pcs. (+1 extra)
2 pcs. (+1 extra)
Spring Washer
4 pcs. (+1 extra)
888-680-7460
D.
Arm
1 pc.
F.
Connector
1 pc.
Nut
4 pcs. (+1 extra)
M6x15
M8x30
Head Cap Bolt (long)
Head Cap Bolt (short)
4 pcs. (+1 extra)
2 pcs. (+1 extra)
Cap
8 pcs. (+1 extra)
