IMPORTANT
Carefully remove all the parts from the carton and place them
individually on a soft cloth to prevent scratches or other damage.
Carefully and strictly follow these assembly instructions
to ensure a completed product as designed.
This product is made of aluminum. Do not use power tools
above 8 volts to assemble and only tighten bolts until snug.
Over tightening can damage the aluminum.
Part List
Hardware List
Small
Hex Wrench
1 pc.
Tool(s) required for assembly: Level
home
6654-80

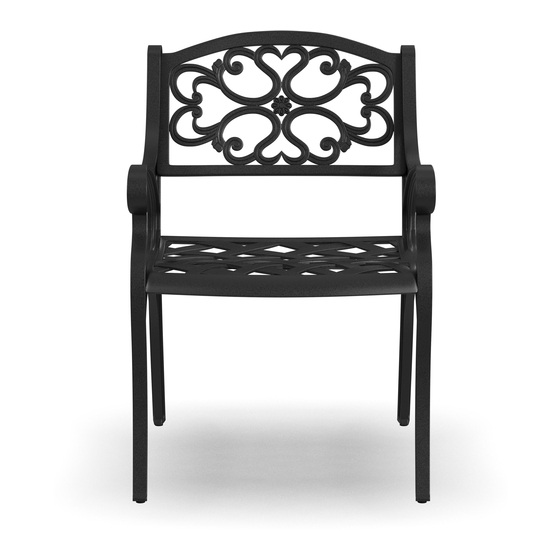

Arm Chair
A.
Back
1 pc.
B.
Seat
1 pc.
M6x20
Hex Wrench
Head Cap Bolt
1 pc.
8 pcs. (+1 extra)
styles Customer Service: www.homestylesfurniture.com,
servicedesk@homestylesfurniture.com,
C.
Side Frame
1 pc.
Spring Washer
Flat Washer
8 pcs. (+1 extra)
8 pcs. (+1 extra)
888-680-7460
D.
Side Frame
1 pc.
Cap
8 pcs. (+1 extra)
Advertisement
Table of Contents
Related Manuals for Homestyles 6654-80
Summary of Contents for Homestyles 6654-80
- Page 1 6654-80 Arm Chair IMPORTANT Carefully remove all the parts from the carton and place them individually on a soft cloth to prevent scratches or other damage. Carefully and strictly follow these assembly instructions to ensure a completed product as designed.
- Page 2 Assembly Instructions 2/3 IMPORTANT Ÿ Use a soft cloth between these parts and the floor. Ÿ Do not use power tools above 8 volts to assemble. Ÿ Do not tighten all the bolts until each part is properly assembled. Ÿ The unit must be level to work properly.
- Page 3 Assembly Instructions 3/3 STEP 3 Turn unit to its upright position. Level unit by adjusting the adjustable levelers on bottom of unit. (See Figure 2) Figure 2...
- Page 4 CARE INSTRUCTIONS NEVER NEVER use glass cleaners on allow liquids to remain on furniture. finished furniture. Ammonia Absorption causes parts to warp chemically attacks the finish. and split and finishes to delaminate. Do not use power tools Do not place Do not write above 8 volts to assemble.
