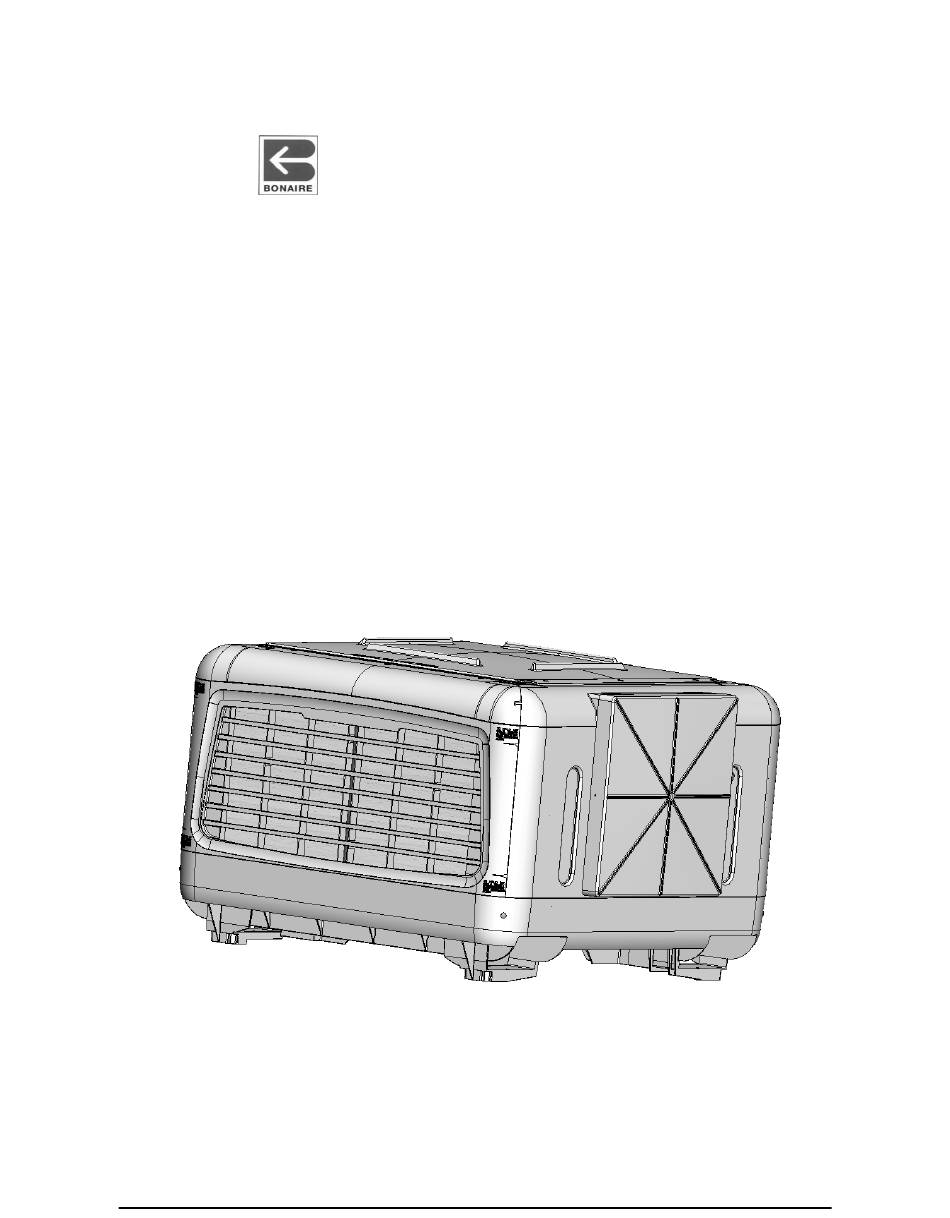

Owner's Manual
BONAIRE
®
Evaporative Air Conditioning
Installation Instructions
For help with installation or warranty issues call
1-800-939-2983 or www.bonaire-usa.com
For parts Visit our secure website www.bonairedurango.com
This product may qualify for rebates*
*
Check with your local agency
Please keep this important manual in a safe place. It is the owner's responsibility to
ensure that regular maintenance is carried out on this evaporative cooling product.
Failure to do so will void all guarantees beyond statutory and legal requirements.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 7000CFM and is the answer not in the manual?

Questions and answers

Related Manuals for BONAIRE 7000CFM

Summary of Contents for BONAIRE 7000CFM

  • Page 1 ® Evaporative Air Conditioning Installation Instructions For help with installation or warranty issues call 1-800-939-2983 or www.bonaire-usa.com For parts Visit our secure website www.bonairedurango.com This product may qualify for rebates* Check with your local agency Please keep this important manual in a safe place. It is the owner’s responsibility to ensure that regular maintenance is carried out on this evaporative cooling product.

  • Page 2: Table Of Contents

    NSTALLATION NSTRUCTIONS Contents INTRODUCTION…………………………………………………………………………….….3 UNIT LOCATION………………………………………………………………………………..6 UNIT INSTALLATION…………………………………………………………………………..7 UNIT INSTALLATION (SIDE DISCHARGE)………………………………………………..13 CHECK LIST…………………………………..………………………………………………..21 PROBLEM SOLVING……………………………………………………………………….…22 PARTS LIST…………………………………………………………………………………….23 MAINTENANCE………………………………………………………………………………...26 WARRANTY……………………………………………………………………………………..27 SERVICE………………………………………………………………………………………..29...

  • Page 3: Introduction

    NSTRUCTIONS 1.0 Introduction General Information Thank you for purchasing a quality Bonaire Evaporative Cooler. We care about your safety and would ask you to spend a few minutes reading these simple instructions before operating this product. Safety! Read carefully all of these instructions prior to operating the unit.
  • Page 4 NSTALLATION NSTRUCTIONS 1.0 Introduction Evaporative Cooling The principal of your unit is to introduce fresh air, which is washed through the filter pads to provide cool fresh air. The air is exhausted taking with it any heat loading on the home. Exhaust It is essential for successful operation of evaporative air-conditioning that there are sufficient exhaust openings in the area to be ventilated.
  • Page 5 1.2 Before Commencing  Packaging – check there is no damage before removing packaging. Damaged units should not be installed. Bonaire Customer Care Line should be contacted prior to installation. Careless transportation by installer will not be covered by warranty.

  • Page 6: Unit Location

    NSTALLATION NSTRUCTIONS 2.0 Unit location 2.1 Unit Location Check List  EPA - A correctly installed unit will perform to specification on sound pressure radiated noise. As an installer, you have a professional obligation to ensure that every practical and reasonable effort is made to install this product to best practice guidelines and ensure that any operational noise does not affect neighbours.

  • Page 7: Unit Installation

    NSTALLATION NSTRUCTIONS Unit Installation 3.1 Down Discharge installation The evaporative cooler will be delivered with the fan motor assembly installed in “down discharge” mode. See the image below. The air will be directed downwards when installed in this configuration. NOTE: This cooler is suitable for use with 17 ¾” and 19 ¾” duct sizes. Down discharge configuration...
  • Page 8 NSTALLATION NSTRUCTIONS Unit Installation 3.2 Electrical connections NOTE: Use hand tools when refitting the screws, tightening the screws with power tools can strip the screw holes. 3.2.1. Unscrew the thumb screws (transit screw) from the top of the grills. 3.2.2. Slide the removable grill upward and remove from the unit.
  • Page 9 NSTALLATION NSTRUCTIONS Unit Installation 3.2.3. To fit the electrical supply cable utilise the 7/8” hole in the panel. For electrical connections, use a Listed, liquid tight, nonmetallic flexible conduit connector, of suitable size for the panel conduit opening, and suitable for outdoor use. Secure the connector to the panel with locking nut.
  • Page 10 NSTALLATION NSTRUCTIONS Unit Installation...
  • Page 11 NSTALLATION NSTRUCTIONS Unit Installation 3.3 Water connections 3.3.1 Connect the Float valve to the water supply. Note the float valve and connections have been factory fitted requiring only water supply hose to be fitted to the external connection fitting at the corner of the tank /base as shown in the image below. Ensure all water connections are securely fastened to prevent leaks.
  • Page 12 NSTALLATION NSTRUCTIONS Unit Installation 3.3.2 Installation of the bleed off hose is required to prevent mineral deposits in the system. Adjust the bleed restrictor bracket to allow control of the bleed rate to suit local supply water conditions. Adjust the bleed off to approximately 2 ½ gallons / hour and adjust as necessary.

  • Page 13: Unit Installation (Side Discharge)

    NSTALLATION NSTRUCTIONS Unit Installation 3.4 Converting from Down Discharge to Side Discharge Installation NOTE: Handle the fan/venturi assembly with care, as the fan blade is not protected by the venturi once removed. The evaporative cooler has been designed to allow for the discharge configuration to be changed to “side discharge”...
  • Page 14 NSTALLATION NSTRUCTIONS Unit Installation e. Disconnect the motor and pump cables from control box plugs. Disconnect plugs Slide the lid out (be careful as the electrical box is attached to the underside of the lid) of the grill assemblies. Leave the side discharge panel in place. g.
  • Page 15 NSTALLATION NSTRUCTIONS Unit Installation h. Remove grill. Remove and retain the 2 screws that fasten the side discharge panel. Remove screw Remove screw With the retaining screws removed, lift the side discharge panel.
  • Page 16 NSTALLATION NSTRUCTIONS Unit Installation k. Lay the side discharge panel down onto a surface that will not damage the panel. Present the fan motor assembly to the side panel ensuring the flat section of the venturi is at the top, aligned with the top of the panel. Venturi flat section Panel...
  • Page 17 NSTALLATION NSTRUCTIONS Unit Installation n. Ensure motor arms are securely located by the “hooks” on the side panel motor arm supports (4 places). NOTE: Fan motor arms are on the “hook” side of the side panel motor arm support (4 places) as shown in the image below.
  • Page 18 NSTALLATION NSTRUCTIONS Unit Installation p. Refit side discharge panel screws (2 places) to secure panel to base / tank. Refit Refit screw screw q. Fit the cap to the “down discharge” opening by aligning the 4 projections on cap with the 4 notches on the “down discharge”...
  • Page 19 NSTALLATION NSTRUCTIONS Unit Installation r. The cap should fit squarely on the base as shown in the image below. s. Fit side grill into place. Slide the lid back into place.
  • Page 20 NSTALLATION NSTRUCTIONS Unit Installation u. Reconnect the motor and pump cables to electrical box plugs. Reconnect plugs v. Refer section 3.2.5 regarding wiring to electrical supply. WARNING: - Electrical connections should be performed by a qualified electrician so that all electrical wiring conforms to local standards. w.

  • Page 21: Check List

    NSTALLATION NSTRUCTIONS Checklist Check List Use this list to check the installation. Unit □ All equipment ordered by the customer is installed. □ The unit is level and secure. □ The water supply line has been flushed to clear swarf and debris and is free of leaks. □...

  • Page 22: Problem Solving

    High mineral content in on pads pad. water supply b. Increase bleed rate. More regular maintenance may be required. ANY FURTHER PROBLEMS PLEASE CONTACT YOUR BONAIRE CUSTOMER CARE LINE ON 1-800-939-2983...

  • Page 23: Parts List

    NSTALLATION NSTRUCTIONS Parts list Replacement Parts List – 7000cfm Part # Item Description 0141479 THUMB SCREW SBB - SS 6080101PG TANK CP2 PIGEON GREY 6080102PG LID CP2 PIGEON GREY 6080108 WATER DISTRIBUTER SLOPE ASSEM 6080114 CAP SD/DD P GREY 425D...
  • Page 24 NSTALLATION NSTRUCTIONS Parts list Replacement Parts List – 5000cfm Part # Item Description 0141479 THUMB SCREW SBB - SS 6080101PG TANK CP2 PIGEON GREY 6080102PG LID CP2 PIGEON GREY 6080108 WATER DISTRIBUTER SLOPE ASSEM 6080114 CAP SD/DD P GREY 425D 6080118 VENTURI 425mm 6080117...
  • Page 25 NSTALLATION NSTRUCTIONS Parts list THUMB SCREW To Order Parts www.bonairedurango.com...

  • Page 26: Maintenance

    NSTALLATION NSTRUCTIONS Maintenance Spring Start-up  Clean pump. Clean the pump once a year at start up. Check the pump spout for blockage. Ensure the impellor / shaft turn easily. If any hose connections have been removed during the pump cleaning process make sure that hoses and clamps are reconnected.

  • Page 27: Warranty

    NSTALLATION NSTRUCTIONS Warranty Statement on Product Warranty (U.S.A.) Warranty Subject to the Conditions and Exclusions, Climate Technologies Pty Ltd provides the original purchaser with the following warranty: Climate Technologies Pty Ltd warrants this appliance for a (2) two year period (parts only) from the date of purchase.
  • Page 28 NSTALLATION NSTRUCTIONS Warranty If there is no certificate of compliance for plumbing or electrical work, Climate Technologies Pty Ltd reserves the right to refuse warranty on non-compliant installations. k) No responsibility will be accepted for outside elements such as pests, animals, pets and vermin that may cause damage to the unit.

  • Page 29: Service

    NSTALLATION NSTRUCTIONS Service 6.0 Service Review A qualified service technician should conduct any service work carried out on this ducted Evaporative cooling product. It is important that periodical service is carried out on the product to ensure the customer receives the efficiency benefits the product provides. Only an authorised Climate Technologies service provider can carry out warranty service.
  • Page 30 NSTALLATION NSTRUCTIONS NOTES...
  • Page 31 NSTALLATION NSTRUCTIONS NOTES...
  • Page 32 Manufactured by Climate Technologies ABN 13 001 418 042 26 Nylex Avenue Salisbury, SA 5108 Australia www.bonairedurango.com 6082219B...
