Owner's Manual

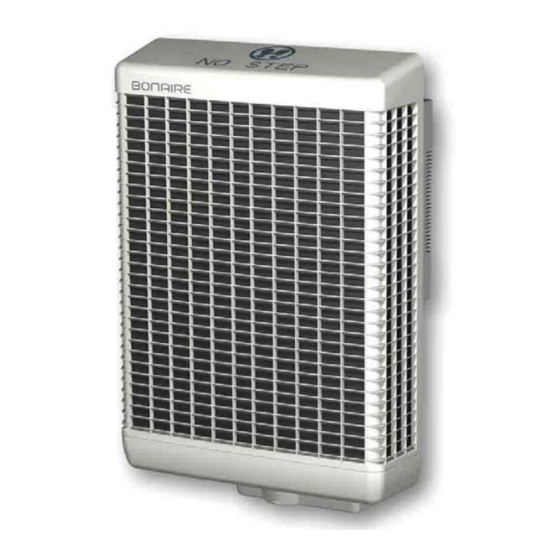

Durango Window Cooler
With Ionizer
Model WEAC628i
Please keep this important manual in a safe place. It is the owner's responsibility to
ensure that regular maintenance is carried out on this evaporative cooling product.
Failure to do so will void all guarantees beyond statutory and legal requirements.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for BONAIRE WEAC628i
Summary of Contents for BONAIRE WEAC628i
- Page 1 Owner’s Manual Durango Window Cooler With Ionizer Model WEAC628i Please keep this important manual in a safe place. It is the owner’s responsibility to ensure that regular maintenance is carried out on this evaporative cooling product. Failure to do so will void all guarantees beyond statutory and legal requirements.
-
Page 2: Introduction
OOLER Introduction Introduction GENERAL INFORMATION. Thank you for purchasing a quality Bonaire Evaporative Cooler. We care about your safety and would ask you to spend a few minutes reading these simple instructions before installing or operating this product. Safety ! Read carefully all of these instructions prior to installing and operating the unit. -
Page 3: Table Of Contents
ONAIRE INDOW OOLER Table of Contents Introduction......................... 2 Operation Instructions ....................4 ..........................4 ENERAL Introduction ..........................4 Unit Operation ........................4 Bleed Off ..........................5 .........................6 OOLER PERATION Before Starting ........................6 Operating the unit ........................6 Installation........................7 ....................7 NSTALLATION EQUIREMENTS ...........................7 NSTALLATION External Fixing Of the Unit ....................7 Internal Fixing of the Unit ....................9... -
Page 4: Operation Instructions
ONAIRE INDOW OOLER Operation Instructions Operation Instructions ENERAL Introduction Your evaporative air conditioner is engineered to meet the rigors of harsh environments. Used and maintained in accordance with this manual, it will provide you with years of quiet, cool and environmentally friendly operation. -
Page 5: Bleed Off
ONAIRE INDOW OOLER Operation Instructions Bleed Off The bleed off rate is factory preset and is not adjustable without direction of the manufacturer. It is critical to the life of the product that the bleed off function is not restricted in way as this may void unit warranty and will cause damage to your filters and cooler. -
Page 6: Cooler Operation
ONAIRE INDOW OOLER Operation Instructions OOLER PERATION Before Starting • Always ensure that there is another open window or door through which the air can exhaust to other parts of the house. Refer page 4 correct operation and ventilation. • Ensure that the filters are kept clean. -
Page 7: Installation
ONAIRE INDOW OOLER Installation Installation NSTALLATION EQUIREMENTS Tools Drill (Power or Cordless) Adjustable Wrench. Phillips Head Screw Driver Drills for drilling pilot holes into window frame 1/8" (3.2mm) Drill - or appropriate for size of screw used. ¾” Philips Head Screws for affixing Window Infill Panel Materials Required (Not supplied) Silicone for sealing Window Infill Panel Length of 6mm (¼") copper or plastic tubing... - Page 8 ONAIRE INDOW OOLER Installation • Ensure that the unit is installed level in the vertical and horizontal positions as illustrated, prior to fixing the cooler. • Use the two ‘Wallmate’ screws provided to fix the cooler to the outside of the house if a ‘stucco-type’...
-
Page 9: Internal Fixing Of The Unit
ONAIRE INDOW OOLER Installation Internal Fixing of the Unit • IT IS MANDATORY THAT THE METAL FIXING BRACKETS SUPPLIED ARE FITTED TO ENSURE A SECURE INSTALLATION. Utilise the 2 fixing brackets and 4 screws provided as shown in the diagram to ensure the unit is adequately locked into position. -
Page 10: Water Connection
ONAIRE INDOW OOLER Installation Water Connection Install a sillcock and water valve (not supplied) to the faucet closest to the cooler and attach water supply line between cooler and water valve. The overflow is factory fitted. The bleed hose protruding through the overflow fitting SHOULD bleed water during normal operation at a rate between 6 –... -
Page 11: Maintenance
ONAIRE INDOW OOLER Maintenance Maintenance Before commencing any maintenance work on your unit, ensure it is disconnected from the power supply. Note: It is essential that your evaporative air conditioner is maintained in accordance with this manual. Failure to do so will affect the life of the product and reduce the level of efficiency. THIS MANUAL CONTAINS A 5 YEAR MAINTENANCE PLANNER TO USE IN CONJUNCTION WITH THESE INSTRUCTIONS. -
Page 12: General
ONAIRE INDOW OOLER Maintenance ENERAL Filter Pads ® Visually check CELdek pads for damage or blockage. Gently hose down pads from both sides to remove any build up of salts, dust and pollen. In dusty areas more regular cleaning is recommended. -
Page 13: Bleed Off
ONAIRE INDOW OOLER Maintenance Bleed Off The bleed off should be checked to ensure it runs continuously and that there is no build up of mineral deposits in or on your air conditioner. White deposits indicate high mineral content and the bleed off system should be checked. - Page 14 ONAIRE INDOW OOLER Maintenance 5 Year Maintenance Planner Year Year Year Year Year Check quality of filters Check fan & pump PRESEASON Fill unit with water CHECK Start unit Check bleed-off system Check and clean filters Drain, clean and refill water tray FIRST Check bleed-off system MIDSEASON...
-
Page 15: Parts List
ONAIRE INDOW OOLER Parts List Parts List No Description Part Number Filter Retainer Clips 6280134SP Rear Filter Panel Assembly 6280103SP Filter Pad Set 6280116SP Motor Mounting Brackets 6282006SP Motor 6281601SP Fan Retaining Clip 6280804SP 6280806SP Control Knob 6280133SP Switch 6201609SP Capacitor 8.0 mf 9041888SP Float Valve Assembly... -
Page 16: Problem Solving
Increase the bleed rate – see pads page 13. More regular maintenance may be required. ANY FURTHER PROBLEMS PLEASE CONTACT YOUR TOLL FREE BONAIRE CUSTOMER CARE LINE ON 1 888 812 3496 and for parts call 800 895 0029 Page 16 WEAC628... -
Page 17: Optional Extras
ONAIRE INDOW OOLER Optional Extras Optional Extras Optional Winter Cover Instructions The optional winter cover has been design to provide you with a simple method to seal the unit from winter draughts. To INSTALL the optional winter cover: 1. Check the lines on the winter cover match the front grille for correct application. 2. -
Page 18: Warranty
ONAIRE INDOW OOLER Warranty Warranty Statement on Product Warranty (U.S.A.) Warranty Subject to the Conditions and Exclusions, Climate Technologies Pty Ltd provides the original purchaser with the following warranty: Climate Technologies Pty Ltd warrants this appliance for a 12 month period from the date of purchase. - Page 19 ONAIRE INDOW OOLER Warranty (k) No responsibility will be accepted for outside elements such as pests, animals, pets and vermin that may cause damage to the unit. (l) Harsh environmental situations such as salt air that may cause damage are not covered.
- Page 20 Manufactured by Climate Technologies Pty Ltd ABN 13 001 418 042 26 Nylex Avenue Salisbury, SA 5108 AUSTRALIA www.bonaire-usa.com Part No 6282215/B...
