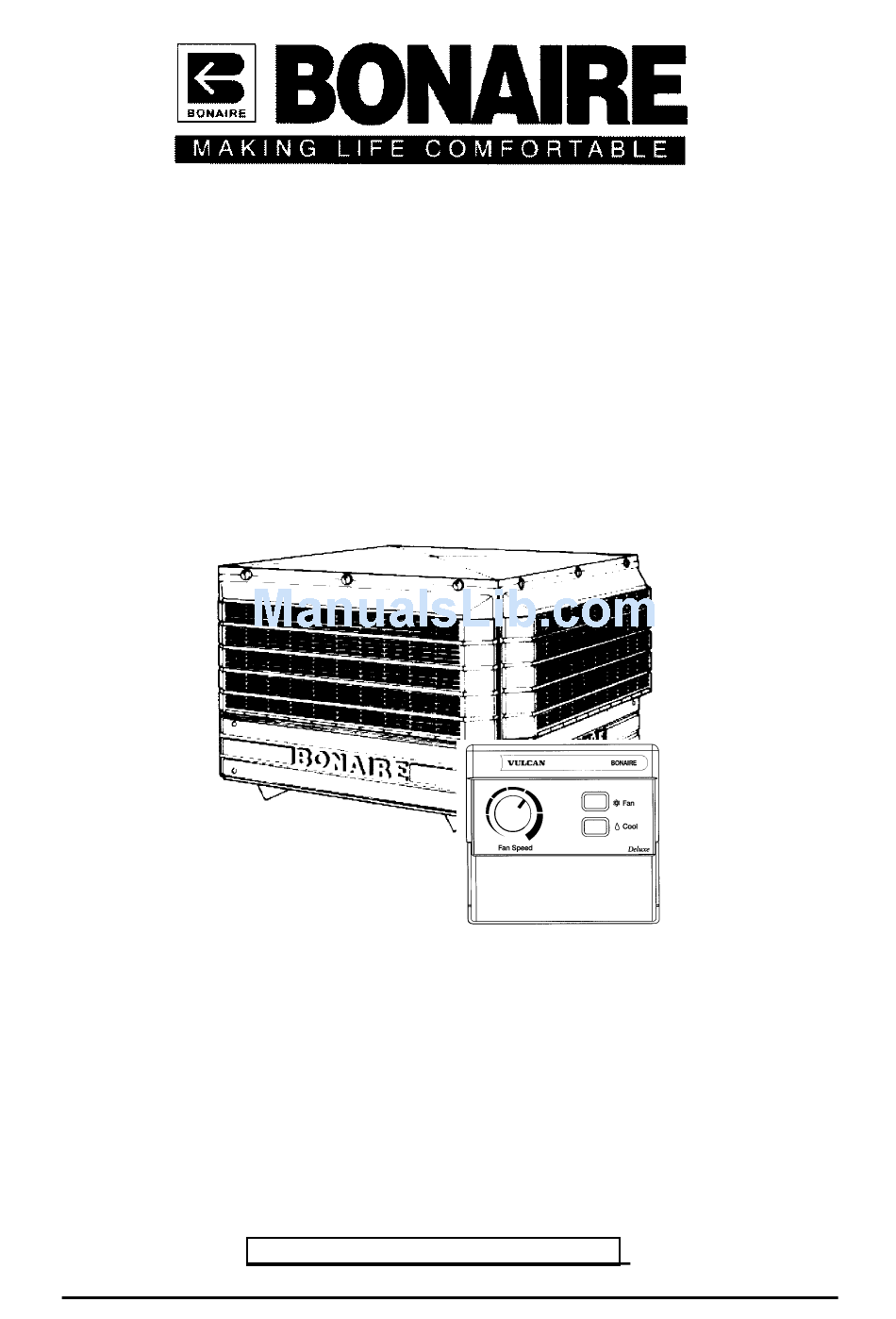

Page 1: Ducted Evaporative Air Conditioning
Please keep this important manual in a safe place. It is the owner’s responsibility to ensure that regular maintenance is carried out on this Ducted Evaporative Air Conditioner. Failure to do so will void all guarantees beyond statutory and legal requirements. www.climatetechnologies.com.au PNE2002 Series Control... -
Page 2: Introduction
Technologies, a 100% Australian owned company, it contains the latest advances in Fresh Air Conditioning technology in a stylish, attractive cabinet. Climate Technologies is constantly researching and developing improved product features and therefore reserves the right to change specifications without notice. E.&O.E. PNE2002 Series Control Page 2... -
Page 3: Table Of Contents
ATER ISTRIBUTION WARRANTY.....................12 ................... 12 ARRANTY TATEMENT Conditions And Exclusions .......................12 ..............13 ARRANTY EPLACEMENTS ARTS – Y ................13 ERIOD ARRANTY EARS ..................... 14 ROOF URCHASE ................14 EALER RODUCT NFORMATION SERVICE......................15 PNE2002 Series Control Page 3... -
Page 4: Ducted Evaporative Air Conditioning
Ceiling exhaust fans or ceiling vents should have a capacity equivalent to that of the air conditioner. MODEL MINIMUM EXHAUST AREA Medium 0.68m² to 1.48 m² Large 2.02 m² PNE2002 Series Control Page 4... -
Page 5: Bleed-Off
A dump valve can be fitted to a unit using the MANUAL control. There are no timer control functions available with this control. The dump valve solenoid is activated or deactivated when the pump operation is used. PNE2002 Series Control Page 5... -
Page 6: Operating The Controls
NOTE: Normally during the first 10 days of operation a slight odor will be present from the CELDEK filter pads. This 'new smell' is quite normal, and will quickly disappear as your unit is operated. PNE2002 Series Control Page 6... -
Page 7: Control Installation & Setup
Bleed off should be set at maximum. More formation of regular maintenance may be required. white deposits on pads Problem Solving THIS TROUBLE SHOOTING GUIDE IS A REFERENCE ONLY. FOR SERVICE OR WARRANTY REQUIREMENTS PLEASE REFER TO THE END OF THESE INSTRUCTIONS PNE2002 Series Control Page 7... -
Page 8: Commissioning Check List
AS3500. Consequential damage from high water pressure is not covered by warranty. Ductwork All ductwork is completed to plan, correctly supported and airtight, with no bend less than 1.5 x the ductwork diameter. PNE2002 Series Control Page 8... -
Page 9: Site
The need to open windows and doors for the correct operation of Fresh Air Conditioning The operation of the bleed or dumping system and it’s importance to operate all the time in ducted fresh air conditioning Maintenance requirements PNE2002 Series Control Page 9... -
Page 10: Ducted Evaporative Air Conditioner Maintenance
THE PUMP STRAINER). Drain the tank by removing the 40mm standpipe. It may be necessary to repeat this procedure if the tank is very dirty. Safety : Wet roofs are dangerous – Take Care When Draining Tank. PNE2002 Series Control Page 10... -
Page 11: Water Level / Float Valve
Check the pump spins freely and that the strainer is clean. Water Distribution Check the water distribution system for blockage. Check the delivery tube for kinks or holes. Check that the clamps are secure and in place. PNE2002 Series Control Page 11... -
Page 12: Warranty
This warranty must be read subject to that legislation and nothing in this warranty has the effect of excluding, restricting or modifying those rights. PNE2002 Series Control Page 12... -
Page 13: Warranty On Replacements Parts
RESIDENTIAL COMMERCIAL Parts Labour Parts Labour Aluminium Cabinet Structure Louvre Panels All Electrical Components ** All other components ** Filter pads are a consumable item and therefore are not covered by the above warranty periods. PNE2002 Series Control Page 13... -
Page 14: Proof Of Purchase
Please attach your proof of purchase here. Your receipt is your warranty and will be required to validate any warranty. Dealer / Product Information Dealer/Retailer: Dealer Address: Dealer Phone Number: Unit Model Number: Serial No: Date Installed: Installed by: PNE2002 Series Control Page 14... -
Page 15: Service
