Instruction manual
1. Do not remove the nozzle housing!
WARNING!
2. Hot surface! Do not touch the nozzle that is heating
up during operation!
3. Risk of injury due to moving printer parts.
Do not wear gloves or other things that can get tangled
during operation!

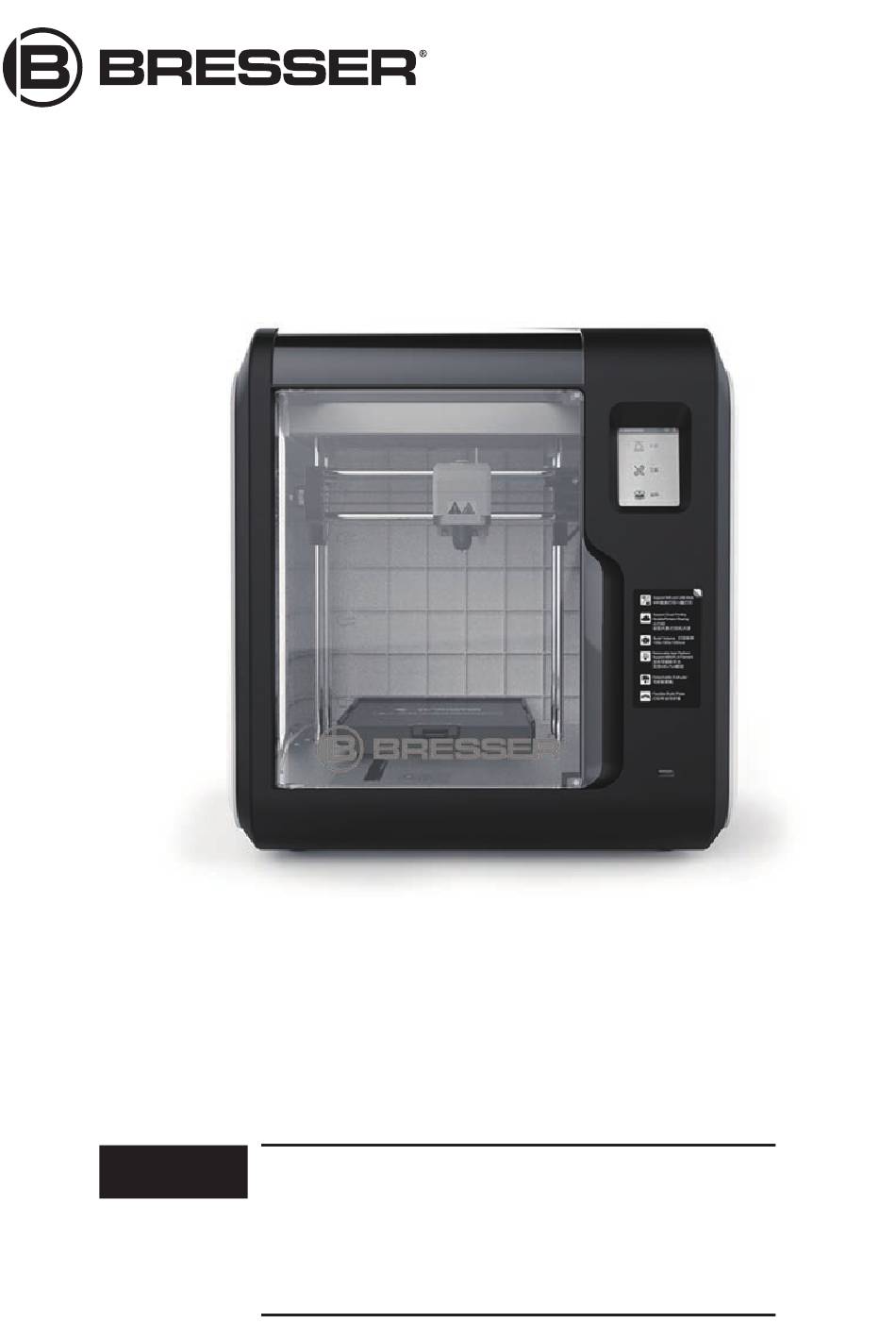

WIFI 3D Printer
1
Art. No. 2010100

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 2010100 and is the answer not in the manual?

Questions and answers

Summary of Contents for Bresser 2010100

  • Page 1 WIFI 3D Printer Art. No. 2010100 Instruction manual 1. Do not remove the nozzle housing! WARNING! 2. Hot surface! Do not touch the nozzle that is heating up during operation! 3. Risk of injury due to moving printer parts. Do not wear gloves or other things that can get tangled...
  • Page 2 Bresser GmbH has issued a “CE Declaration of Conformity” in accordance with applicable guidelines and corresponding standards. The full text of the CE Declaration of Conformity is available at the following internet address: www.bresser.de/download/2010100/CE/2010100_CE.pdf Bresser GmbH has issued a “UKCA Declaration of Conformity” in accordance with applicable guidelines and corresponding standards.
  • Page 3: Table Of Contents

    Table of Contents Info, Update/After Sales Support/Warranty ����������������������������� 02 General Safety Instructions ���������������������������������������������������� 03 Terms ������������������������������������������������������������������������������������� 05 Chapter 1: About the 3D Printer ���������������������������������������������� 06 1.1 Components Introduce ......................06 1.2 Reference ..........................07 Chapter 2: Operating �������������������������������������������������������������� 08 2.1 - Unpacking ..............................08 2.2 - Accessories ..............................10 2.3 - Interface ...............................11 2.3.1 - Build .............................11...
  • Page 4 • Service/warranty card • Article number and description • Date of purchase and dealer Contact details: E-Mail: service.3d-printer@bresser.de (preferred communication) Internet: www.bresser.de/c/en/service Telephone*: 00 800 – 63 43 7000 Service times: Monday to Friday (except for holidays) 9 a.m. to 4:00 p.m.
  • Page 5 Safety Notice PLEASE READ AND STRICTLY FOLLOW ALL THE SAFETY WARNINGS AND NOTICE BELOW� Work Environment Safety • You must always keep your workingspace clean. • Dont use the Wifi 3D-Printer near inflammable liquids, gas or dust. • Keep the W-LAN 3D printer out of reach of children and untrained persons. Electrical Safety •...
  • Page 6 BRESSER shall not be liable for errors contained herein for incidental consequential damages in connection with furnishing, performance or use of this material. • BRESSER shall not be liable for errors contained herein for incidental consequential dama- ges in connection with furnishing, performance or use of this material.
  • Page 7: Terms

    Terms The surface on which the WIFI 3D Printer builds an object. Build Plate The black tape that covers WIFI 3D Printer’s build plate so that the Build Tape object can stick to the build plate well. The three dimensional amount of space that an object will use once Build Volume it is completed.
  • Page 8: Components Introduce

    Chapter 1: About WIFI 3D Printer 1�1 Components Introduce 1. Filament guide tube 2. Filament guide tube joint 3. Extruder base 4. Cooling Fan 5. Removable nozzle 6. Extruder cables 7. Clip 8. Led light 9. Air guide 10. Front door 11.
  • Page 9: Reference

    1�2 Reference Name WIFI 3D Printer Number of Extruder 1, Removable Fused Filament Fabrication (FFF) Print Technology Screen Size 2,8° color IPS Touch Screen Build Volume 150x150x150mm Layer Resolution 0.1-0.4mm Build Accuracy ±0.2mm Positioning Accuracy Z axis 0.0025mm; XY axis 0.011mm Filament Diameter 1.75mm (±0.07mm) Nozzle Diameter...
  • Page 10: Chapter 2: Operating

    Chapter 2: Operating 2�1 Unpacking The People's The People's Insuranc e Compan Insuranc e Compan y of China y of China KEEP DRY KEEP DRY HANDL E HAND LE WITH CARE WITH CARE FRAGI LE FRAGI LE FR AG HA ND CA RE WI TH DR Y...
  • Page 11 5. Plug the power cable into the input on the back and turn on the power switch, the touch screen is turned on. Power Switch X: 20.00 Y: 45.00 Z: 36.00 Status Language Move Camera Calibration Home FilamentCheck < < <...
  • Page 12: Accessories

    2.2 Zubehör 2�2 Accessories Power Cable Spare Nozzle Filament 3D Printer HEPA Air Filter Screwdriver Pin Tool Allen Wrench Quickstart Manual Spatula Grease Warranty/ Service-Card...
  • Page 13: Tools

    2�3 Interface Menus introduction 2�3�1 Build 6.62GB Read the print file from: Print The local memory card (None) The USB stick Tools The Cloud Idle Back: Back to upper interface Filament 1. Tap [Print] 2. Choose the read path of the print file File list. Select all Ship-PLA.gx Ship-PLA.gx...
  • Page 14 File details: Including file picture, time needed, 20mm_Box-P... filament needed. 0 10 Build: To begin printing the file. Copy: To copy the files to the local memorycard from the USB stick� Delete: To delete the print file. Print Interface Cancel: To cancel the print job� 20mm_Box-PLA.gx Pause/Resume: To suspend or resume the print job�...
  • Page 15: Network

    Network: To connect printer to your PC or internet� Preheat: To preheat the extruder and build plate� Setting: To implement relevant function setups� About: Information about the printer� 2�3�2�1 Network WIFI W-LAN BRESSER WIFI Hotspot Choose network Tel-Com_de TP-LINK_EDC2 ,...
  • Page 16 Hotspot WIFI Hotspot Set WIFI-Hotspot SSID: WIFI Hotspot SSID: Password: Password: Setup hotspot Cloud Ethernet Save To set your printer as a WLAN hotspot. Turn on/off the WLAN hotspot� Hotspot setting: To set the hotspot name and password� Input hotspot name with numbers, characters and symbols� Tap to save the name and password.
  • Page 17 Cloud-Connection The 3D printer is compatible with multiple cloud systems. The FlashCloud is recommended. PolarCloud Account: FlashCloud WIFI Hotspot PIN: PolarCloud Cloud Ethernet Save To turn on/off the cloud connection. Before connect to cloud, please make sure you have connect internet successfully. Login E-mail Password...
  • Page 18 FlashCloud Start My Printer Add printer The current printer is empty. Please add a printer Name Register Code Type State My Printer BRESSER ABCDEF Adventorer 3 Idle My Model My Job Model Library 4. Add printer completed.. FlashCloud Start User...
  • Page 19 FlashCloud Start Print para Edit model BRESSER My Printer Move Rotate Scale My Model -150 My Job : Model Library -150 : -150 : 6. In the drop down menu of the printer‘s name, you can choose the printer which runs this mission.
  • Page 20 2�3�2�2 Preheat setting Extruder ℃ Network Preheat Plattform ℃ Settings About Start ON/OFF: Turn ON/OFF the extruder or platform preheat; symbol, you could set preheat temperature; Long press symbol, set preheat temperature rapidly; Extruder/Platform preheat interface Extruder Extruder /220℃ ℃ Plattform /100℃...
  • Page 21 2�3�2�3 Settings Network Preheat Status Language Camera Move Settings About Calibration Home FilamentCheck < < < < 1/ 3 2 / 3 Menu settings Status Language Status Calibrate Buzzer Factory Reset Home Home Move Camera FilamentCheck Buzzer FilamentCheck Update Update Factory Reset Factory Reset <...
  • Page 22 Language Status Language Calibration Home < < < < < < 1/ 3 Choose the target language. Calibration Click the arrow to adjust To calibrate the initial distance the nozzle so that it just between extruderand platform. touches the platform After homing completed, slide 0.00 Status...
  • Page 23 Manual: To manually adjust the X: 20.00 Y: 45.00 Z: 36.00 positions of extruder and build plate� Move Camera Extruder moves to the right Extruder moves to the left. Build plate moves to the front. FilamentCheck Build plate moves to the back. <...
  • Page 24: Setting

    Ready! Reset Reset to factory Buzzer Factory Reset Clear internal memory settings completely Update < < Start 3/ 3 Factory Setting: Delete all data in internal memory, return the printer to factory setting� Buzzer: To turn on/off the buzzer� Update: To update printer firmware. 2�3�2�4 About Construction volume: Device Type:...
  • Page 25 2�3�3 Tools /220℃ /220℃ /220℃ Input Extruder heating on.. Preheating complete. Press ok when the new charging commencing... filament comes out. Output Cancel Load •The extruder is heated up to 220°C. •After heat completed, insert the filament into the extruder at an upright angle until some resistance is sensed (as the filament is pushed through the feeding wheel).
  • Page 26 2.4 Druck 2�4 Print Plug the power cable into the input on the right side and turn on the power switch, the touch screen is turned on. Power Switch 2�4�1 Load Filament 1. Open the filament cover, insert the filament into the filament intake, push filament into the feeding wheel until some resistance is sensed.
  • Page 27: Filament

    Print /220℃ Input Heating Extruder... Tools Output Filament Cancel 2. Tap [Filament]--Tap [Load]--After Load completed--Tap [OK] /220℃ /220℃ Preheat ready, Press ok, when the new colour Start charging... appears 3. Load completed when you see filament come out of extruder, Tap [OK]. Put the spool of filament on the spool holder, close the filament cover.
  • Page 28: 2.4.2 Model File Transfer

    Method 1: WiFi Connection WIFI Hotspot Network Preheat Settings About Cloud Ethernet 1. Tap [Tools]--Tap [Network]--Tap [WIFI] W-LAN W-LAN Choose network BRESSER BRESSER Choose network Tel-Com_de Tel-Com_de TP-LINK_EDC2 TP-LINK_EDC2 , QS_1234 QS_1234 < < < < 2. Choose a network and input the password.
  • Page 29 About Cloud Ethernet FlashCloud PolarCloud Account: Printer name: BRESSER PIN: Registration code: ABCDEF Save 1. Turn on the WiFi or Ethernet connection, connect the printer to internet successfully. 2. Tap[Tools]-Tap[Network]-Tap[Cloud] on the printer; 3. Turn on the Cloud Connection function; 4. Register your cloud account and set your settings on https://cloud.sz3dp.com with the registration code on printer‘s touch screen, or register your...
  • Page 30: Print

    2�4�3 Print 6.62GB Print (None) Tools Idle Filament 1. Tap [Build], choose the file path: Printer internal memory, USB stick, Cloud. Ship-PLA.gx 20mm_Box- PLA.gx < < 2. Choose the model file, tap on its right to start printing; or tap model picture or model name to enterdetail page, tap to start printing.
  • Page 31 2�4�4 Model Remove Press Down Here And Draw Out 1. Take out the removable build plate. Notices When printing completed, extruder and build plate may still be hot, please start operating after cooling down! 2. Bend the build plate, the plate will produce certain deformation, seperating the plate away from the bottom of model (Please use a scraper to assist removing when model is too small or big).
  • Page 32: Replace Filament

    2�4�5 Replace Filament /220℃ Input Extruder heating on... Output Save 1. Tap [Filament]--Tap [Change], extruder will start preheating. 3. Insert new filament into the filament intake and 2. Pull out the filament as the picture push the filament into the feeding wheel until showed above.
  • Page 33: The Guide Of Using Camera

    2�5 The Guide of Using Camera Camera User Manual Camera and USB Disk use the same interface, so the use of WIFI 3D Printer‘s camera is different from that of other models. The use of WIFI 3D Printer‘s camera and the use of WIFI 3D Printer‘s USB Disk are incompatible (that is, only one (camera or USB Disk) can be used in the same time).
  • Page 34 2�5�2� PolarCloud camera use 1. Register Polar cloud account Enter www.polar3D.com web- site to register account. 2. Find Polar cloud pin code (1). After registering polar cloud and log in polar cloud webiste, click the upper right arrow, click [Settings] Location Biography Website URL...
  • Page 35 3. Connect WIFI 3D Printer to the internet. Choose the proper connecting way in the Net- work interface (the connecting way consults pagexx ). 4. Connect WIFI 3D Printer to the Polar cloud. PolarCloud PolarCloud Switch Account: Enter the cloud connection interface (click Tools-NetworkCloud), turn on the Polar cloud switch (After the Polar cloud is turned on, PIN: the switch will change in to green).
  • Page 36 2�5�3� The switching can be controlled through the Cloud 1. Connect to Polar Cloud The user can turn on or turn off the camera through Polar Cloud. Click Tools-> Communication -> Cloud Connect -> Polar Cloud, enter the settings page of Polar Cloud, click the input boxes of account number and PIN, enter the account number and PIN, click the “Start”...
  • Page 37 Location Biography Website URL http://www.example.com/profile Email +ADD Email PIN Code XXXX (2). Find PIN Code on the bottom of the page, the display numbers is PIN code 2. Open or close the camera through the Cloud. (1). After switching on the camera funcition, click camera image on the front page to enter the interface like this, click the COMMANDS button pointed by the arrow.
  • Page 38 Notices a. If PolarCloud is in an intranet (that is, the printer and PC connect to the same router), the video is shown, and the state of printing can be displayed in real time. If PolarCloud is in an extranet, the pictures are shown (in case of printing, a picture is sent per 20s; in case of not working, a picture is sent per 60s).
  • Page 39: Chapter 3: Q&A

    Chapter 3: Q&A Q1: How to solve if the nozzle is clogged? Method 1: Tap [Preheat], heat up the extruder to 240°C, after heating completed, press the air tube joint and pull out the filament guide tube. Check to see whether the filament is bended or filament tip is not smooth, cut filament tip smooth and flat, install the guide tube and filament back, Tap [Load] .
  • Page 40 4. Tap[OK], printer will memorize current calibration position and start homing automatically. Q9: Can we use other brand filament which is not produced by BRESSER ?WIFI 3D Printer support normal ABS and PLA filament but different brand filament has different ingre- dients�...
  • Page 41 Q14: Is the ABS printing safe? ABS filament will give off certain poisonous gas when heated up, please put the printer in well ventilated condition when printing ABS. We suggest printing non-toxic PLA filament when printer is used in children activity places. Q15: How to solve if printing result has edge warp? Method1: Heating up the platform can solve or minimize the problem by increasing adhesion between platform and model.
  • Page 42: Chapter 4: Support And Service

    • Service/warranty card • Article number and description • Date of purchase and dealer Contact details: E-Mail: service.3d-printer@bresser.de (preferred communication channel) Internet: www.bresser.de/c/en/service Telephone*: 00 800 – 63 43 7000 Service hours: Monday to Friday (except for holidays) 9:00 a.m. to 4:00 p.m.
  • Page 44 Bresser GmbH Gutenbergstr. 2 • DE-46414 Rhede Deutschland www.bresser.de • service@bresser.de Errors and technical changes reserved. Manual_2010100_WIFI-3D-Printer_en_BRESSER_v032020...
